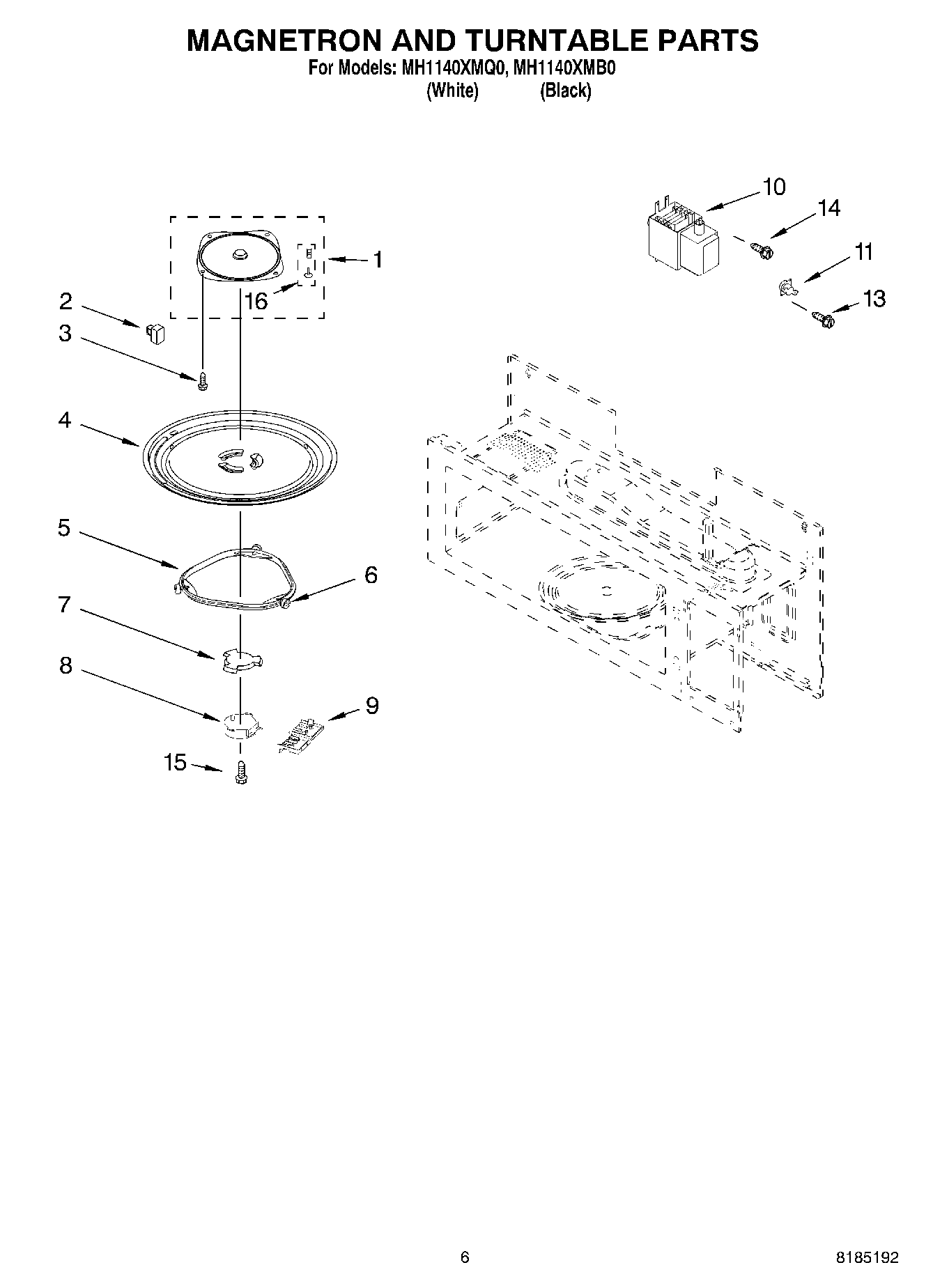

MH1140XMB0 05 – MAGNETRON AND TURNTABLE PARTS

Products

Position	Product
1	Cover, Inlet
2	Cover (4)
3	Nail, Plastic
4	4393799 Whirlpool Microwave Glass Tray
5	W11252182 Whirlpool Glass Tray Support
6	Wheel, Plastic
7	W10435116 Whirlpool Microwave Turntable Roller Drive Coupling
8	W10642989 Whirlpool Microwave Oven Turntable Motor
9	Cover, Terminal
10	W10844213 Whirlpool Microwave Magnetron
11	Thermostat
13	Screw
14	WP8181660 Whirlpool Screw
15	Screw
16	Bushing, Nail
