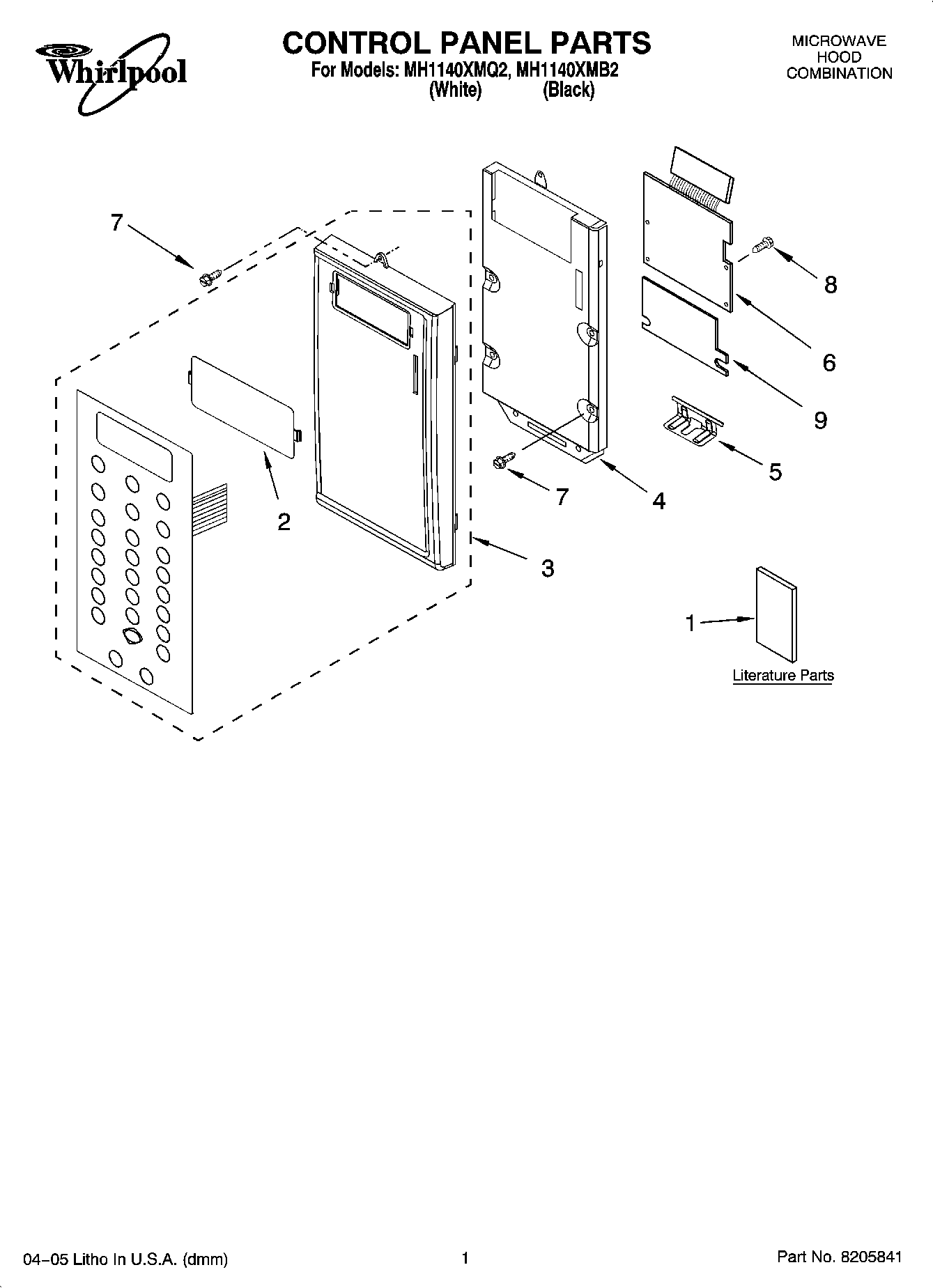

MH1140XMB2 01 – CONTROL PANEL PARTS

MH1140XMB2 01 – CONTROL PANEL PARTS

Written by

in

MH1140XMB2 01 – CONTROL PANEL PARTS

Products

PositionProduct
1Installation Instructions
1Tech Sheet
1Cook Guide Label
1Use & Care Guide
2Lens
3Panel, Control (Black)
3Panel, Control (White)
4Bracket, Control
5Plate, Hinge
6PCB Assembly
7Screw
8Screw
9Foil, PCB
