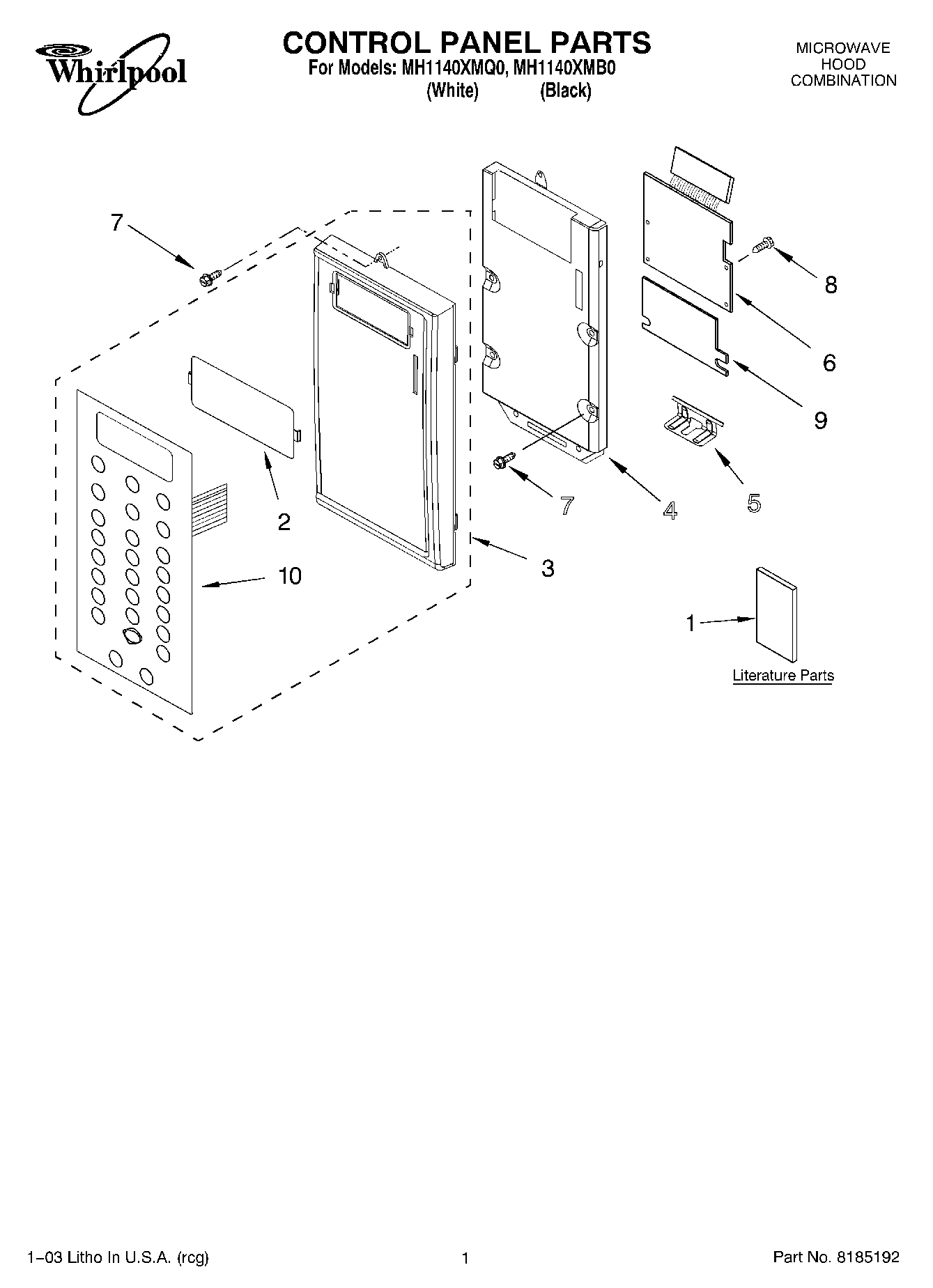

MH1140XMQ0 01 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	Literature Parts (Tech Sheet)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Cook Guide Label)
1	Literature Parts (Installation Instructions)
2	Lens
3	Panel, Control (Black)
3	Panel, Control (White)
4	Bracket, Control
5	Plate, Hinge
6	PCB Assembly
7	Screw
8	Screw
9	Foil, PCB
10	Switch, Membrane (White)
10	Switch, Membrane (Black)
