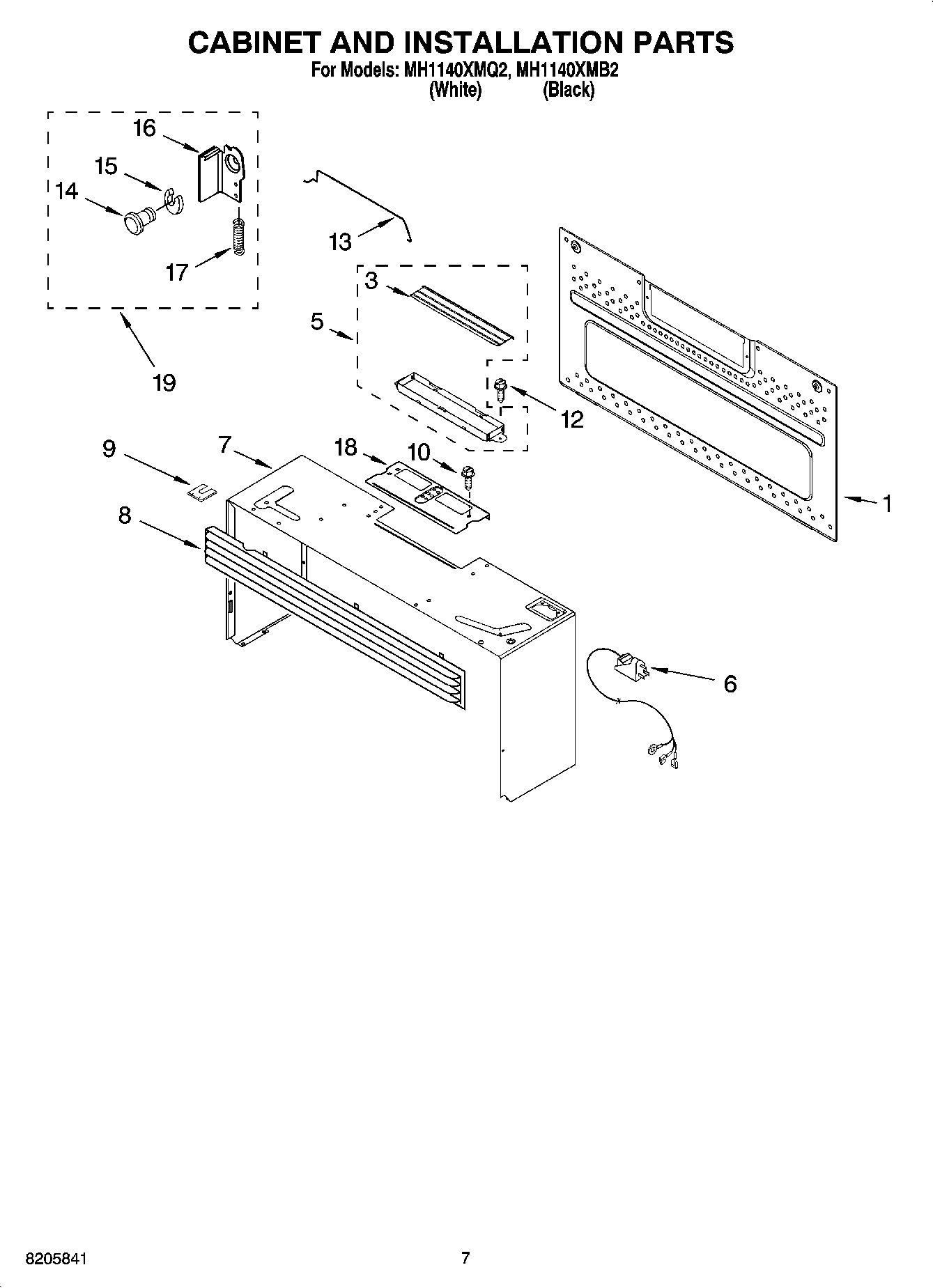

MH1140XMQ2 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
1	WP8206174 Whirlpool Microwave Mounting Bracket
3	W10843943 Whirlpool Microwave Vent Damper
6	W10708076 Whirlpool Microwave Power Cord
7	Case, Outer (Black)
7	Case, Outer (White)
8	8183948 Whirlpool Microwave Oven Vent Grille
8	8183851 Whirlpool Microwave Oven Vent Grille Black
9	8206334 Whirlpool Microwave Mounting Bracket
10	WP4393834 Whirlpool Microwave Screw
12	Screw
13	Rod
14	Latch, Pivot
15	E-Ring
17	Spring
18	Plate, Damper
19	Main Harness
19	Lamp Wire Assy.
19	H.V. Wire Assy.
19	WP8169704 Whirlpool Screw
19	Ground Wire Assy.
19	Wall Template
19	Hardware, Installation
19	Catch
19	Template, Upper
19	Miscellaneous
