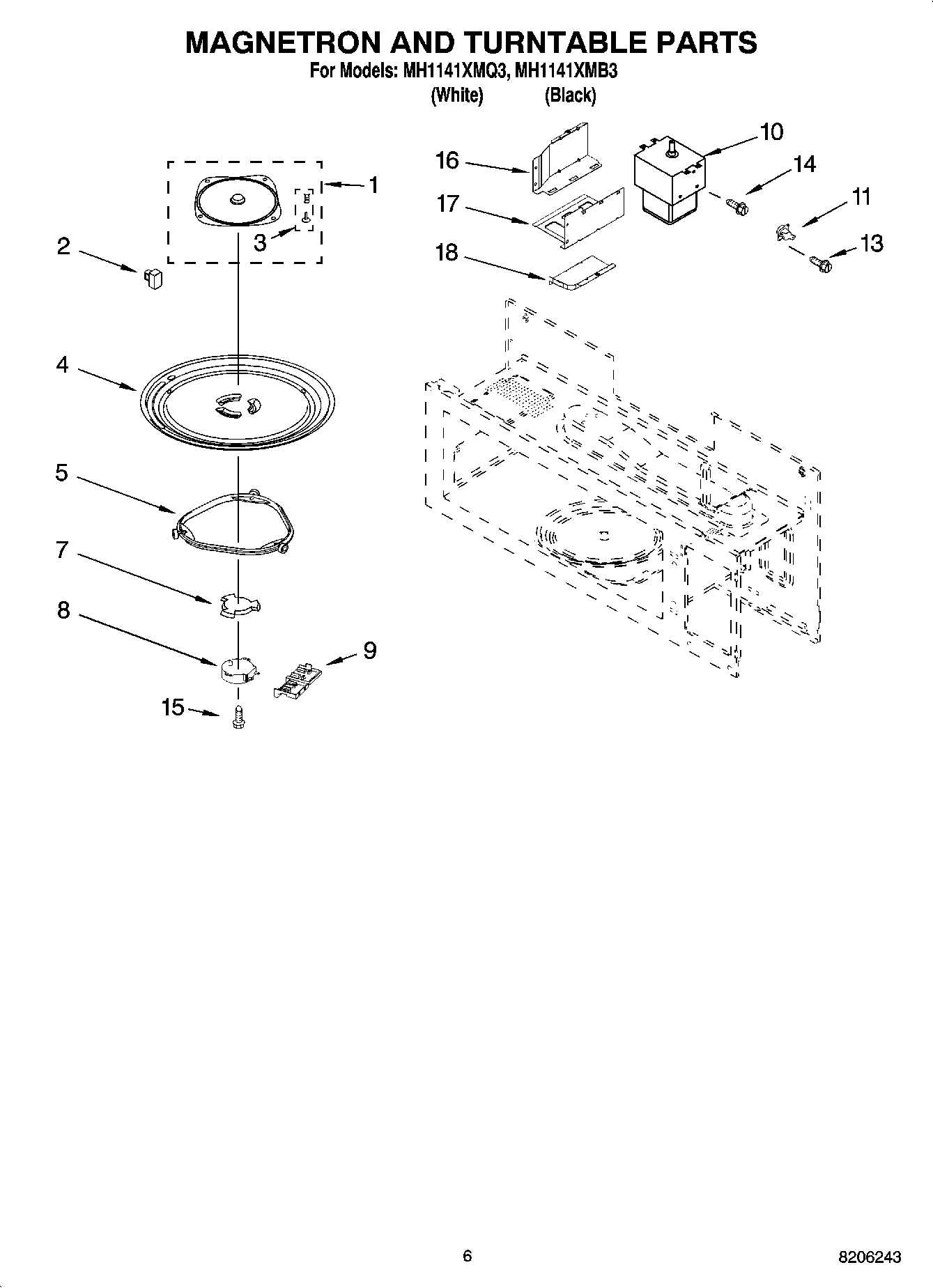

MH1141XMB3 05 – MAGNETRON AND TURNTABLE PARTS

Products

PositionProduct
1Cover, Inlet
2Cover (4)
3Nails/Bushings (4 of each)
44393799 Whirlpool Microwave Glass Tray
5W11252182 Whirlpool Glass Tray Support
7W10435116 Whirlpool Microwave Turntable Roller Drive Coupling
8W10642989 Whirlpool Microwave Oven Turntable Motor
9Cover, Terminal
10W10844213 Whirlpool Microwave Magnetron
11Thermostat
13Screw
14WP8181660 Whirlpool Screw
15Screw
16Left Block, Magnetron
17Middle Block, Magnetron
18Right Block, Magnetron
