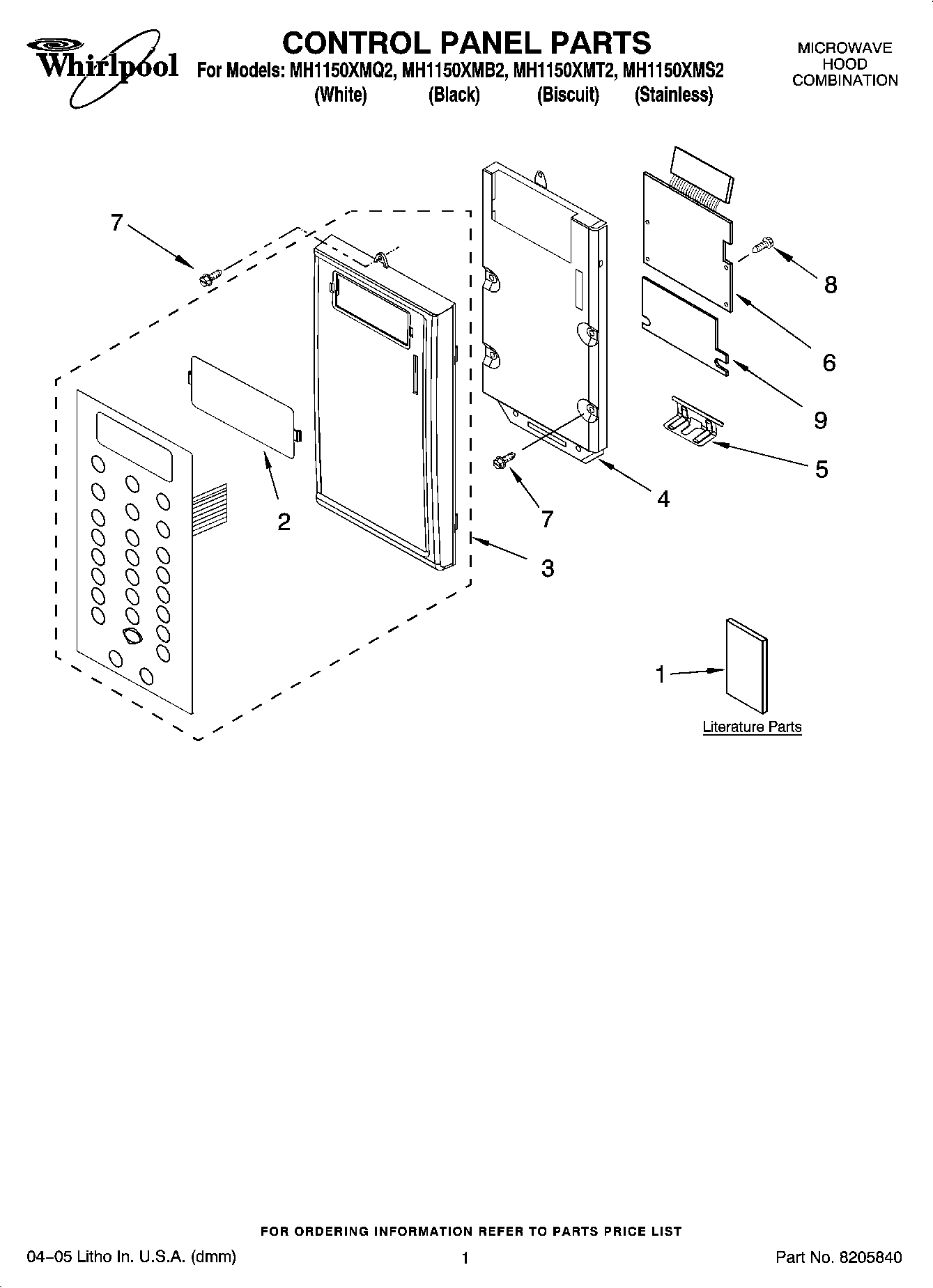

MH1150XMB2 01 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	Tech Sheet
1	Use & Care Guide
1	Cook Guide Label
1	Installation Instructions
2	Lens
3	Panel, Control (Stainless (Inlcudes 10))
3	Panel, Control (Biscuit)
3	Panel, Control (Black)
3	Panel, Control (White)
4	Bracket, Control
5	Plate, Hinge
6	PCB Assembly
7	Screw
8	Screw
9	Foil, PCB
