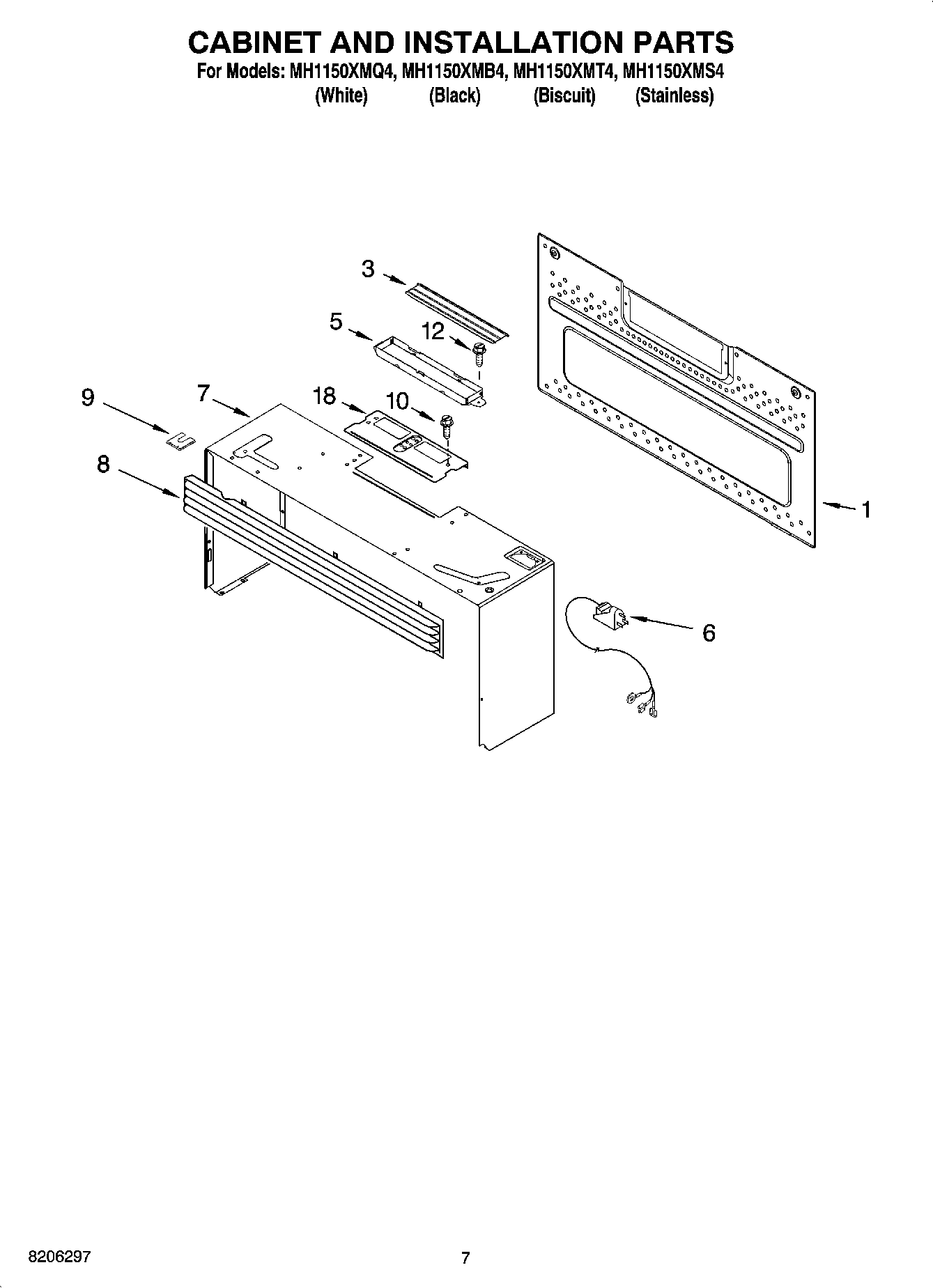

MH1150XMB4 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
1	WP8206174 Whirlpool Microwave Mounting Bracket
3	W10843943 Whirlpool Microwave Vent Damper
6	W10708076 Whirlpool Microwave Power Cord
7	Case, Outer (Black)
7	Case, Outer (White)
7	Case, Outer (Biscuit)
8	8183852 Whirlpool Microwave Primary Vent Grille
8	8183948 Whirlpool Microwave Oven Vent Grille
8	8184608 Whirlpool Microwave Oven Vent Grille
8	8183851 Whirlpool Microwave Oven Vent Grille Black
9	8206334 Whirlpool Microwave Mounting Bracket
10	WP4393834 Whirlpool Microwave Screw
12	Screw
18	Main Harness
18	Lamp Wire Assy.
18	H.V. Wire Assy.
18	Plate, Damper
18	Ground Wire Assy.
18	WP8169704 Whirlpool Screw
18	Template, Upper
18	8205948 Whirlpool Microwave Mount
18	Miscellaneous
