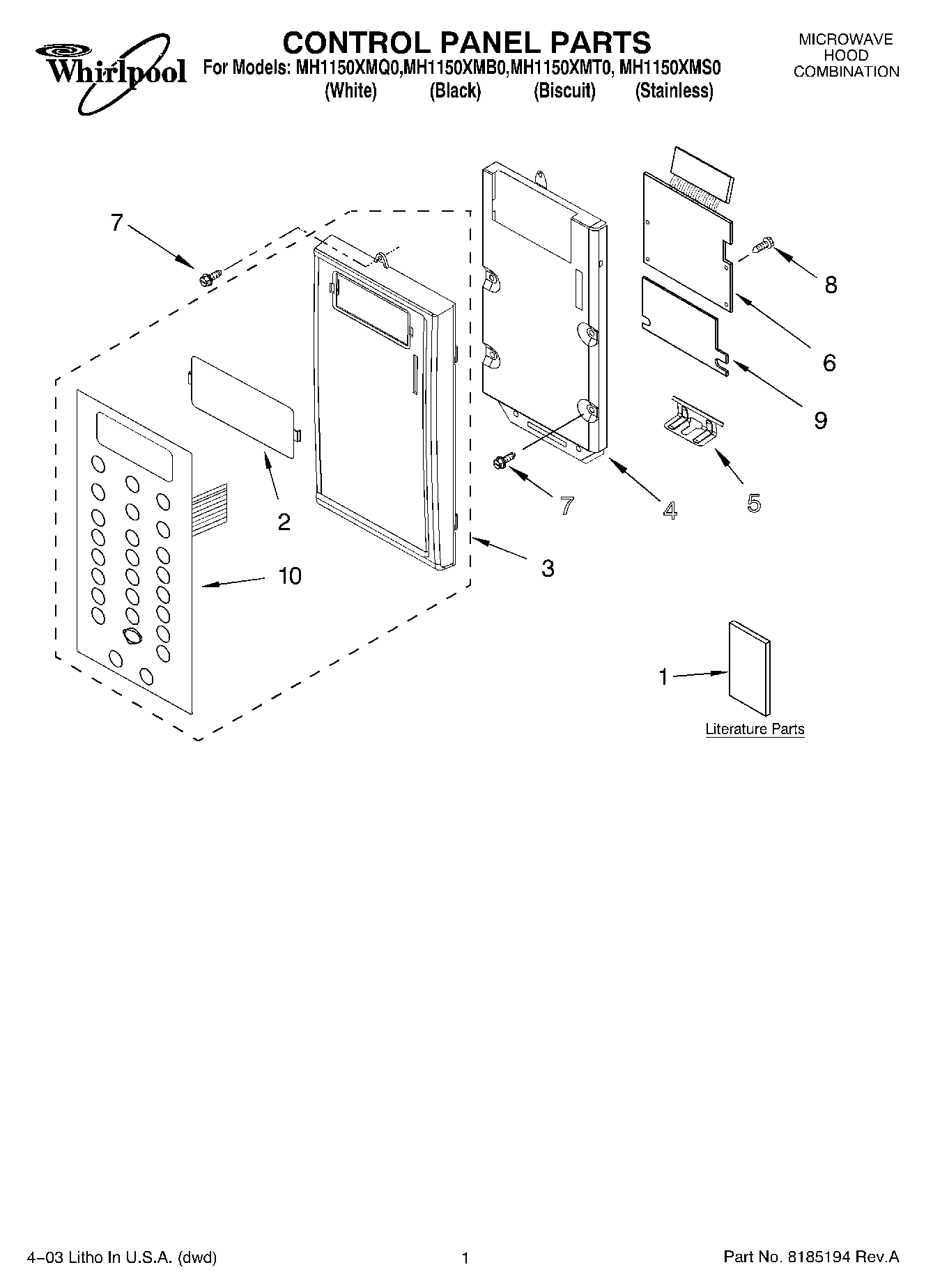

MH1150XMQ0 01 – CONTROL PANEL PARTSadmin2025-04-26T12:46:39+00:00MH1150XMQ0 01 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | Literature Parts (Use & Care Guide) |
| 1 | Literature Parts (Tech Sheet) |
| 1 | Literature Parts (Cook Guide Label) |
| 1 | Literature Parts (Installation Instructions) |
| 2 | Lens |
| 3 | Panel, Control (Stainless (Inlcudes 10)) |
| 3 | Panel, Control (Biscuit) |
| 3 | Panel, Control (Black) |
| 3 | Panel, Control (White) |
| 4 | Bracket, Control |
| 5 | Plate, Hinge |
| 6 | PCB Assembly |
| 7 | Screw |
| 8 | Screw |
| 9 | Foil, PCB |
| 10 | Switch, Membrane (White) |
| 10 | Switch, Membrane (Biscuit) |
| 10 | Switch, Membrane (Black Stainless (Not Serviced)) |
