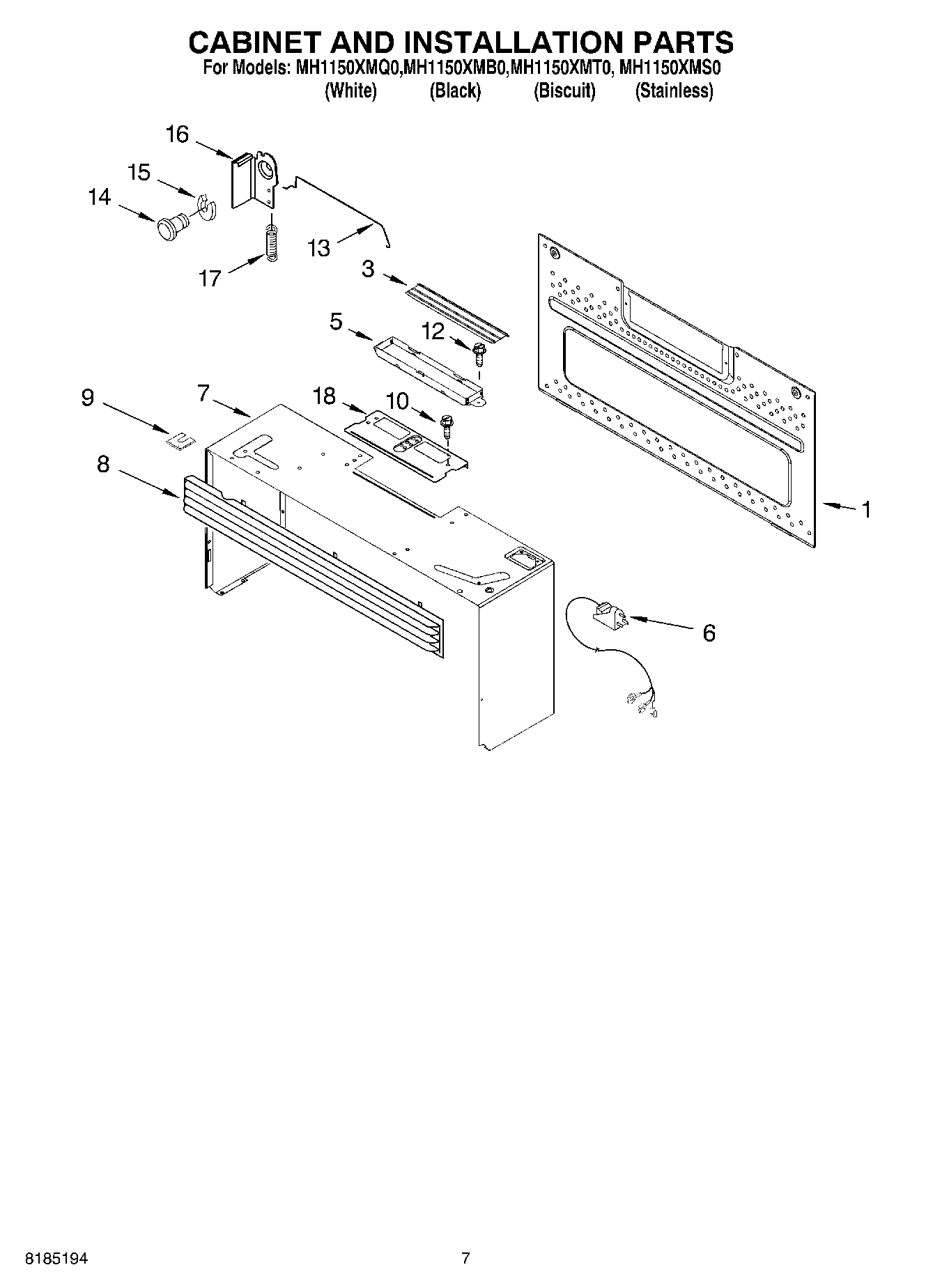

MH1150XMQ0 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
1	WP8206174 Whirlpool Microwave Mounting Bracket
3	W10843943 Whirlpool Microwave Vent Damper
6	W10708076 Whirlpool Microwave Power Cord
7	Case, Outer (Biscuit)
7	Case, Outer (White)
7	Case, Outer (Black)
8	8183851 Whirlpool Microwave Oven Vent Grille Black
8	8183948 Whirlpool Microwave Oven Vent Grille
8	8184608 Whirlpool Microwave Oven Vent Grille
8	8183852 Whirlpool Microwave Primary Vent Grille
9	8206334 Whirlpool Microwave Mounting Bracket
10	WP4393834 Whirlpool Microwave Screw
12	Screw
13	Rod
14	Latch, Pivot
15	E-Ring
16	Catch
17	Spring
18	Plate, Damper
18	Wall Template
18	Hardware, Installation
18	WP8169704 Whirlpool Screw
18	Template, Upper
18	Miscellaneous
