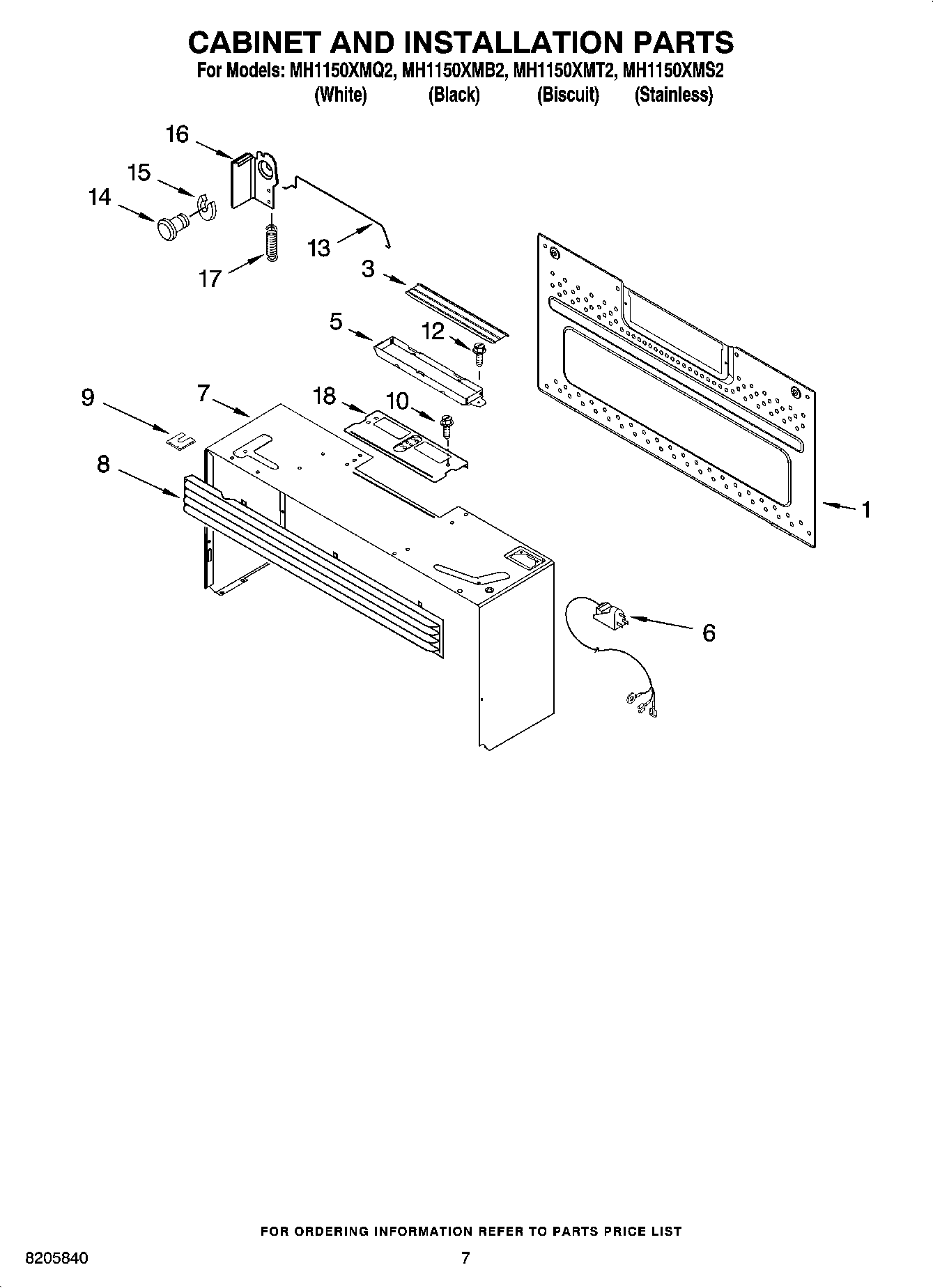

MH1150XMS2 06 – CABINET AND INSTALLATION PARTS

MH1150XMS2 06 – CABINET AND INSTALLATION PARTS

Written by

in

MH1150XMS2 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
1WP8206174 Whirlpool Microwave Mounting Bracket
3W10843943 Whirlpool Microwave Vent Damper
6W10708076 Whirlpool Microwave Power Cord
7Case, Outer (Black)
7Case, Outer (Biscuit)
7Case, Outer (White)
88183852 Whirlpool Microwave Primary Vent Grille
88183851 Whirlpool Microwave Oven Vent Grille Black
88184608 Whirlpool Microwave Oven Vent Grille
88183948 Whirlpool Microwave Oven Vent Grille
98206334 Whirlpool Microwave Mounting Bracket
10WP4393834 Whirlpool Microwave Screw
12Screw
13Rod
14Latch, Pivot
15E-Ring
16Catch
17Spring
18Lamp Wire Assy.
18H.V. Wire Assy.
18Installation, Hardware
18Main Harness
18Plate, Damper
18Ground Wire Assy.
18WP8169704 Whirlpool Screw
18Wall Template
18Template, Upper
18Miscellaneous
