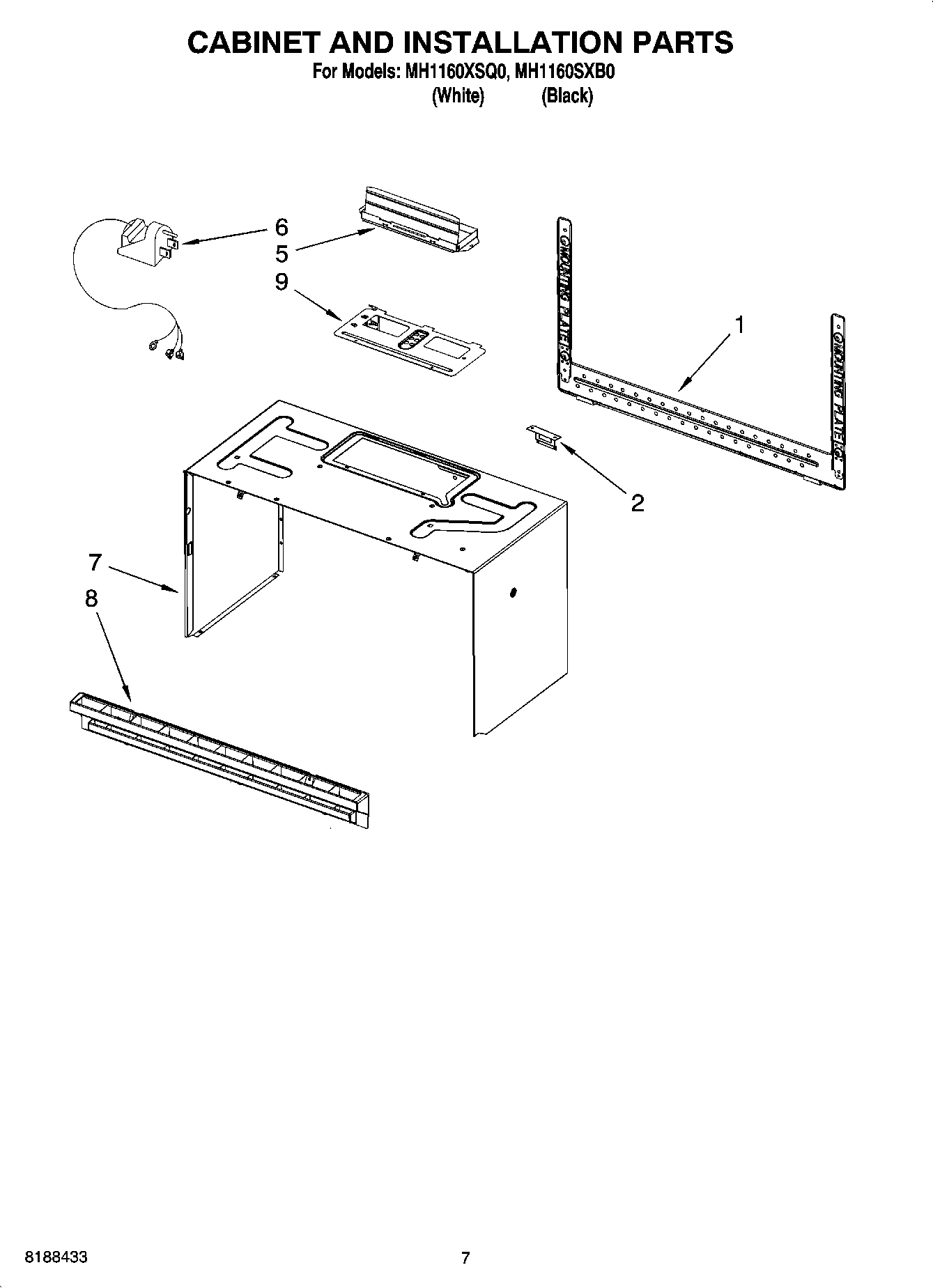

MH1160XSB0 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
1WPW10269225 Whirlpool Bracket Mounting
28206385 Whirlpool Microwave Wire Clip
5W10843943 Whirlpool Microwave Vent Damper
68206388 Whirlpool Microwave Power Cord
7Case, Outer (White)
7Case, Outer (Black)
8W10269471 Whirlpool Microwave Vent Grille
8W10259625 Whirlpool Microwave Vent Grille
9HV Trnsfrm Wr Assy
9Grnd Wire, Filter
9Harness Wire, NTC
9Ground Wire Assy.
9WP8169704 Whirlpool Screw
9Hdlmp/TT Wire Assy
9Main Harness
9H.V. Wire Assy
9Plate, Damper
9Template, Upper
98205948 Whirlpool Microwave Mount
9Miscellaneous
