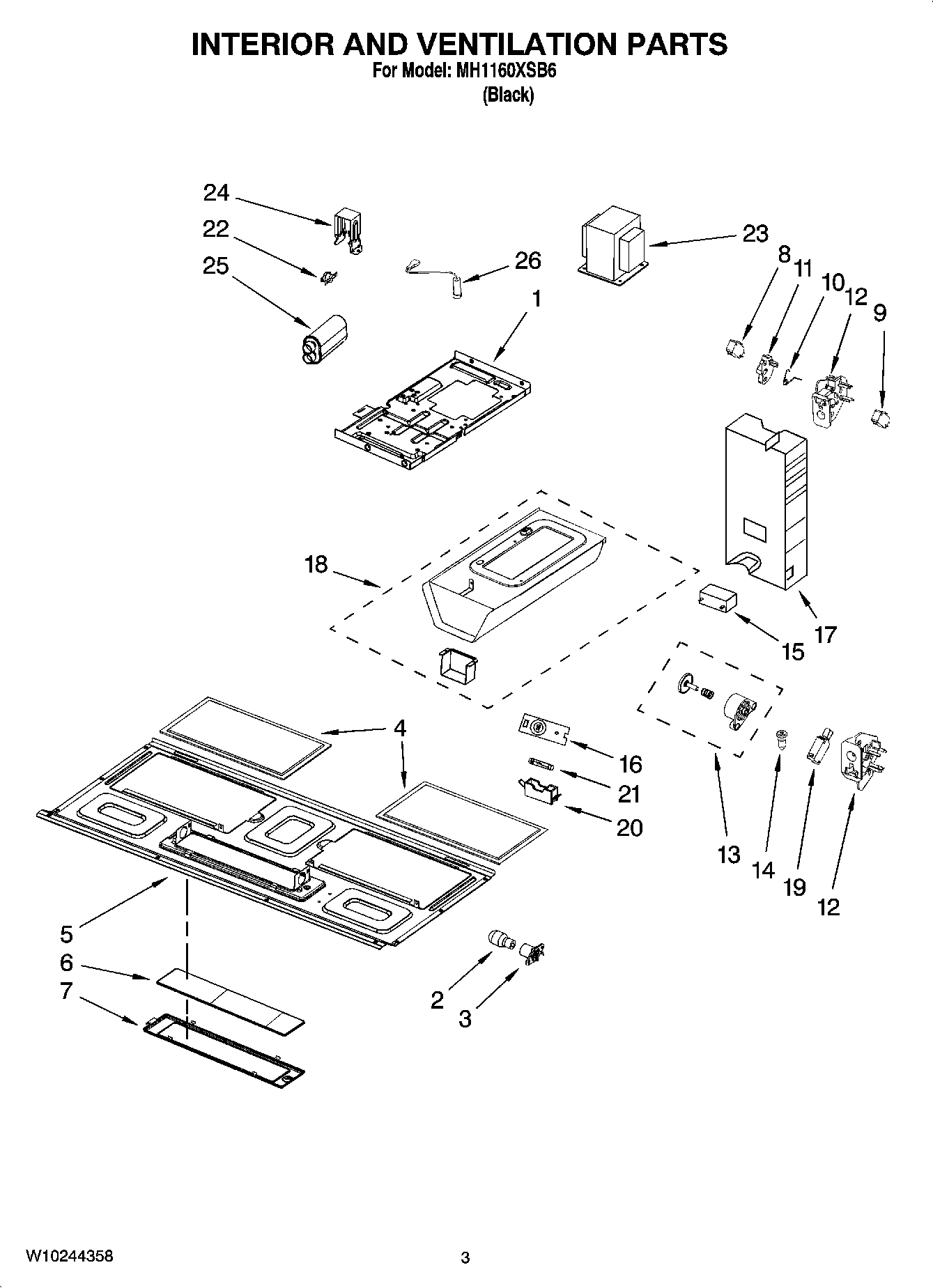

MH1160XSB6 03 – INTERIOR AND VENTILATION PARTS

MH1160XSB6 03 – INTERIOR AND VENTILATION PARTS

Written by

in

MH1160XSB6 03 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1Chassis
28206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3W10210871 Whirlpool Microwave Lamp Housing
4W10181505 Whirlpool Grease Filter
5PLATE, BOTTOM
6WPW10210875 Whirlpool Microwave Lamp Glass Cover
7HOLDER, GLASS
8W10211972 Whirlpool Microwave Switch
9W10269458 Whirlpool Microwave Door Switch
10W10156812 Whirlpool Spring
11W10562613 Whirlpool Microwave Interlock Cam Assembly
12WP8206419 Whirlpool Microwave Top Interlock Support
12WPW10156813 Whirlpool Microwave Bottom Interlock Support
13W10197758 Whirlpool Microwave Piston
148206180 Whirlpool Microwave Screw
15W11405832 Whirlpool Microwave Capacitor
16W10163422 Whirlpool Microwave Thermistor
17PLATE, SIDE
18CHASSIS ASSEMBLY
19W10211974 Whirlpool Microwave Door Interlock Micro Switch
20HOLDER, FUSE
21FUSE-THRML
22W10269232 Whirlpool Microwave Thermostat Fix
23Transformer, H.V.
24W10532063 Whirlpool Microwave Bracket
25CAPACTR-MG
26W11256462 Whirlpool Microwave Diode
