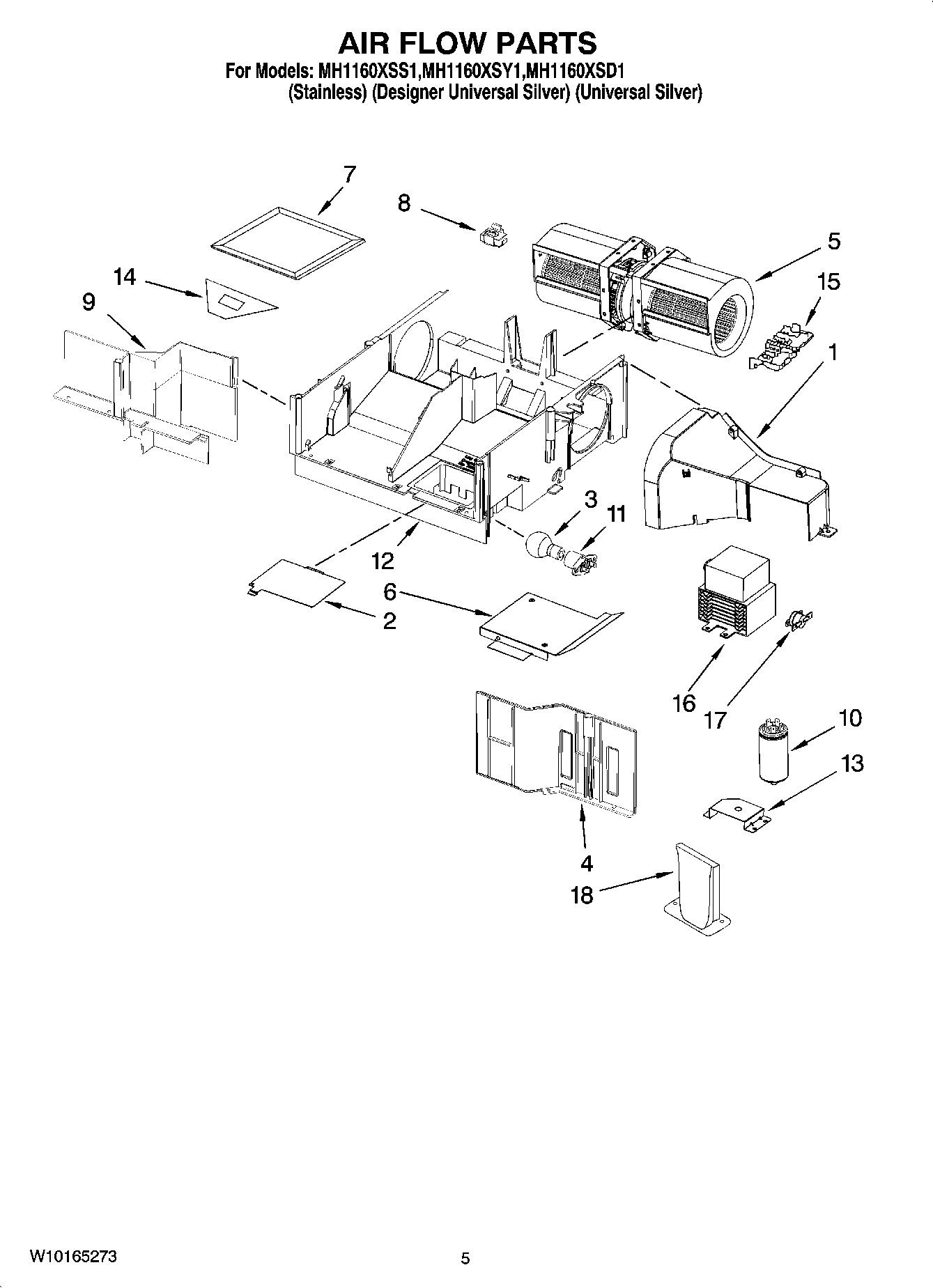

MH1160XSY1 04 – AIR FLOW PARTS

Products

Position	Product
1	Deflector, Air
2	8206382 Whirlpool Microwave Light Cover
3	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
4	Cover, Side Inlet
5	MOTOR, FAN ASSEMBLY
6	W10138797 Whirlpool Microwave Duct Cover
7	8206230A Whirlpool Microwave Charcoal Filter
8	W10596040 Whirlpool Microwave Nut
9	AIR GUIDE
10	Filter
11	8169539 Whirlpool Microwave Light Bulb Socket and Housing
12	Base Plate, Air Guide
13	Brkt-Mntg, Filter
14	Socket, Motor Wire
15	Cover, Terminal
16	W10754299 Whirlpool Microwave Oven Magnetron
17	W10598693 Whirlpool Microwave Thermostat Fix
18	W10164716 Whirlpool Microwave Plate
