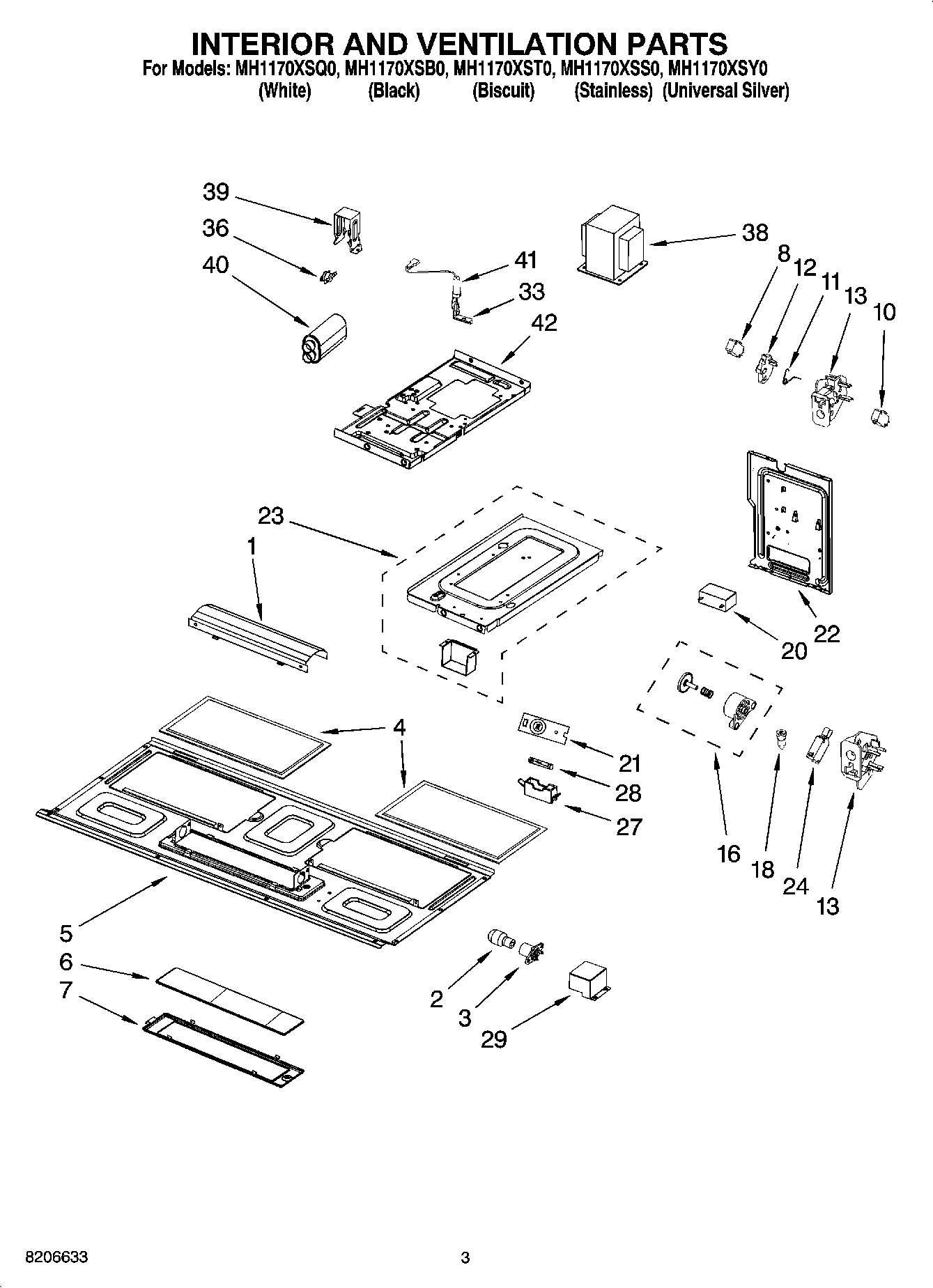

MH1170XSS0 03 – INTERIOR AND VENTILATION PARTS

MH1170XSS0 03 – INTERIOR AND VENTILATION PARTS

Written by

in

MH1170XSS0 03 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1Reflector, Lamp
28206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3Holder, Lamp
48206229A Whirlpool Microwave Grease Filter for Oven Range Vent Hood
5Plate, Bottom
6Glass, Lamp
7Holder, Glass
8W10211972 Whirlpool Microwave Switch
10W10269458 Whirlpool Microwave Door Switch
11Spring, Interlock
12Plate, Cam
13WPW10156813 Whirlpool Microwave Bottom Interlock Support
13WP8206419 Whirlpool Microwave Top Interlock Support
16W10197758 Whirlpool Microwave Piston
188206180 Whirlpool Microwave Screw
20W11405832 Whirlpool Microwave Capacitor
21Thermistor (PCBA)
22Plate, Side
23Chassis Assembly
24W10211974 Whirlpool Microwave Door Interlock Micro Switch
27Holder, Fuse
28FUSE-THRML
29Terminal Cvr, Lamp
33Support, Diode
36W10269232 Whirlpool Microwave Thermostat Fix
38Transformer, H.V.
39W10532063 Whirlpool Microwave Bracket
40CAPACTR-MG
41Diode, H.V.
42Chassis
