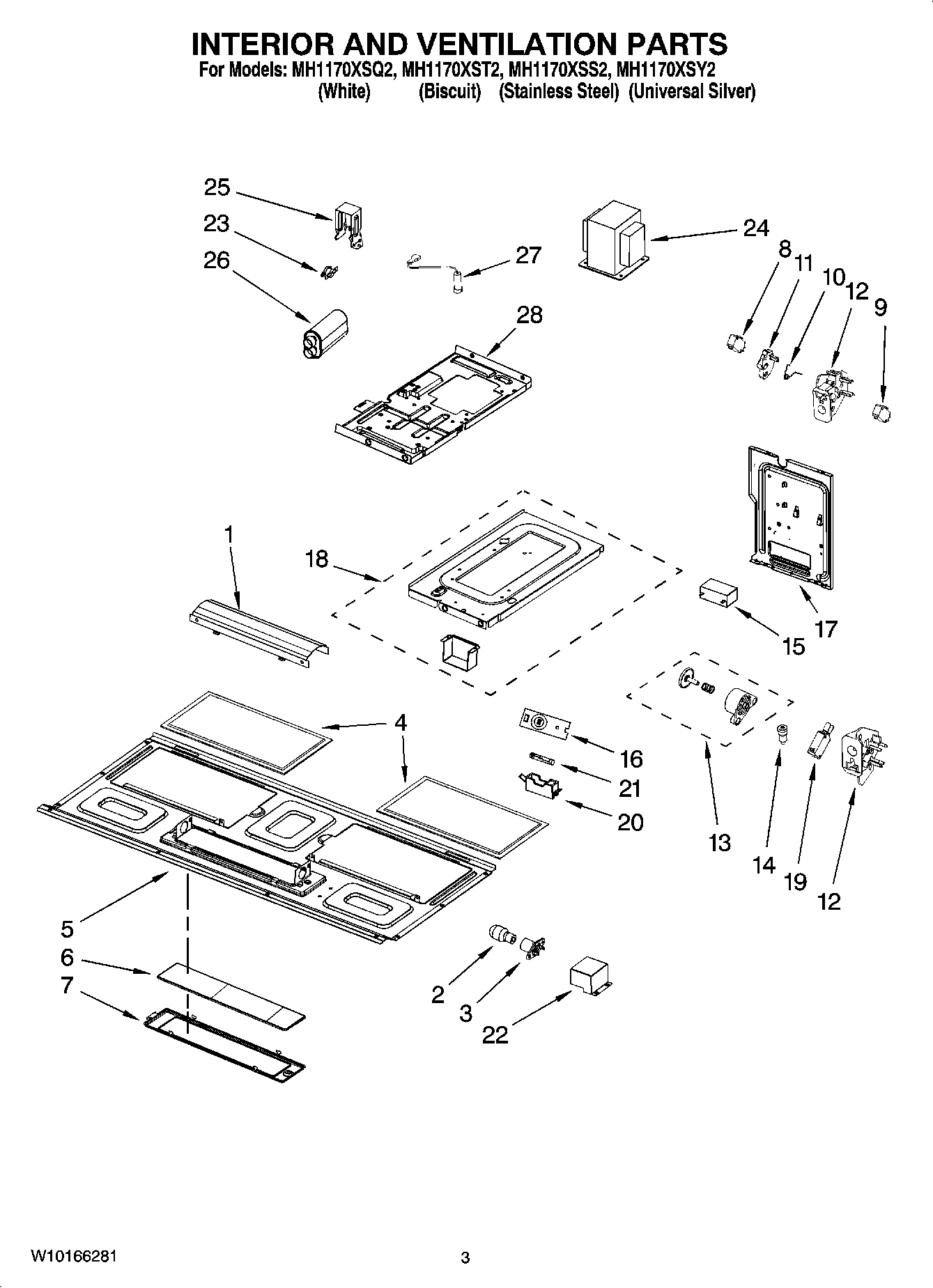

MH1170XSS2 03 – INTERIOR AND VENTILATION PARTSadmin2025-04-26T10:32:30+00:00MH1170XSS2 03 – INTERIOR AND VENTILATION PARTS
Products
| Position | Product |
|---|
| 1 | Reflector, Lamp |
| 2 | 8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb |
| 3 | Holder, Lamp |
| 4 | 8206229A Whirlpool Microwave Grease Filter for Oven Range Vent Hood |
| 5 | Plate, Bottom |
| 6 | Glass, Lamp |
| 7 | Holder, Glass |
| 8 | W10211972 Whirlpool Microwave Switch |
| 9 | W10269458 Whirlpool Microwave Door Switch |
| 10 | W10156812 Whirlpool Spring |
| 11 | W10562613 Whirlpool Microwave Interlock Cam Assembly |
| 12 | WPW10156813 Whirlpool Microwave Bottom Interlock Support |
| 12 | WP8206419 Whirlpool Microwave Top Interlock Support |
| 13 | W10197758 Whirlpool Microwave Piston |
| 14 | 8206180 Whirlpool Microwave Screw |
| 15 | W11405832 Whirlpool Microwave Capacitor |
| 16 | W10163422 Whirlpool Microwave Thermistor |
| 17 | PLATE, SIDE |
| 18 | CHASSIS ASSEMBLY |
| 19 | W10211974 Whirlpool Microwave Door Interlock Micro Switch |
| 20 | Holder, Fuse |
| 21 | FUSE-THRML |
| 22 | Terminal Cvr, Lamp |
| 23 | W10269232 Whirlpool Microwave Thermostat Fix |
| 23 | Support, Diode |
| 24 | Transformer, H.V. |
| 25 | W10532063 Whirlpool Microwave Bracket |
| 26 | CAPACTR-MG |
| 27 | W11256462 Whirlpool Microwave Diode |
| 28 | Chassis |
