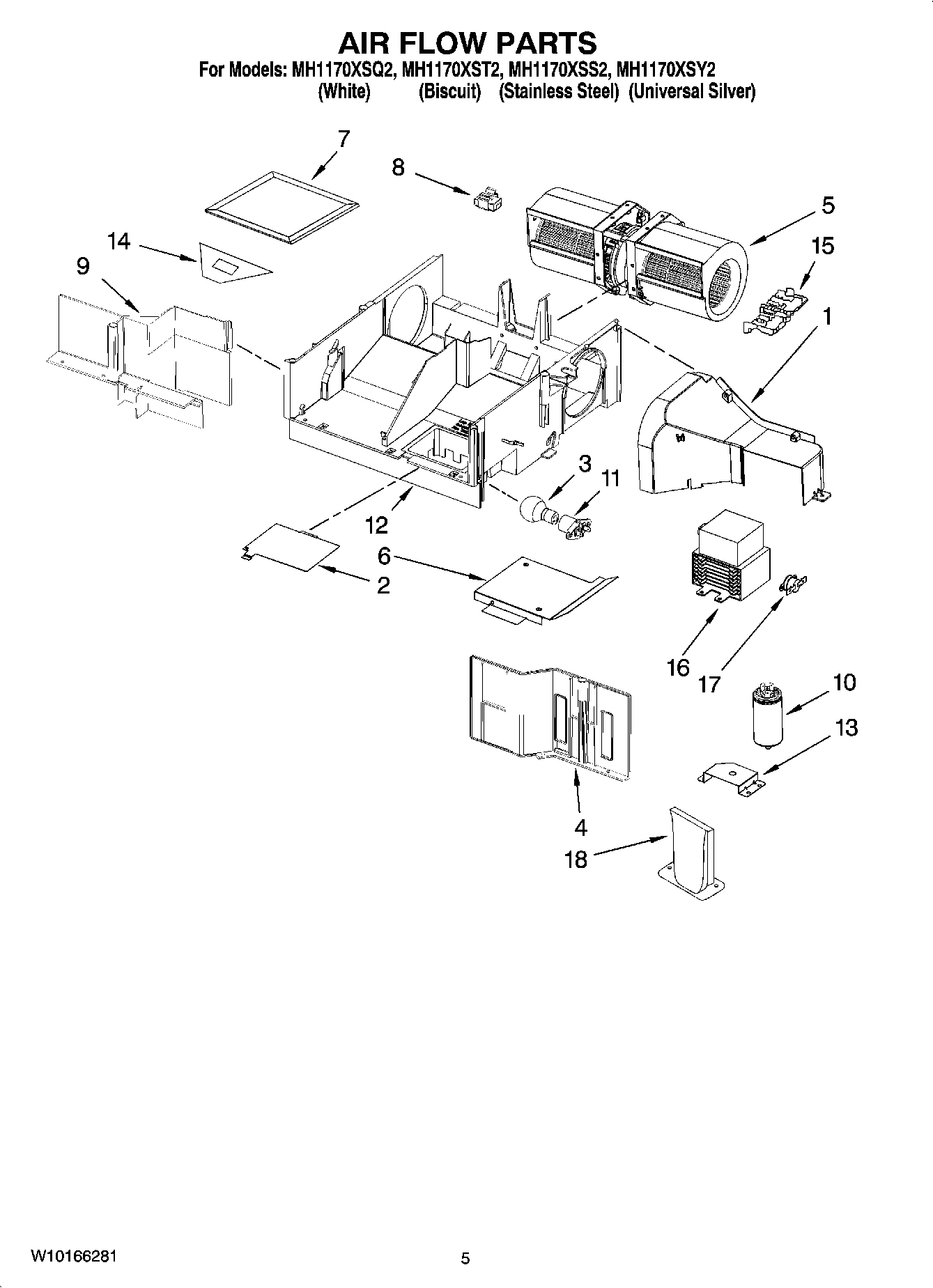

MH1170XSS2 04 – AIR FLOW PARTS

Products

Position	Product
1	Deflector, Air
2	8206382 Whirlpool Microwave Light Cover
3	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
4	Cover, Side Inlet
5	MOTOR, FAN ASSEMBLY
6	W10138797 Whirlpool Microwave Duct Cover
7	8206230A Whirlpool Microwave Charcoal Filter
8	W10596040 Whirlpool Microwave Nut
9	AIR GUIDE
10	Filter
11	8169539 Whirlpool Microwave Light Bulb Socket and Housing
12	Base Plate, Air Guide
13	BRACKET, FILTER
14	SOCKET, MOTOR WIRE
15	Cover, Terminal
16	W10754299 Whirlpool Microwave Oven Magnetron
17	W10598693 Whirlpool Microwave Thermostat Fix
18	W10164716 Whirlpool Microwave Plate
