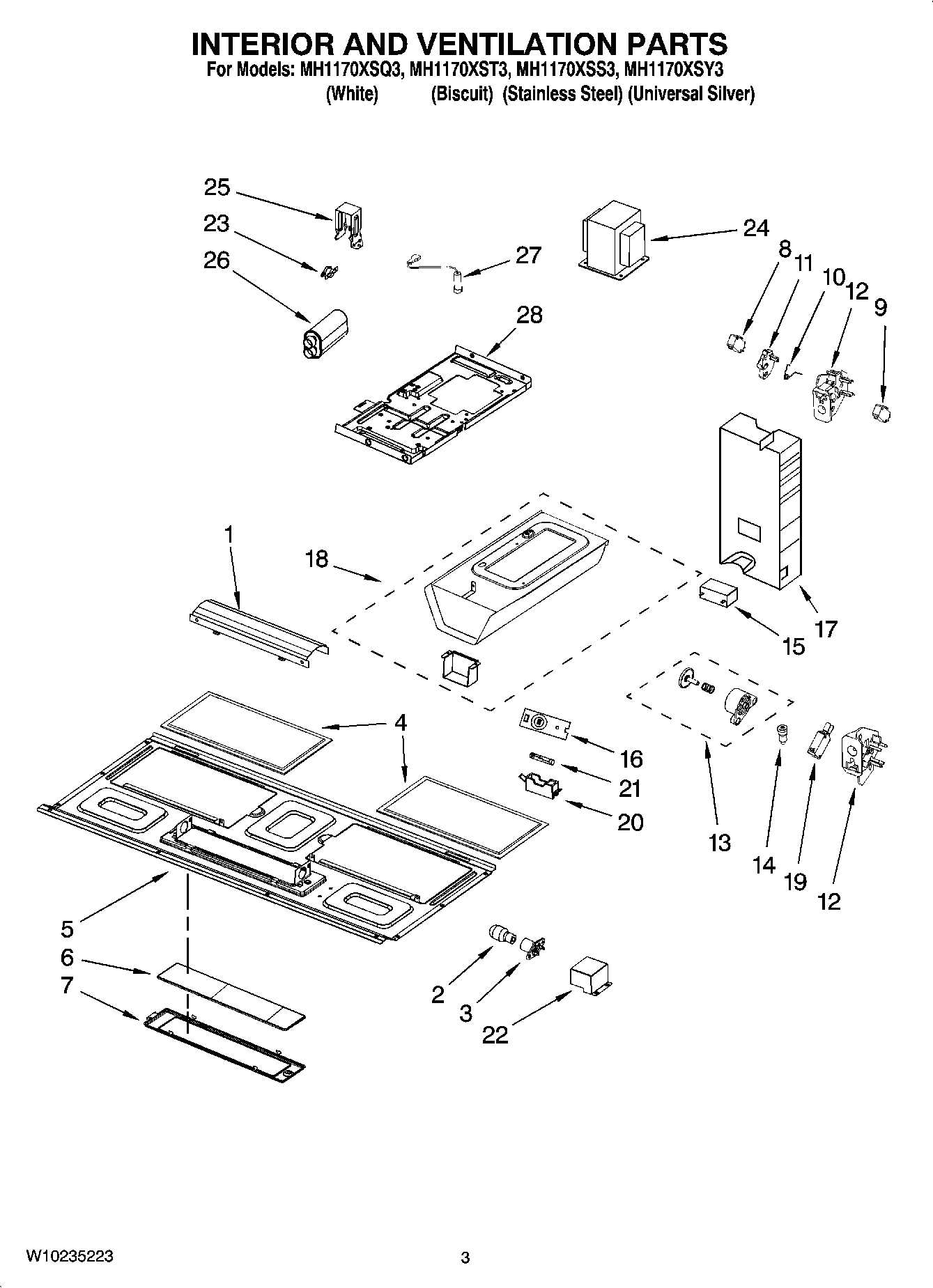

MH1170XSS3 03 – INTERIOR AND VENTILATION PARTSadmin2025-04-26T10:32:00+00:00MH1170XSS3 03 – INTERIOR AND VENTILATION PARTS ProductsPositionProduct1Reflector, Lamp28206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb3Holder, Lamp48206229A Whirlpool Microwave Grease Filter for Oven Range Vent Hood5Plate, Bottom6Glass, Lamp7Holder, Glass8W10211972 Whirlpool Microwave Switch9W10269458 Whirlpool Microwave Door Switch10W10156812 Whirlpool Spring11W10562613 Whirlpool Microwave Interlock Cam Assembly12WP8206419 Whirlpool Microwave Top Interlock Support12WPW10156813 Whirlpool Microwave Bottom Interlock Support13W10197758 Whirlpool Microwave Piston148206180 Whirlpool Microwave Screw15W11405832 Whirlpool Microwave Capacitor16W10163422 Whirlpool Microwave Thermistor17PLATE, SIDE18CHASSIS ASSEMBLY19W10211974 Whirlpool Microwave Door Interlock Micro Switch20HOLDER, FUSE21FUSE-THRML22Terminal Cvr, Lamp23W10269232 Whirlpool Microwave Thermostat Fix24Transformer, H.V.25W10532063 Whirlpool Microwave Bracket26CAPACTR-MG27W11256462 Whirlpool Microwave Diode28Chassis
