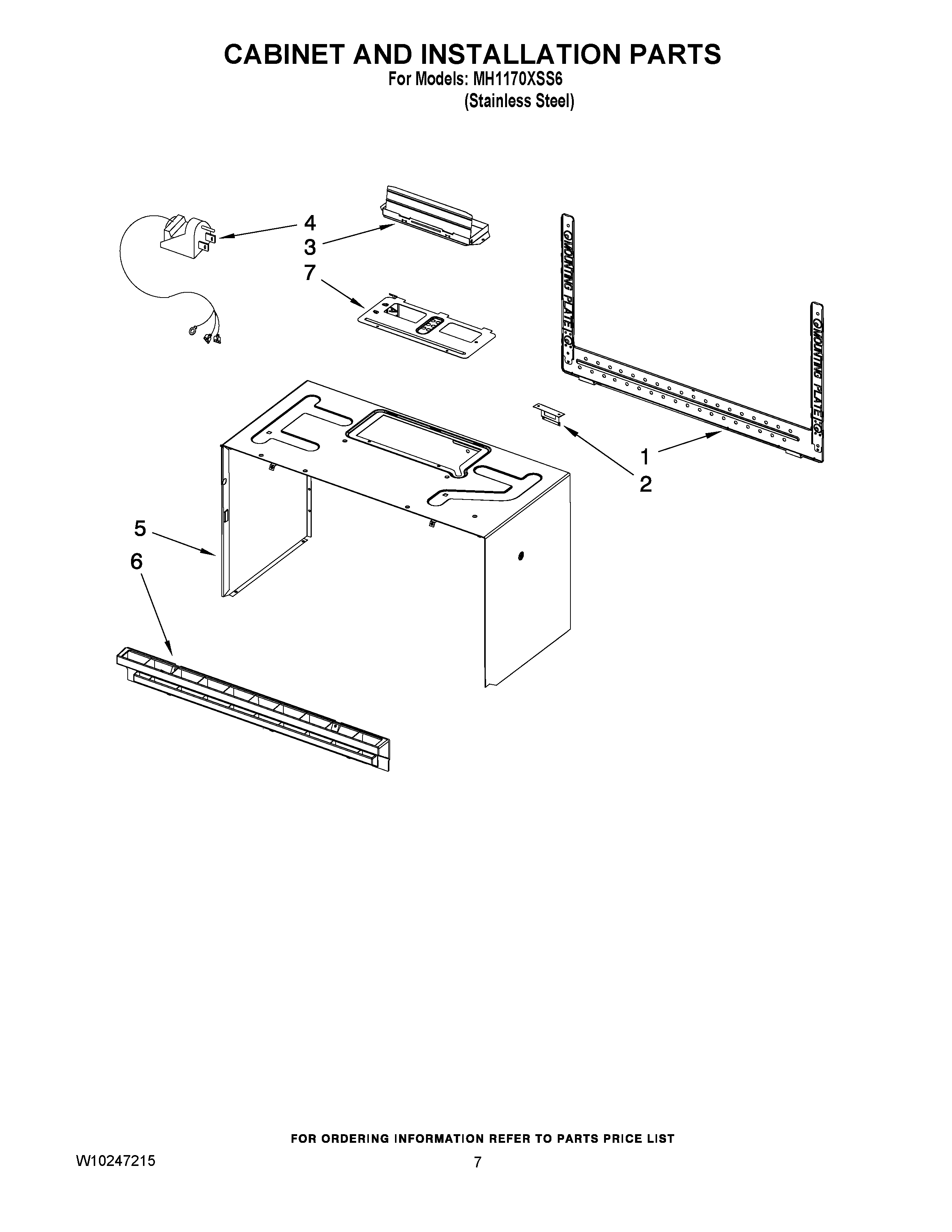

MH1170XSS6 06 – CABINET AND INSTALLATION PARTS

MH1170XSS6 06 – CABINET AND INSTALLATION PARTS

Written by

in

MH1170XSS6 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIW10470168 Whirlpool Microwave Wire Harness
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER
NIW10539842 Whirlpool Microwave Harness Wire
NIMISCELLANEOUS PARTS, GROUND WIRE ASSEMBLY
NIGrnd Wire, Filter
NIH.V. Wire Assy
NIMISCELLANEOUS PARTS, MAIN HARNESS
NIHdlmp/TT Wire Assy
NIW10821385 Whirlpool Hardware Kit
NIW10138802 Whirlpool Microwave Screw
1WPW10269225 Whirlpool Bracket Mounting
28206385 Whirlpool Microwave Wire Clip
3W10843943 Whirlpool Microwave Vent Damper
48206388 Whirlpool Microwave Power Cord
5CASE, OUTER (BLACK)
6W10259625 Whirlpool Microwave Vent Grille
7Plate, Damper
