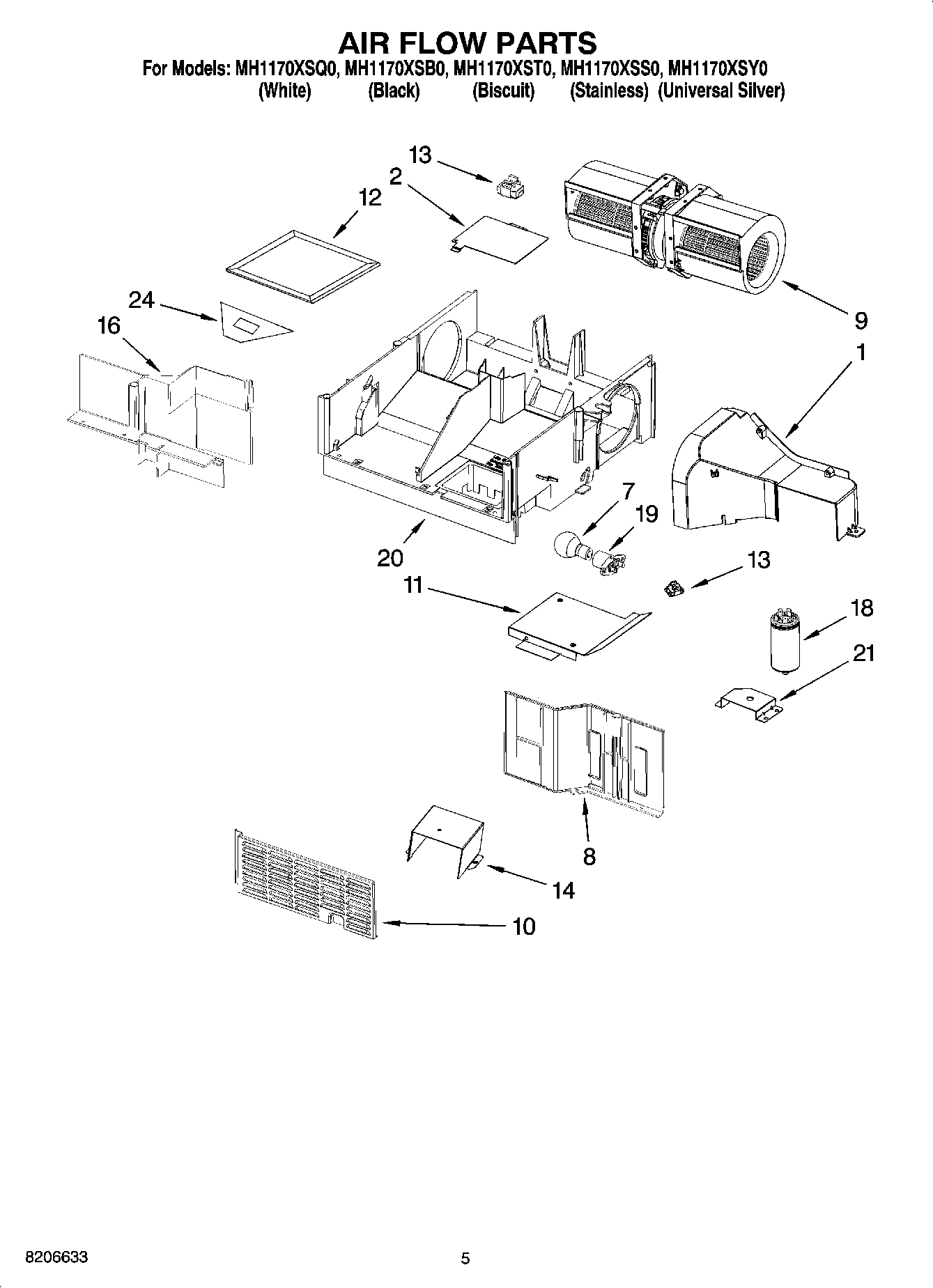

MH1170XST0 04 – AIR FLOW PARTS

Products

Position	Product
1	Deflector, Air
2	8206382 Whirlpool Microwave Light Cover
7	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
8	Cover, Side Inlet
9	Motor, Fan Assy
10	Shield
11	W10138797 Whirlpool Microwave Duct Cover
12	8206230A Whirlpool Microwave Charcoal Filter
13	W10596040 Whirlpool Microwave Nut
14	Channel, Air
16	Air Guide
18	Filter
19	8169539 Whirlpool Microwave Light Bulb Socket and Housing
20	Base Plate, Air Guide
21	Brkt-Mntg, Filter
24	Socket, Motor Wire
