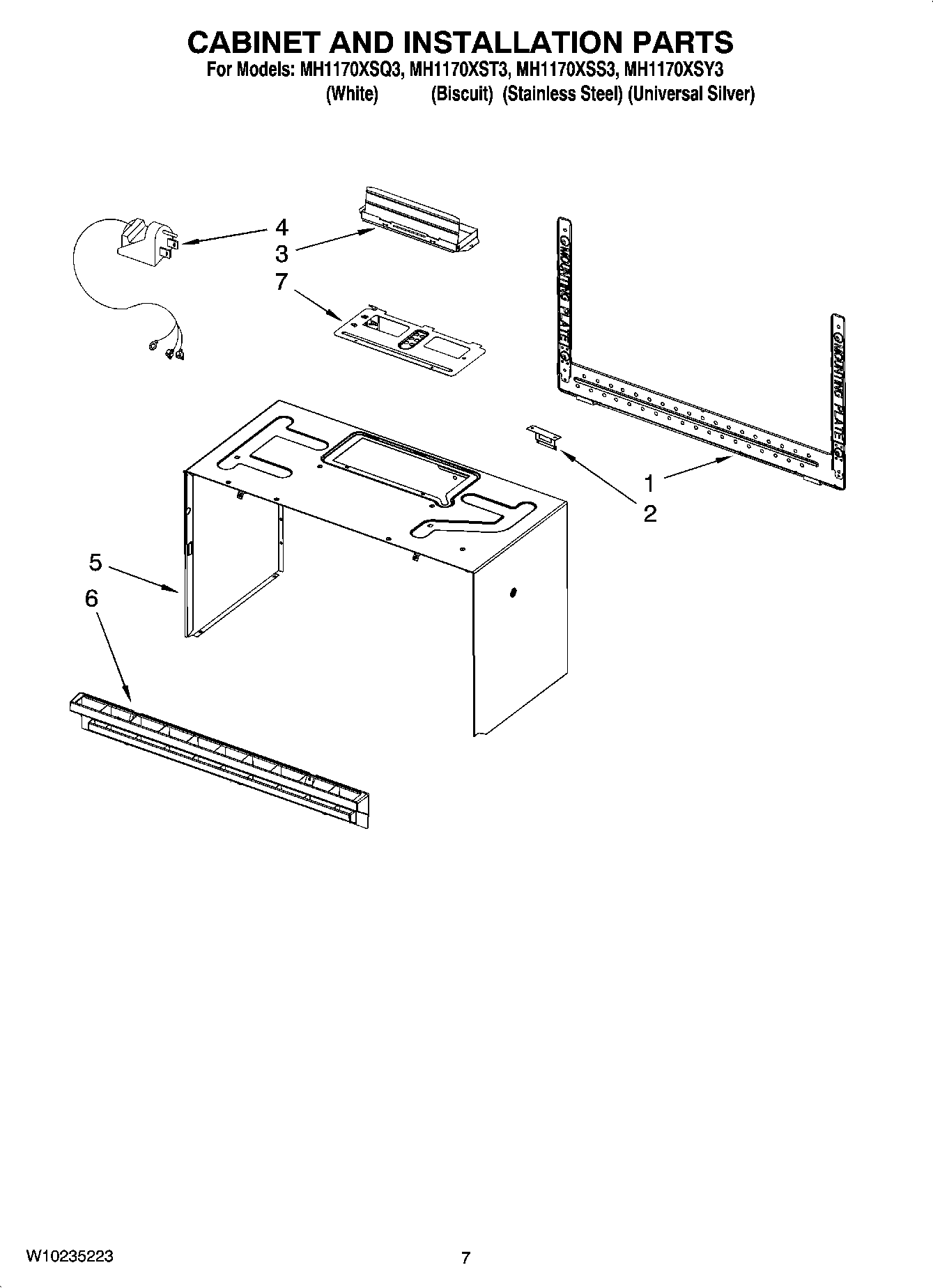

MH1170XST3 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
	Miscellaneous
	Main Harness
	MISCELLANEOUS PARTS, HDLMP/TT WIRE ASSEMBLY
	MISCELLANEOUS PARTS, GROUND WIRE ASSEMBLY
	W10138802 Whirlpool Microwave Screw
	MISCELLANEOUS PARTS, TEMPLATE, UPPER
	W10539842 Whirlpool Microwave Harness Wire
	W10470168 Whirlpool Microwave Wire Harness
	Grnd Wire, Filter
	H.V. Wire Assy
	W10821385 Whirlpool Hardware Kit
1	WPW10269225 Whirlpool Bracket Mounting
2	8206385 Whirlpool Microwave Wire Clip
3	W10843943 Whirlpool Microwave Vent Damper
4	8206388 Whirlpool Microwave Power Cord
5	Case, Outer
5	Case, Outer (Biscuit)
5	Case, Outer (White)
6	W10139642 Whirlpool Microwave Vent Grill
6	W10259625 Whirlpool Microwave Vent Grille
6	W10269471 Whirlpool Microwave Vent Grille
6	Grille, Vent (Universal Silver)
7	Plate, Damper
