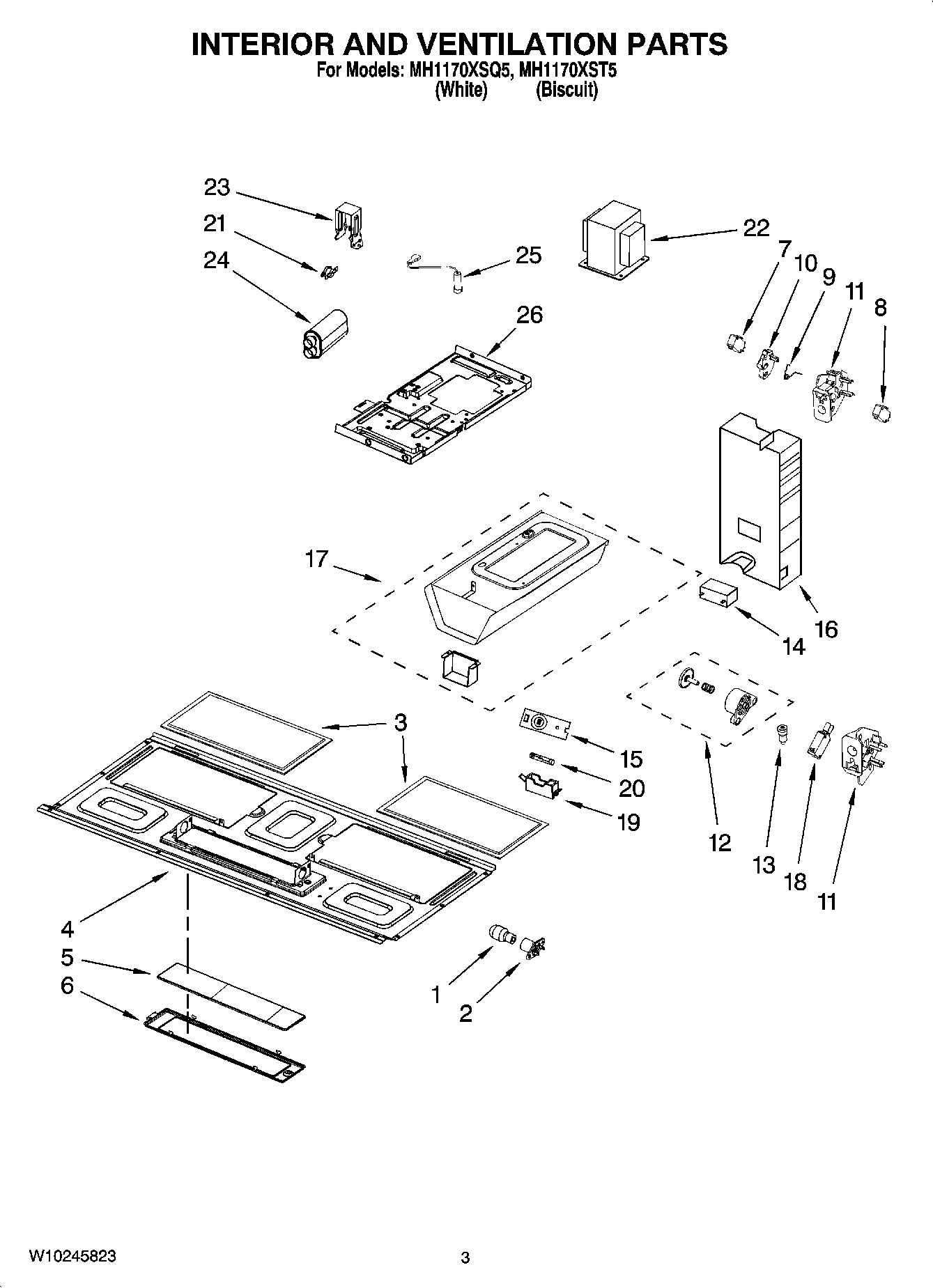

MH1170XST5 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
2	W10210871 Whirlpool Microwave Lamp Housing
3	W10181505 Whirlpool Grease Filter
4	PLATE, BOTTOM
5	WPW10210875 Whirlpool Microwave Lamp Glass Cover
6	HOLDER, GLASS
7	W10211972 Whirlpool Microwave Switch
8	W10269458 Whirlpool Microwave Door Switch
9	W10156812 Whirlpool Spring
10	W10562613 Whirlpool Microwave Interlock Cam Assembly
11	WPW10156813 Whirlpool Microwave Bottom Interlock Support
11	WP8206419 Whirlpool Microwave Top Interlock Support
12	W10197758 Whirlpool Microwave Piston
13	8206180 Whirlpool Microwave Screw
14	W11405832 Whirlpool Microwave Capacitor
15	W10163422 Whirlpool Microwave Thermistor
16	PLATE, SIDE
17	CHASSIS ASSEMBLY
18	W10211974 Whirlpool Microwave Door Interlock Micro Switch
19	HOLDER, FUSE
20	FUSE-THRML
21	W10269232 Whirlpool Microwave Thermostat Fix
22	Transformer, H.V.
23	W10532063 Whirlpool Microwave Bracket
24	CAPACTR-MG
25	W11256462 Whirlpool Microwave Diode
26	Chassis
