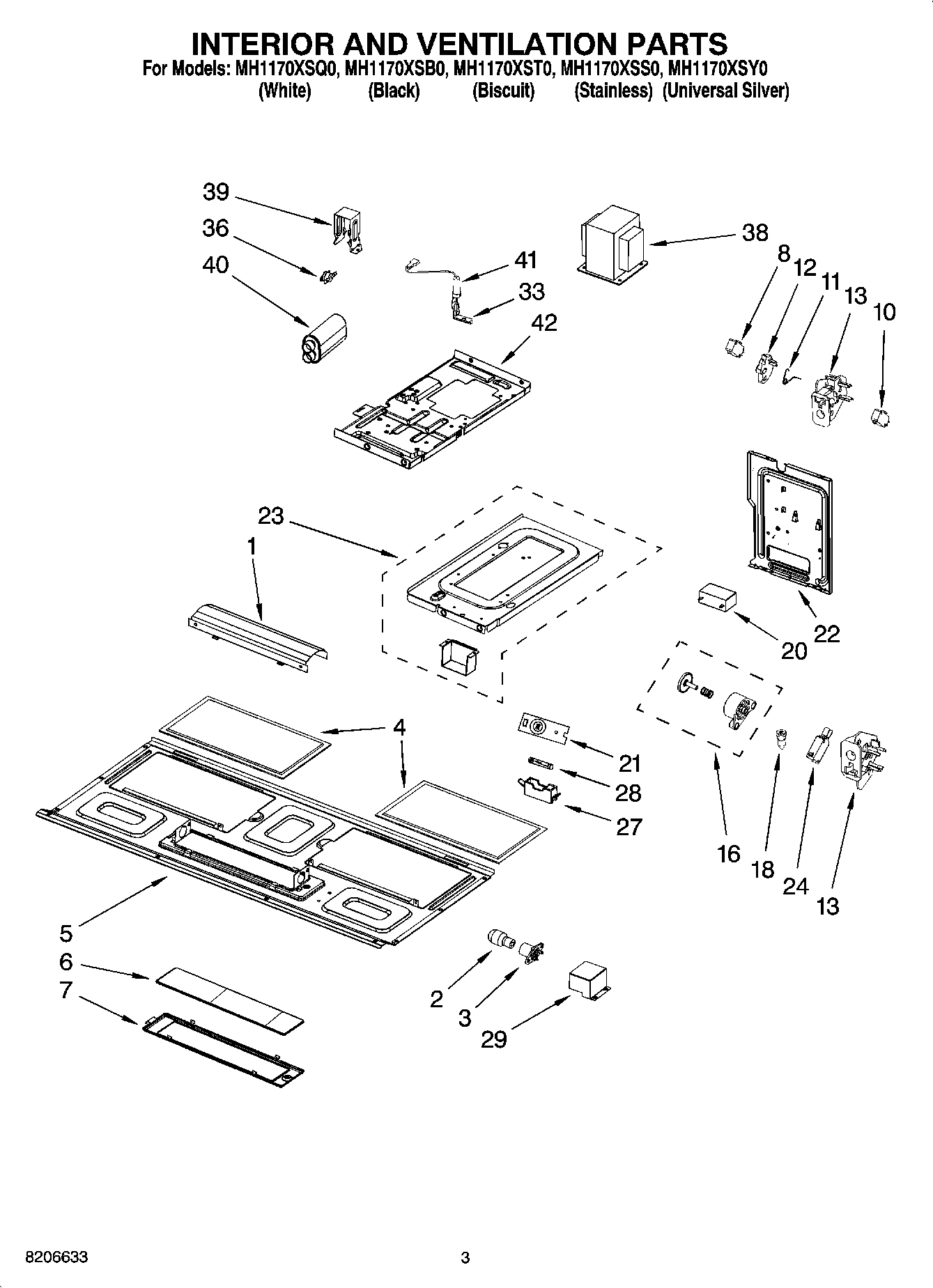

MH1170XSY0 03 – INTERIOR AND VENTILATION PARTSadmin2025-04-26T10:32:05+00:00MH1170XSY0 03 – INTERIOR AND VENTILATION PARTS
Products
| Position | Product |
|---|
| 1 | Reflector, Lamp |
| 2 | 8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb |
| 3 | Holder, Lamp |
| 4 | 8206229A Whirlpool Microwave Grease Filter for Oven Range Vent Hood |
| 5 | Plate, Bottom |
| 6 | Glass, Lamp |
| 7 | Holder, Glass |
| 8 | W10211972 Whirlpool Microwave Switch |
| 10 | W10269458 Whirlpool Microwave Door Switch |
| 11 | Spring, Interlock |
| 12 | Plate, Cam |
| 13 | WPW10156813 Whirlpool Microwave Bottom Interlock Support |
| 13 | WP8206419 Whirlpool Microwave Top Interlock Support |
| 16 | W10197758 Whirlpool Microwave Piston |
| 18 | 8206180 Whirlpool Microwave Screw |
| 20 | W11405832 Whirlpool Microwave Capacitor |
| 21 | Thermistor (PCBA) |
| 22 | Plate, Side |
| 23 | Chassis Assembly |
| 24 | W10211974 Whirlpool Microwave Door Interlock Micro Switch |
| 27 | Holder, Fuse |
| 28 | FUSE-THRML |
| 29 | Terminal Cvr, Lamp |
| 33 | Support, Diode |
| 36 | W10269232 Whirlpool Microwave Thermostat Fix |
| 38 | Transformer, H.V. |
| 39 | W10532063 Whirlpool Microwave Bracket |
| 40 | CAPACTR-MG |
| 41 | Diode, H.V. |
| 42 | Chassis |
