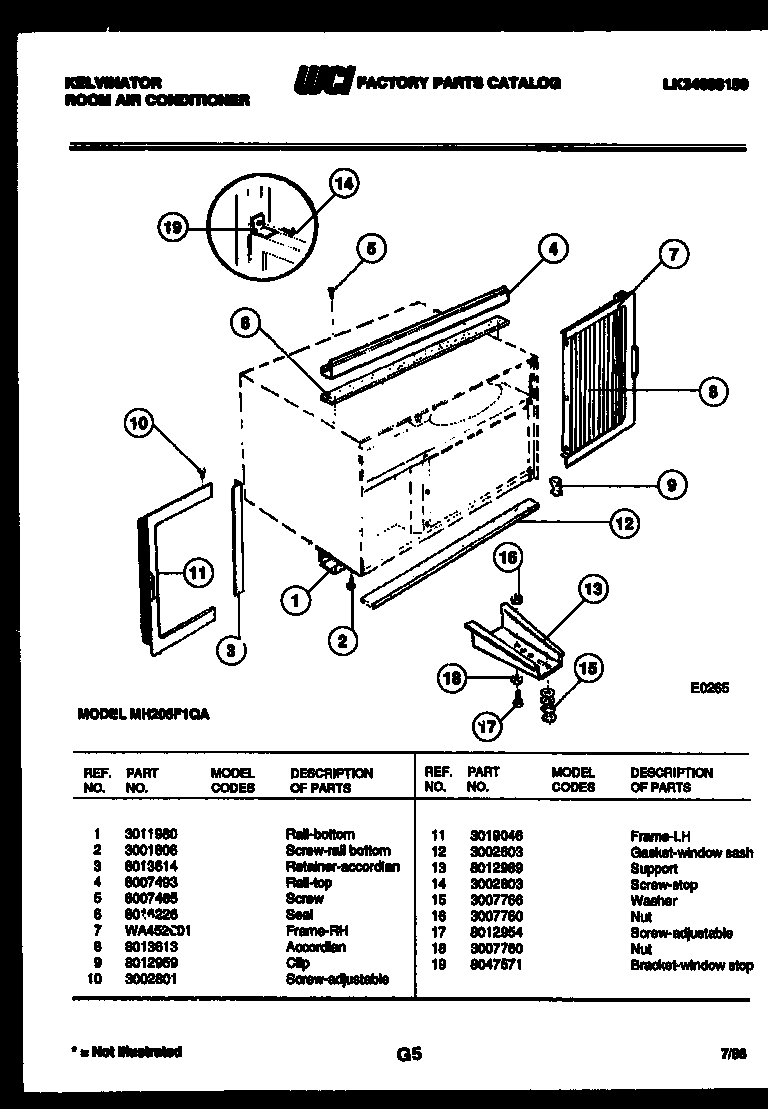

MH205F1QA 06 – CABINET AND INSTALLATION PARTS

Written by

Products

Position	Product
1	RAIL-BOTTOM
2	SCREW
3	RETAINER (2)
4	WCI 8007493
5	SCREW
6	SEAL, RAIL
7	WCI WA452601
8	PANEL, ACCORDIAN
9	CLIP-RETAINER
10	WCI 3002801
11	FRAME-LH
12	5304407729 Frigidaire Air Conditioner Seal
13	WCI 8012989
14	SCREW-WOOD
15	134716700 Frigidaire Washer
17	SCREW-ADJUSTABLE
18	WCI 3007760
19	STOP-WINDOW
