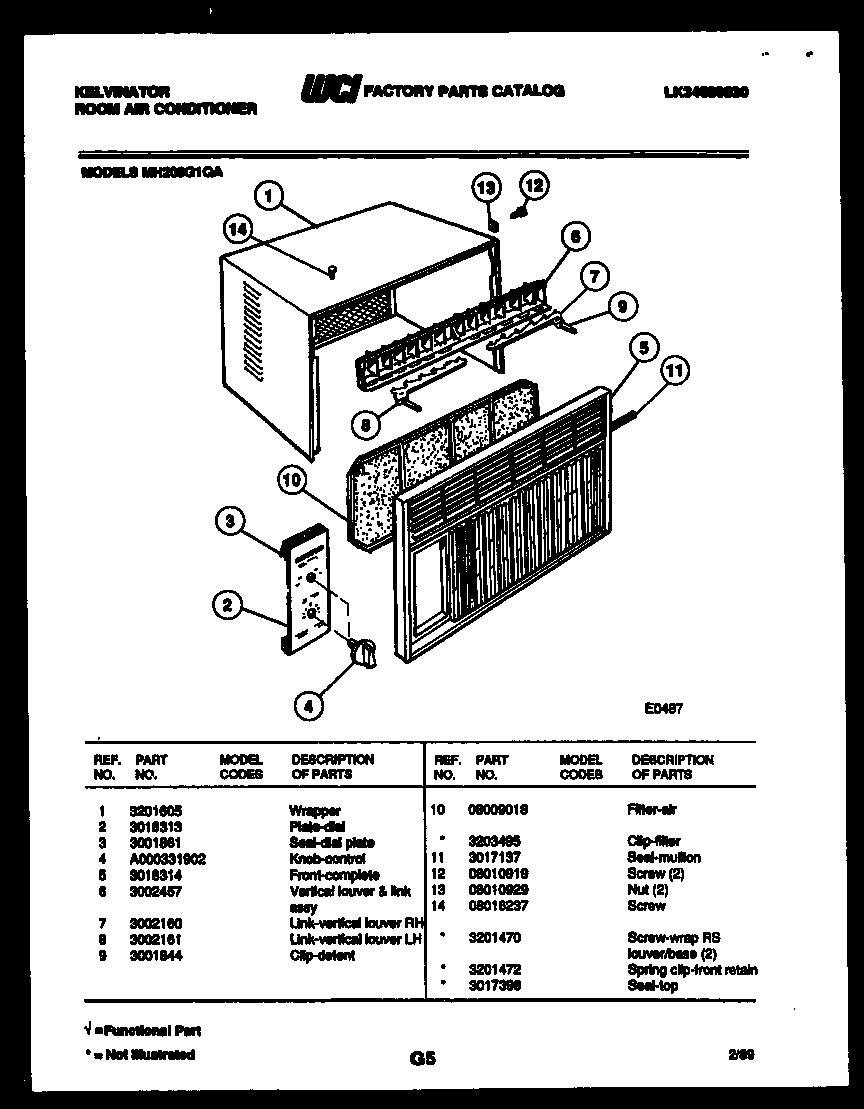

MH208G1QA 02 – CABINET PARTS

Products

Position	Product
*10763	SEAL TOP FRAME
*10762	WCI 3201470
*10763	SPRING CLIP-FRONT
1	WCI 3201605
2	PLATE-DIAL
3	WCI 3001861
4	WCI A000331902
5	WCI 3018314
6	VERTICAL LOUVER & LINK ASSY
7	LINK-VERT LOUVER RH
8	LINK-VERT LOUVER LH
9	CLIP-DETENT
10A	INSERT
10	FILTER-AIR
11	WCI 3017137
12	SCREW FRONT PANEL (NON-ILLUSTRATED)
13	NUT-FRONT RETAINING SCREW
14	WCI 08016237
