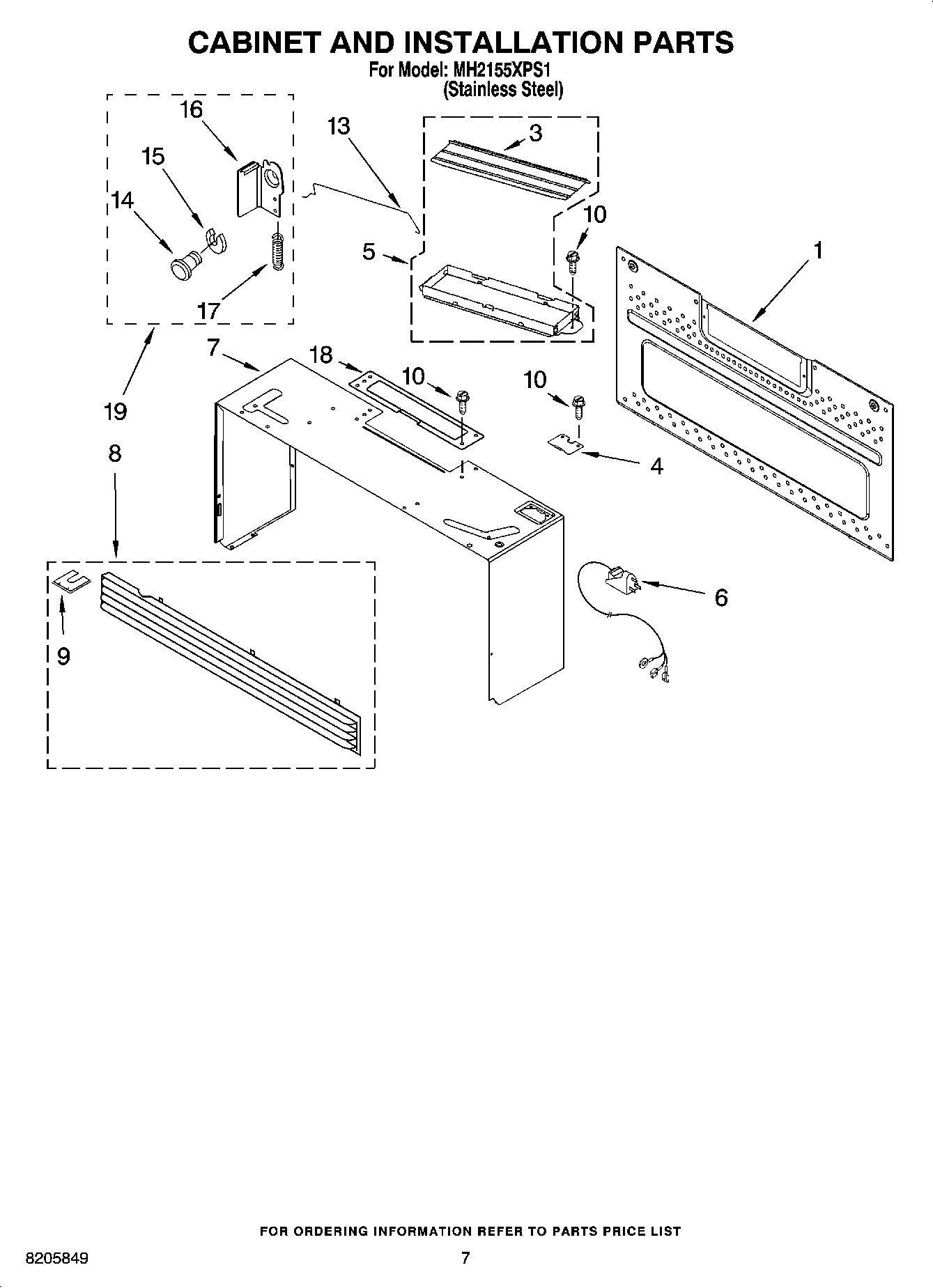

MH2155XPS1 06 – CABINET AND INSTALLATION PARTS

MH2155XPS1 06 – CABINET AND INSTALLATION PARTS

Written by

in

MH2155XPS1 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
1WP8206174 Whirlpool Microwave Mounting Bracket
3W10843943 Whirlpool Microwave Vent Damper
4Lid, Power Cord
6Cord, Power
7Case, Outer (Black)
88184608 Whirlpool Microwave Oven Vent Grille
98206334 Whirlpool Microwave Mounting Bracket
10Screw
13Rod
14Latch, Pivot
15E-Ring
17Spring
18Plate, Damper
19Fan Motor Wiring
19Stirrer Motor Wire
19Lamp Wire Assembly
19H.V. Wire Assembly
19ACCESSORY PARTS
19Cavity Lamp Wiring
19(Biscuit)
19Ground Wire Assy.
19WP8169704 Whirlpool Screw
19Rack
19Wall Template
19Filler Kit (Black)
19Hardware, Installation
19Catch
19Miscellaneous
