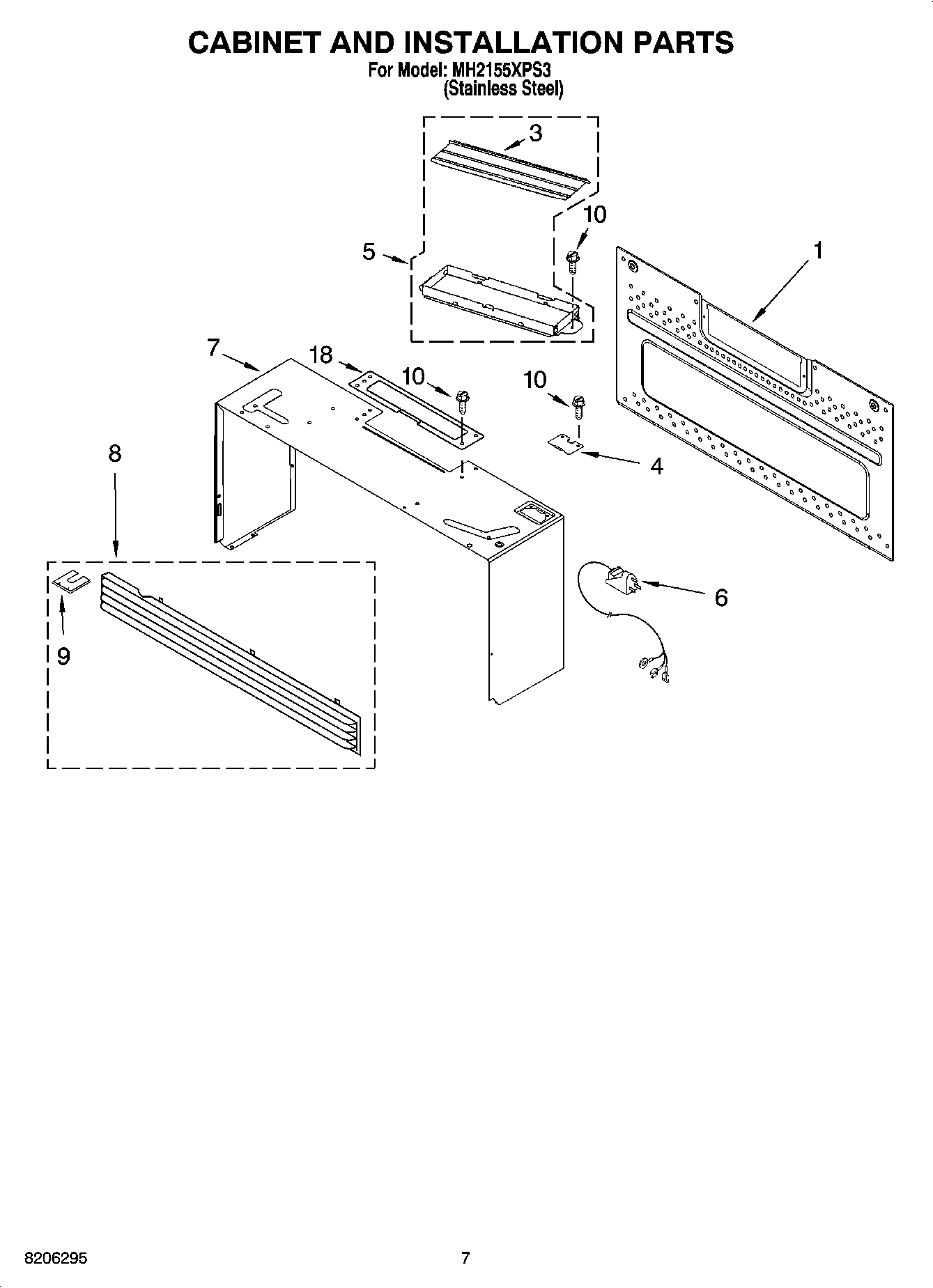

MH2155XPS3 06 – CABINET AND INSTALLATION PARTS

MH2155XPS3 06 – CABINET AND INSTALLATION PARTS

Written by

in

MH2155XPS3 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
1WP8206174 Whirlpool Microwave Mounting Bracket
3W10843943 Whirlpool Microwave Vent Damper
4Lid, Power Cord
6Cord, Power
7Case, Outer (Black)
88184608 Whirlpool Microwave Oven Vent Grille
98206334 Whirlpool Microwave Mounting Bracket
10Screw
18H.V. Wire Assembly
18Lamp Wire Assembly
18WP8169704 Whirlpool Screw
18Hardware, Installation
18ACCESSORY PARTS
18Stirrer Motor Wire
18Fan Motor Wiring
18Cavity Lamp Wiring
18(Biscuit)
18Ground Wire Assy.
18Rack
18Filler Kit (Black)
18Plate, Damper
18Miscellaneous
