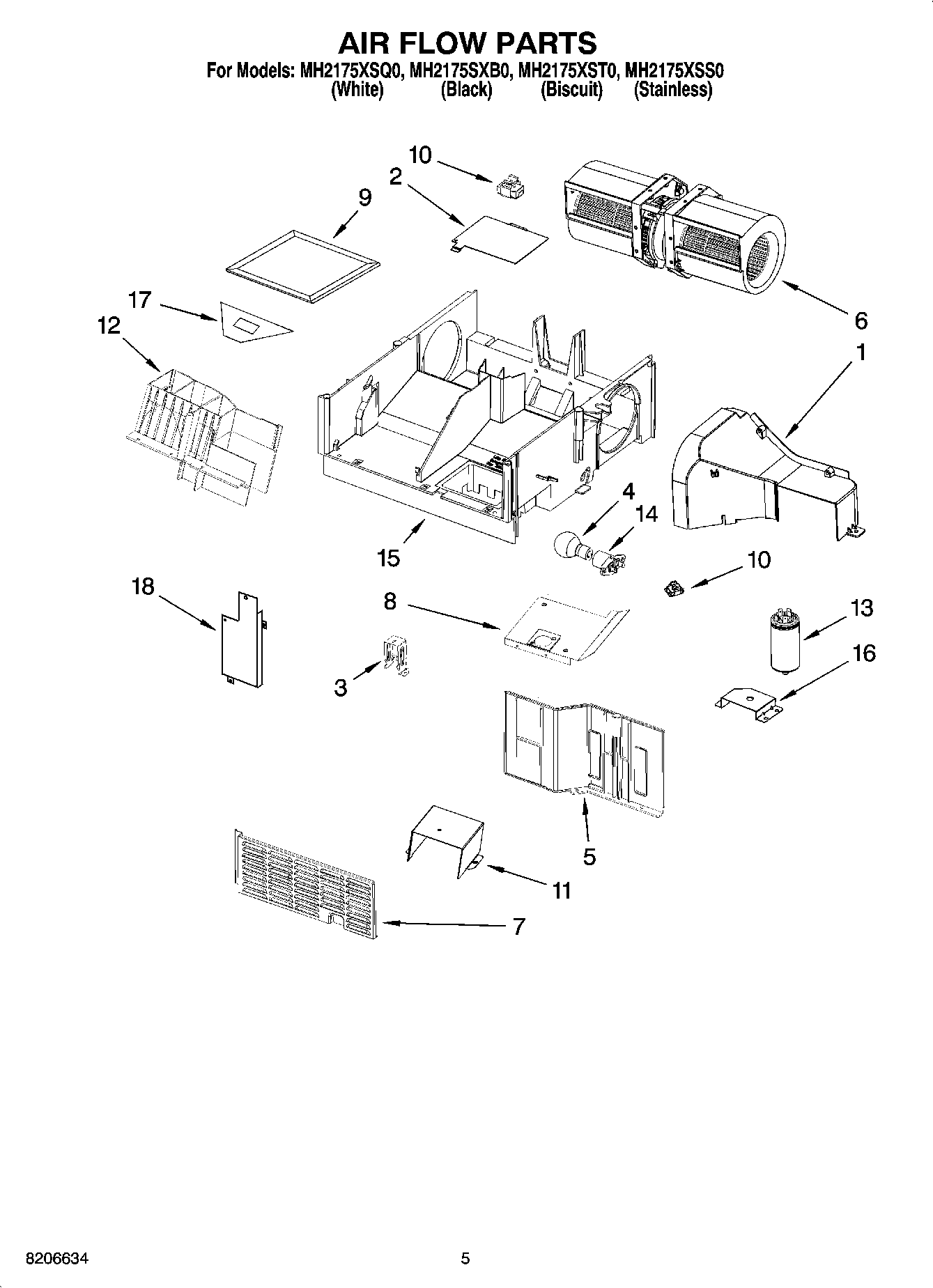

MH2175XSS0 04 – AIR FLOW PARTS

Products

Position	Product
1	Deflector, Air
2	8206382 Whirlpool Microwave Light Cover
3	SENSOR, HUMIDITY
4	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
5	Cover, Side Inlet
6	MOTOR, FAN ASSEMBLY
7	Shield
8	W10247762 Whirlpool Duct Cover
9	8206230A Whirlpool Microwave Charcoal Filter
10	W10596040 Whirlpool Microwave Nut
11	Channel, Air
12	Air Guide, Plate
13	Filter
14	8169539 Whirlpool Microwave Light Bulb Socket and Housing
15	Base Plate, Air Guide
16	Brkt-Mntg, Filter
17	Socket, Motor Wire
18	Cover, Inlet Air Cavity Guide
