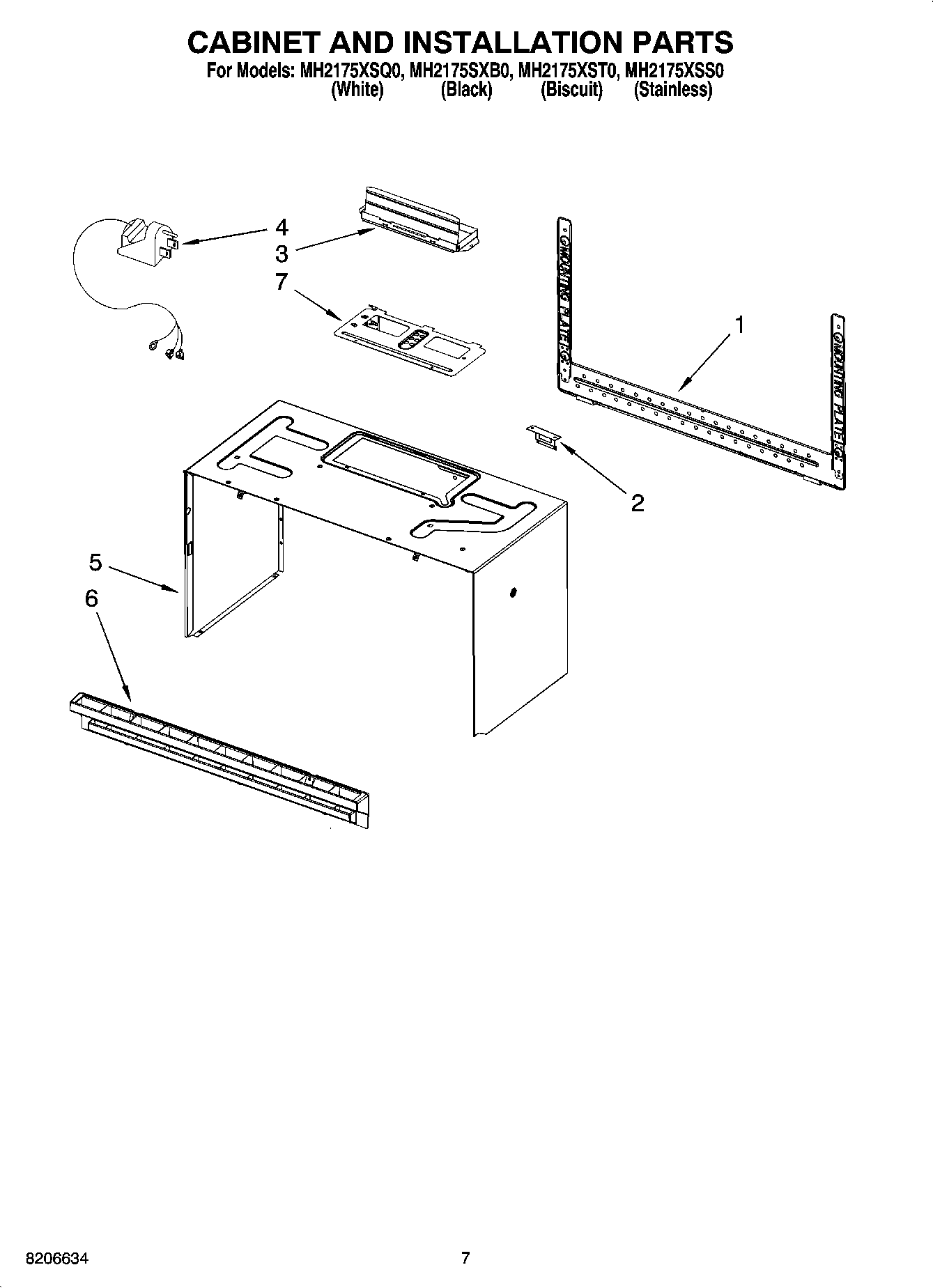

MH2175XSS0 06 – CABINET AND INSTALLATION PARTS

MH2175XSS0 06 – CABINET AND INSTALLATION PARTS

Written by

in

MH2175XSS0 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
1WPW10269225 Whirlpool Bracket Mounting
28206385 Whirlpool Microwave Wire Clip
3W10843943 Whirlpool Microwave Vent Damper
48206388 Whirlpool Microwave Power Cord
5Case, Outer (Black)
5Case, Outer (White)
5Case, Outer (Biscuit)
6W10269471 Whirlpool Microwave Vent Grille
6W10259625 Whirlpool Microwave Vent Grille
6W10139642 Whirlpool Microwave Vent Grill
7HV Trnsfrm Wr Assy
7Grnd Wire, Filter
7Harness Wire, NTC
7Ground Wire Assy.
7WP8169704 Whirlpool Screw
7Hdlmp/TT Wire Assy
7Main Harness
7H.V. Wire Assy
7Plate, Damper
7Template, Upper
78205948 Whirlpool Microwave Mount
7Miscellaneous
