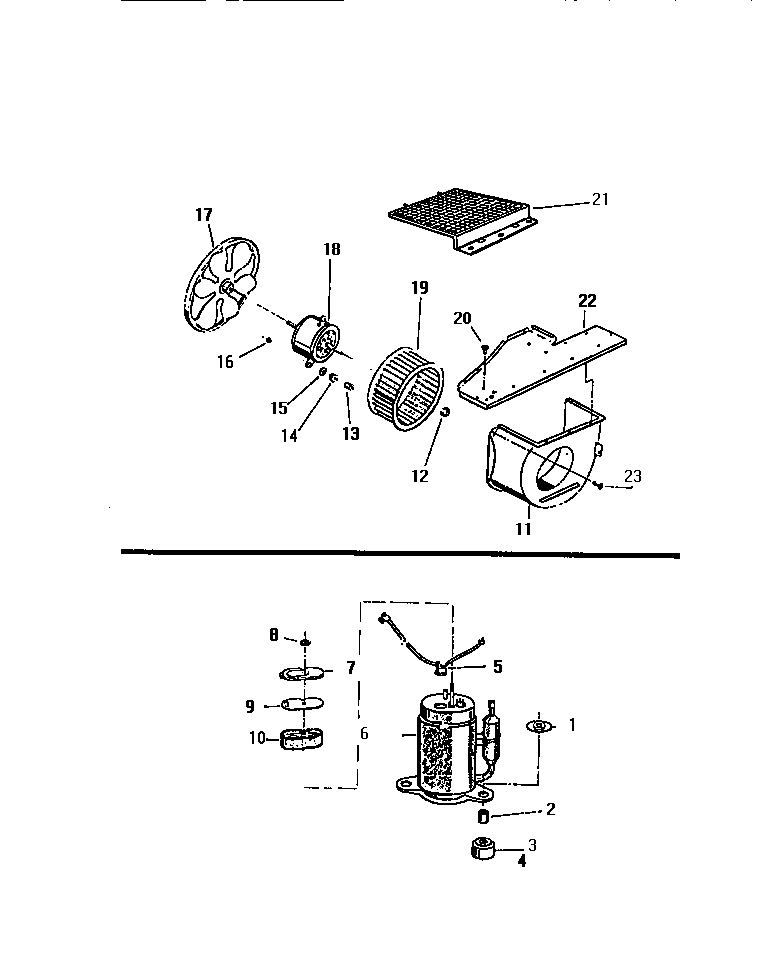

MH308C1QA 04 – AIR HANDLING PARTS, COMPRESSOR

Products

PositionProduct
*39163NUT – MOTOR MTG.
1NUT-COMPR. MTG. (2)
2WCI G516954
3GROMMET – COMPRESSOR (3)
4WCI G521096
5WCI G145296-66
6WCI G517297-01
7CAP – TERMINAL COVER
8WCI G516950
9WCI G516949
10COVER – TERMINAL
11HOUSING-BLO
12CLAMP-CMPR RING
13WCI G119302
14WCI G119108
15WASHER – 1/4
16NUT-MOTOR MTG ( 3 )
17BLADE-FAN
18WCI G519553
19WCI G151798
20SCREW (19)
21SCRW-NO. 8 X 3/8 (4)
21GUARD-BLO (NON-ILLUSTRATED)
22WCI G504104
23WCI G521208
