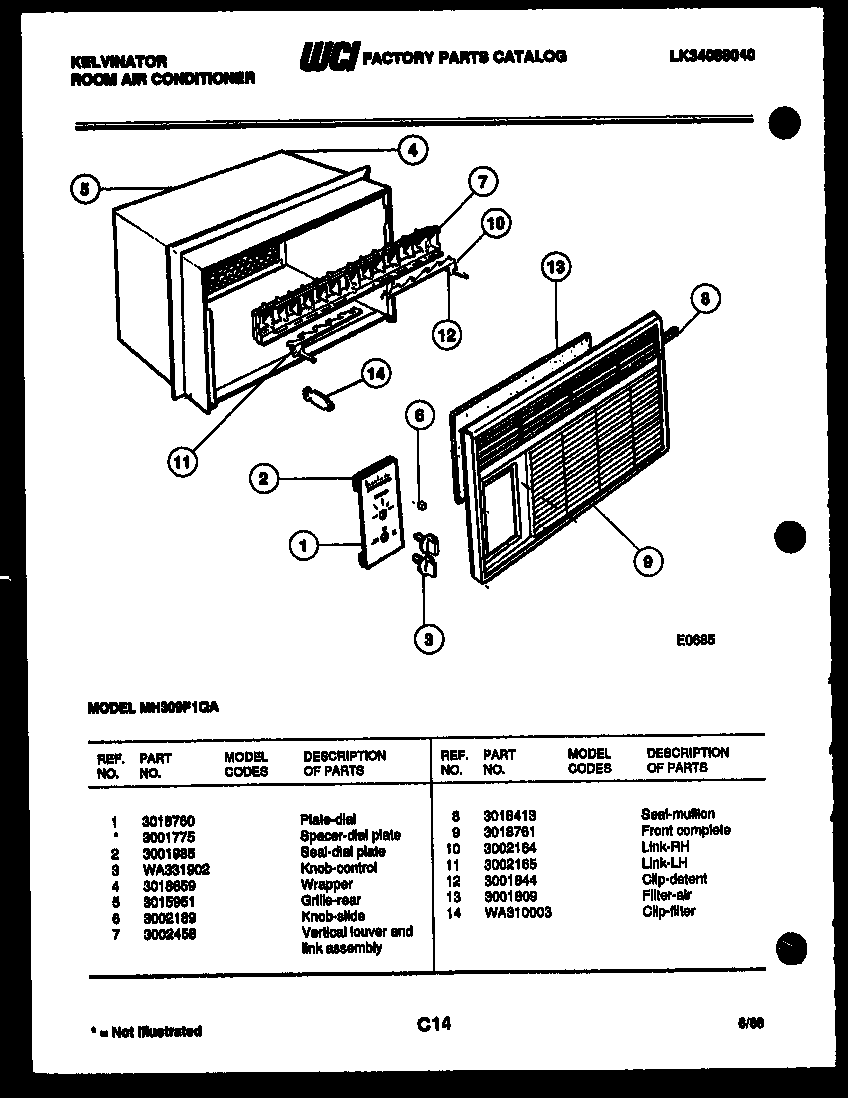

MH309F1QA 02 – CABINET PARTS

Written by

Products

Position	Product
1A	SPACER-DIAL PLATE, ( NON-ILLUSTRATED)
1	WCI 3018760
2	WCI 3001985
3	WCI WA331902
4	WCI 3018659
5	GRILL-REAR
6	WCI 3002189
7	VERT LOUVER AND LINK ASSY
8	WCI 3018413
9	WCI 3018761
10	LINK-VERT LOUVER RH
11	LINK- VERT LOUVER LH
12	CLIP-DETENT
13	WCI 3001809
14	CLIP-RETAINER
