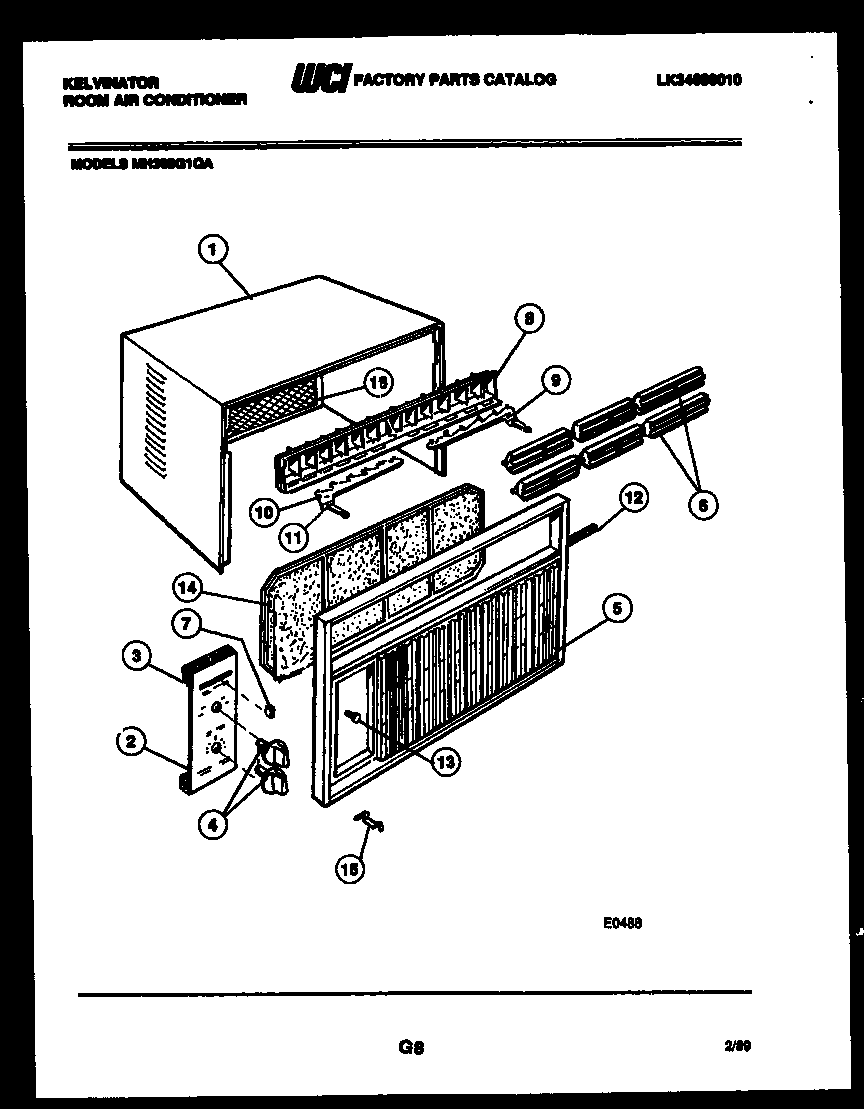

MH309G1QA 02 – CABINET PARTS

Products

Position	Product
*92412	NUT – FRONT LOCK
*92416	SPACER-DIAL PLATE, ( NON-ILLUSTRATED)
*92416	SEAL TOP FRAME
1	WCI 3203257
2	WCI 3018760
3	SEAL-DIAL PLATE
4	WCI A000331902
5	WCI 3203264
6A	RETAINER-HORIZONTAL LOUVER (NON-ILLUSTRATED)
6	WCI 3200343
7	WCI 3002189
8	VERT LOUVER AND LINK ASSY
9	LINK-VERT LOUVER RH
10	LINK- VERT LOUVER LH
11	CLIP-DETENT
12	WCI 3018413
13	WCI 3017304
14	WCI 3001809
14A	WCI 3002170
15	CLIP – SPRING (NON-ILLUSTRATED)
16	WCI 3203120
