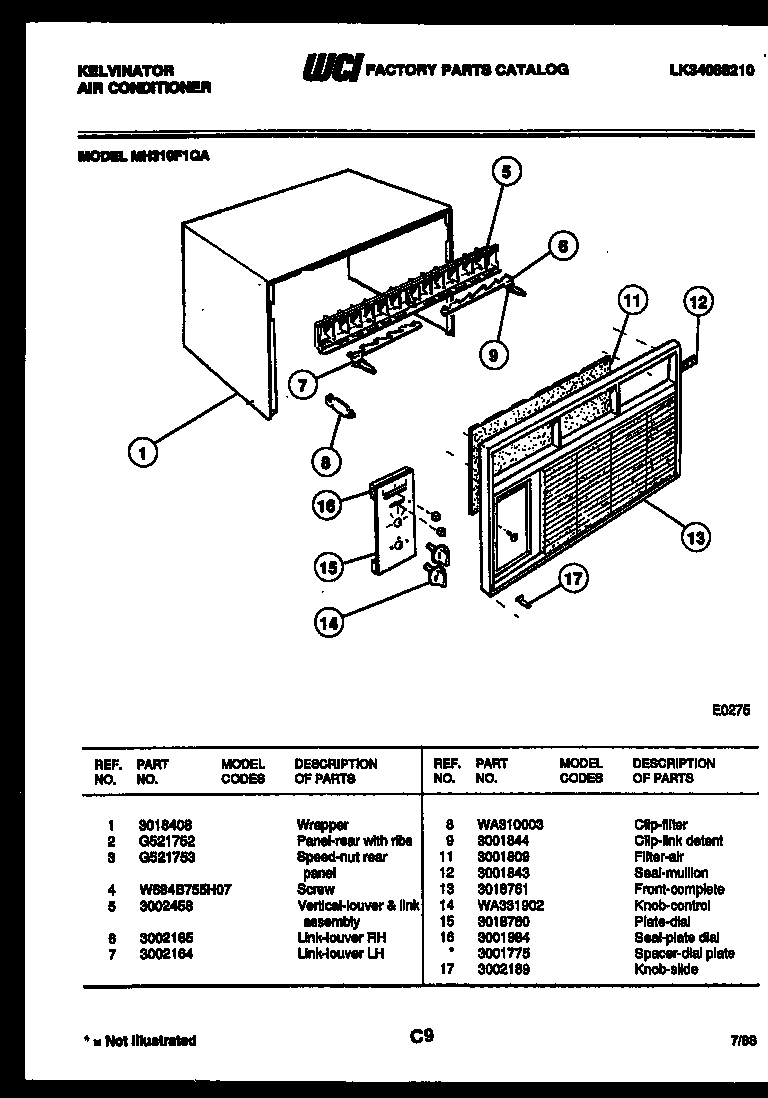

MH310F1QA 02 – CABINET PARTS

Products

Position	Product
1	WRAPPER
2	WCI G521752
3	WCI G521753
4	WCI W684B755H07
5	VERT LOUVER AND LINK ASSY
6	LINK- VERT LOUVER LH
7	LINK-VERT LOUVER RH
8	CLIP-RETAINER
9	CLIP-DETENT
11	WCI 3001809
12	WCI 3001843
13	WCI 3018761
14	WCI WA331902
15	WCI 3018760
16A	SPACER-DIAL PLATE, ( NON-ILLUSTRATED)
16	SEAL-DIAL PLATE
17	WCI 3002189
