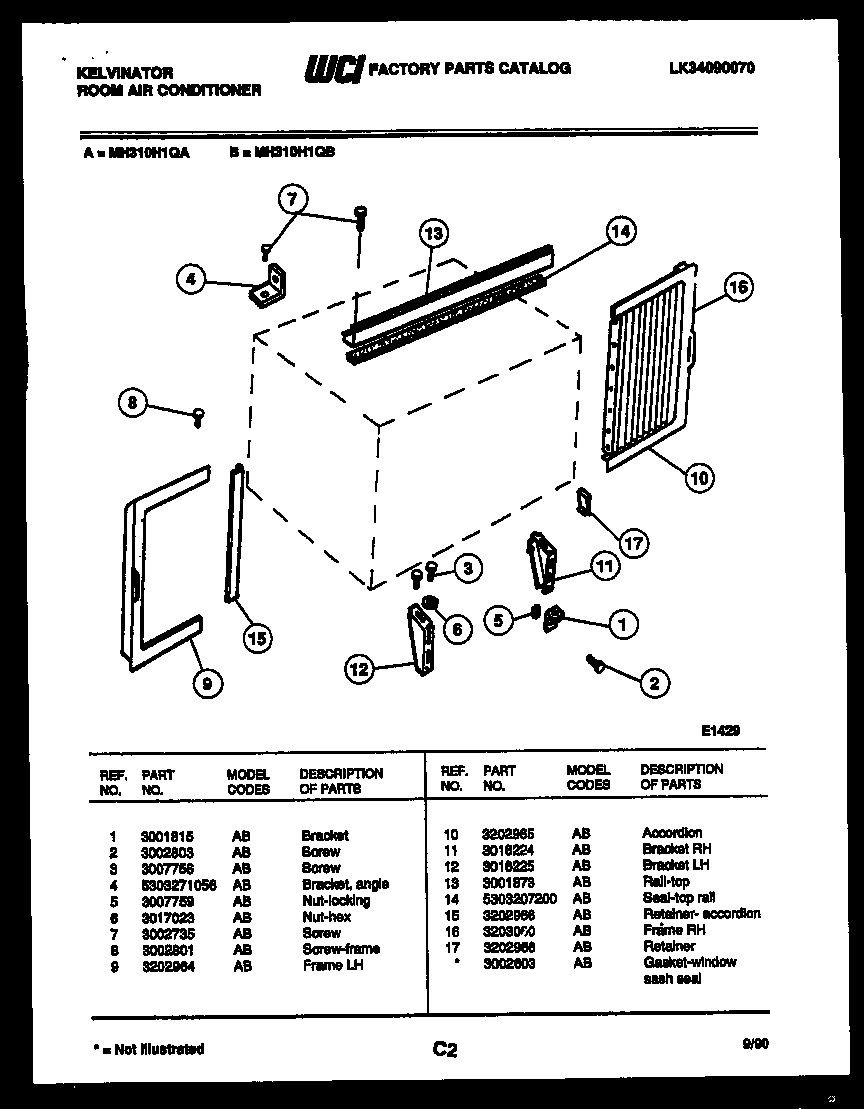

MH310H1QB 08 – CABINET AND INSTALLATION PARTS

Written by

Products

Position	Product
*17701	5304407729 Frigidaire Air Conditioner Seal
1	BRACKET – SUPPORT
2	SCREW-WOOD
3	SCREW – SILL SUPT
4	WCI 5303271056
5	NUT – BRACKET
6	316205500 Frigidaire Oven Nut
7	WCI 3002735
8	WCI 3002801
9	WCI 3202964
10	ACCORDION
11	WCI 3016224
12	WCI 3016225
13	SUPPORT-TOP
14	WCI 5303207200
16	WCI 3203060
17	RETAINER, ACCORDION
