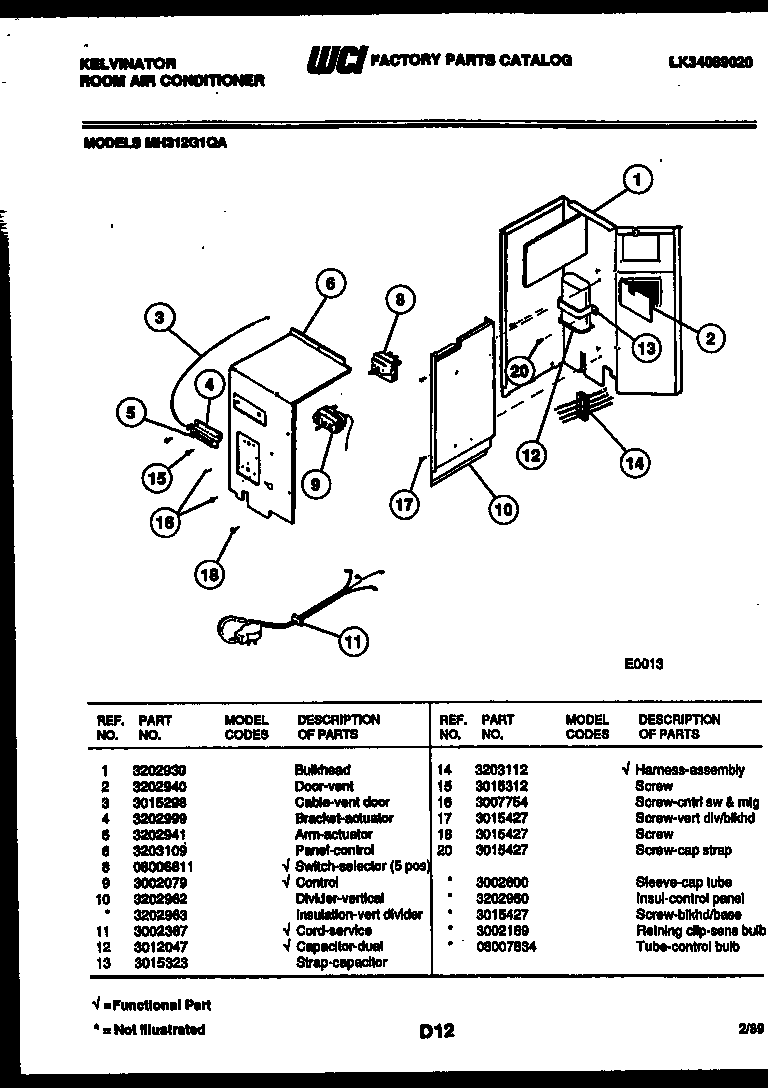

MH312G1QA 03 – ELECTRICAL PARTS

Products

Position	Product
*11252	SLEEVE-CONTROL TUBE (NON-ILLUSTRATED)
*11252	INSULATION-CONTROL PANEL TOP
*11253	TUBE-CONTROL BULB
*11252	WCI 3002169
1	WCI 3202939
2	WCI 3202940
3	CABLE - DOR VENT
4	WCI 3202999
5	ACTUATOR-ARM
6	WCI 3203109
8	SWITCH-SELECTOR (5 POS)
9	WCI 3002079
10A	WCI 3202963
10	DIVIDER
11	WCI 3002367
12	CAPACITOR-DUAL
13	STRAP - CAPACITATOR
14	WCI 3203112
15	134178901 Frigidaire Screw
16	SCREW-CONT AND SWITCH MTG (NON-ILLUSTRATED)
