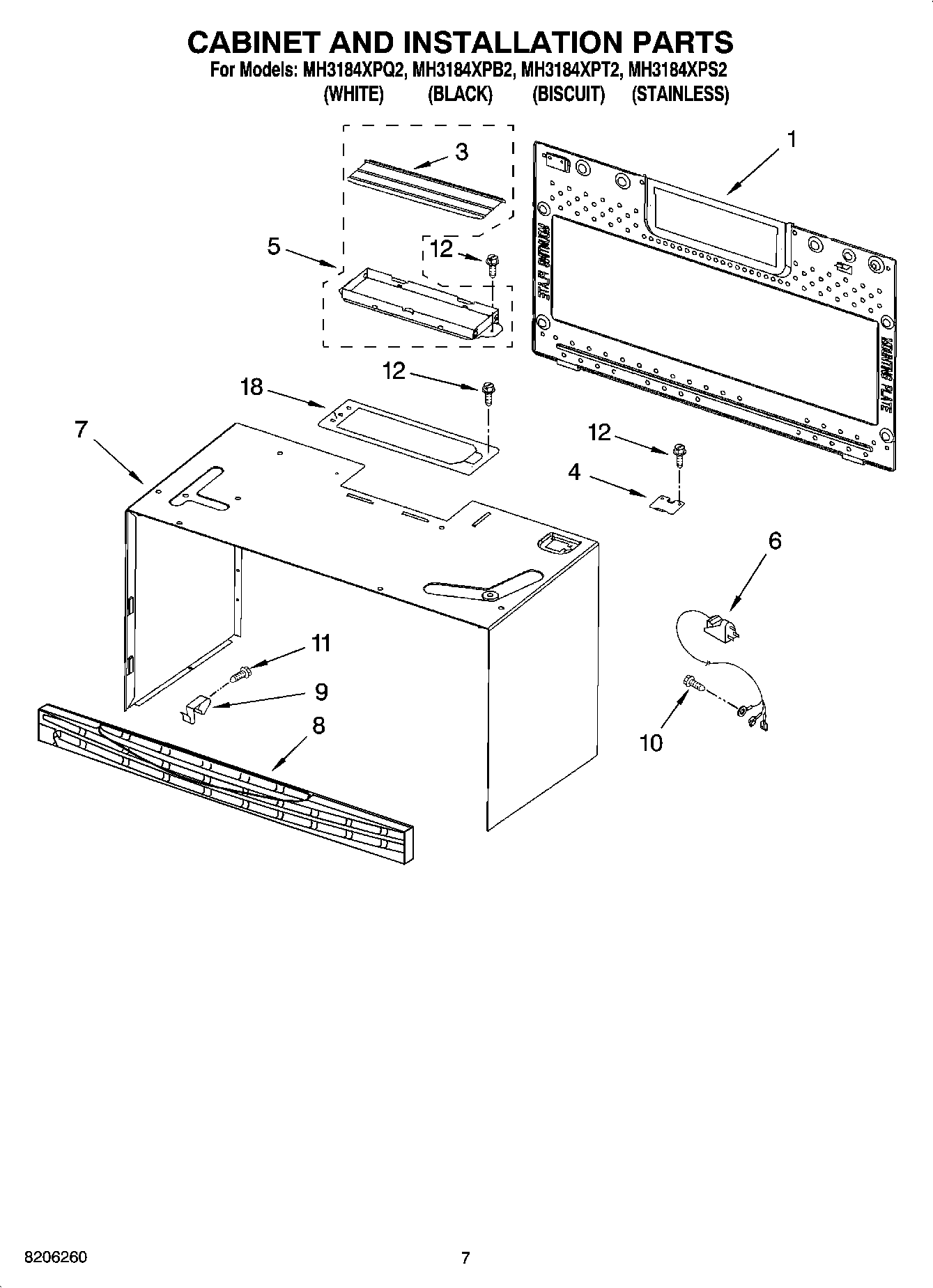

MH3184XPB2 06 – CABINET AND INSTALLATION PARTS

MH3184XPB2 06 – CABINET AND INSTALLATION PARTS

Written by

in

MH3184XPB2 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
1Plate, Mounting
3W10843943 Whirlpool Microwave Vent Damper
4Lid, Power Cord
6W10708076 Whirlpool Microwave Power Cord
7Case, Outer
7Case, Outer (White)
7Case, Outer (Biscuit)
8W10450172 Whirlpool Microwave Grille Vent
8W10450187 Whirlpool Microwave Oven Vent Grille
8Grille, Vent (Biscuit)
9W10615742 Whirlpool Microwave Clip
104393836 Whirlpool Microwave Screw
11Screw
12W11380570 Whirlpool Microwave Screw
18Main Harness
18Plate, Damper
18H.V. Wire Assy
18Template, Upper
188205948 Whirlpool Microwave Mount
18W10539840 Whirlpool Microwave Wire Harness
18WP8169704 Whirlpool Screw
18Miscellaneous
