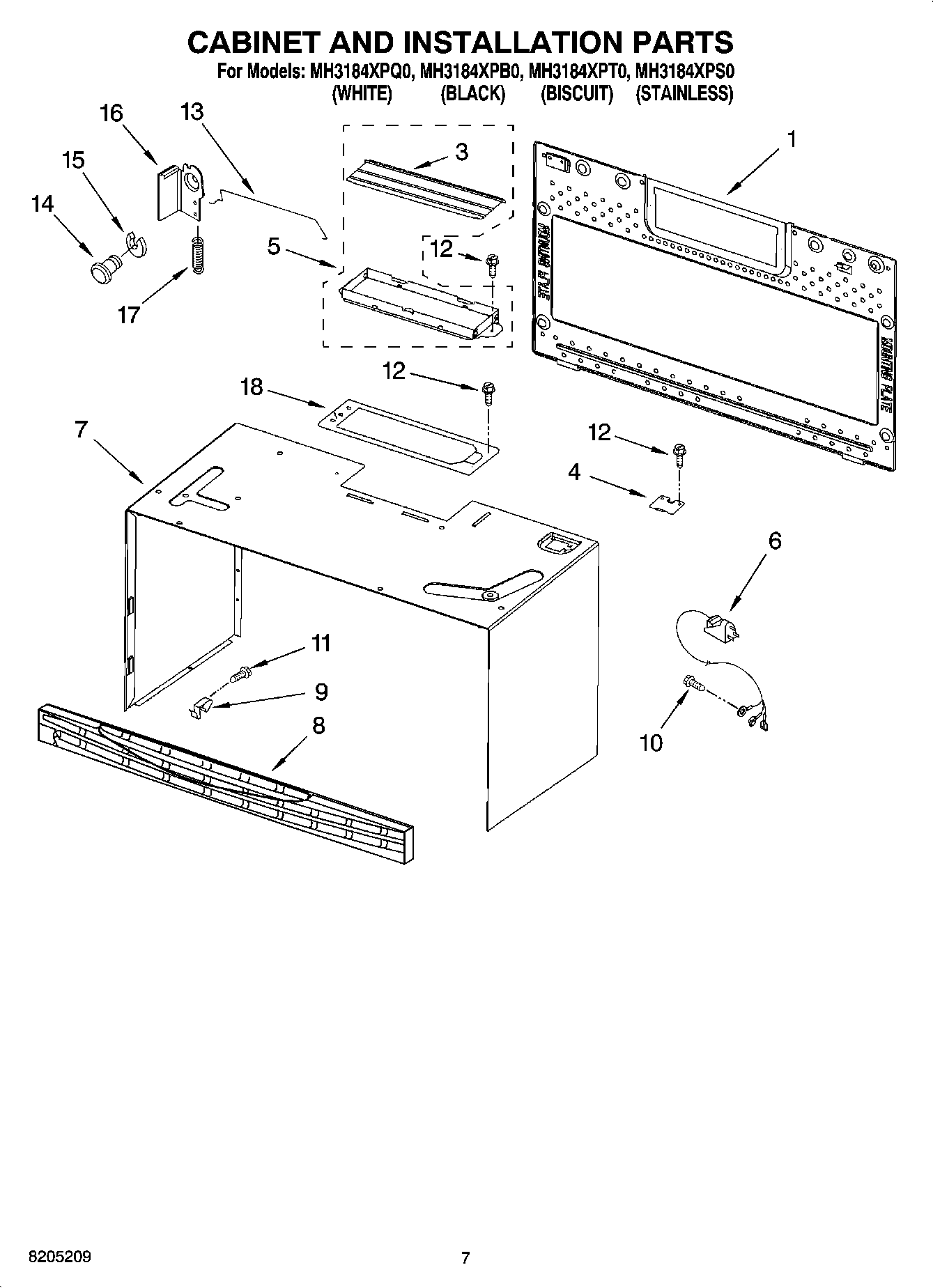

MH3184XPQ0 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
1	Plate, Mounting
3	W10843943 Whirlpool Microwave Vent Damper
4	Lid, Power Cord
6	W10708076 Whirlpool Microwave Power Cord
7	Case, Outer
7	Case, Outer (Biscuit)
7	Case, Outer (White)
8	W10450187 Whirlpool Microwave Oven Vent Grille
8	Grille, Vent (Biscuit)
8	W10450172 Whirlpool Microwave Grille Vent
9	W10615742 Whirlpool Microwave Clip
10	4393836 Whirlpool Microwave Screw
11	Screw
12	W11380570 Whirlpool Microwave Screw
13	Rod
14	Latch, Pivot
15	E-Ring
16	Catch
17	Spring
18	Hardware, Installation
18	WP8169704 Whirlpool Screw
18	W10539840 Whirlpool Microwave Wire Harness
18	Template, Upper
18	Lamp/Turntable Wire Assembly
18	Main Harness
18	H.V. Wire Assy
18	Plate, Damper
18	Template, Wall
18	Miscellaneous
