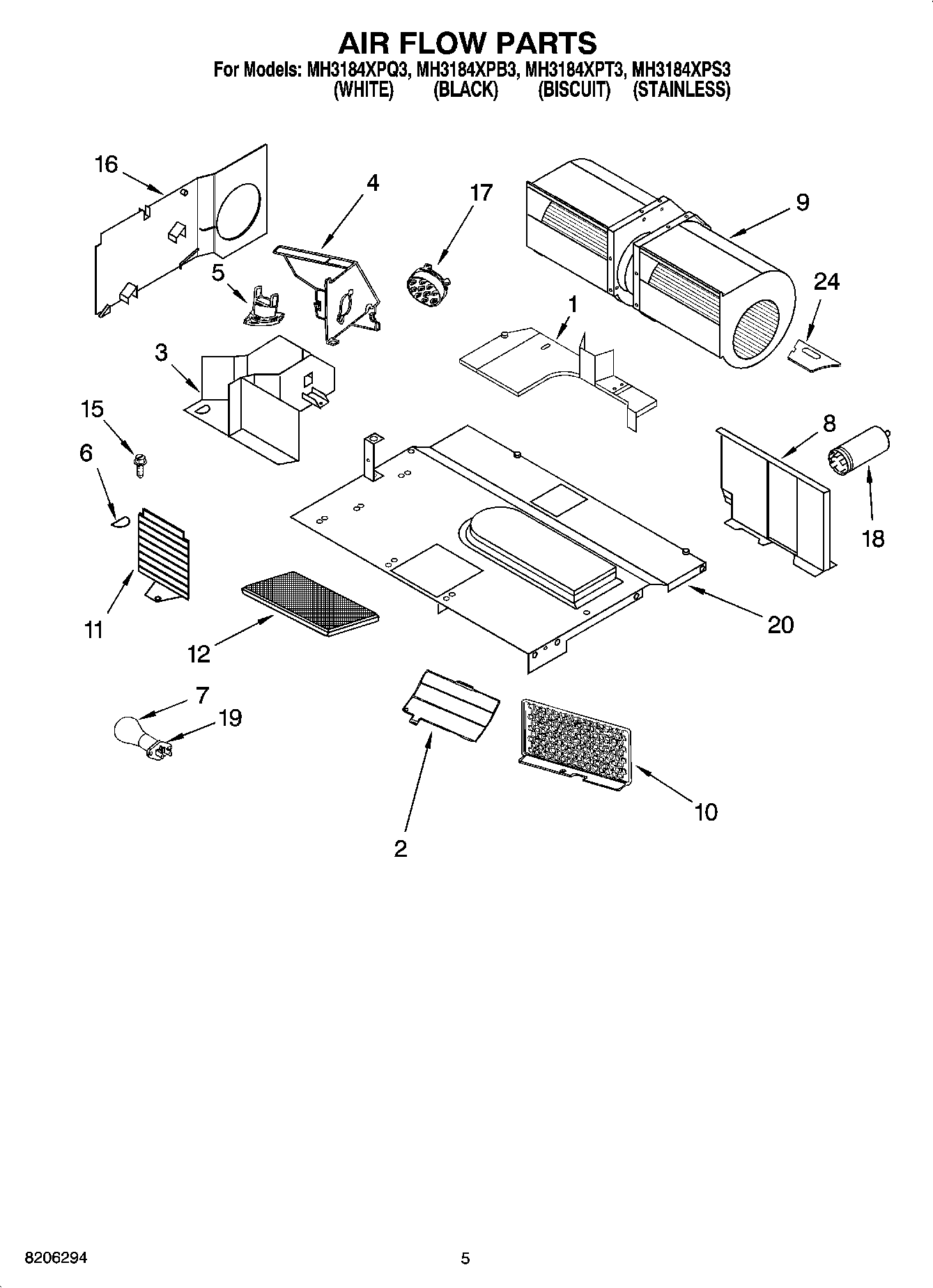

MH3184XPQ3 04 – AIR FLOW PARTS

Products

Position	Product
1	Deflector, Air
2	Cover, Lamp
3	Duct, Air
4	Bracket, Thermostat
5	Thermostat
6	Cover
7	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
8	Air Guide, Back
9	Motor, Fan Assy
10	Shield
11	Shield
12	8205146A Whirlpool Microwave Oven Range Vent Hood Charcoal Filter
15	Screw
16	Air Guide (Left)
16	Air Guide (Right)
17	Humidity, Sensor
18	Filter
19	8169539 Whirlpool Microwave Light Bulb Socket and Housing
20	Base Plate, Air Guide
24	Socket, Motor Wire
