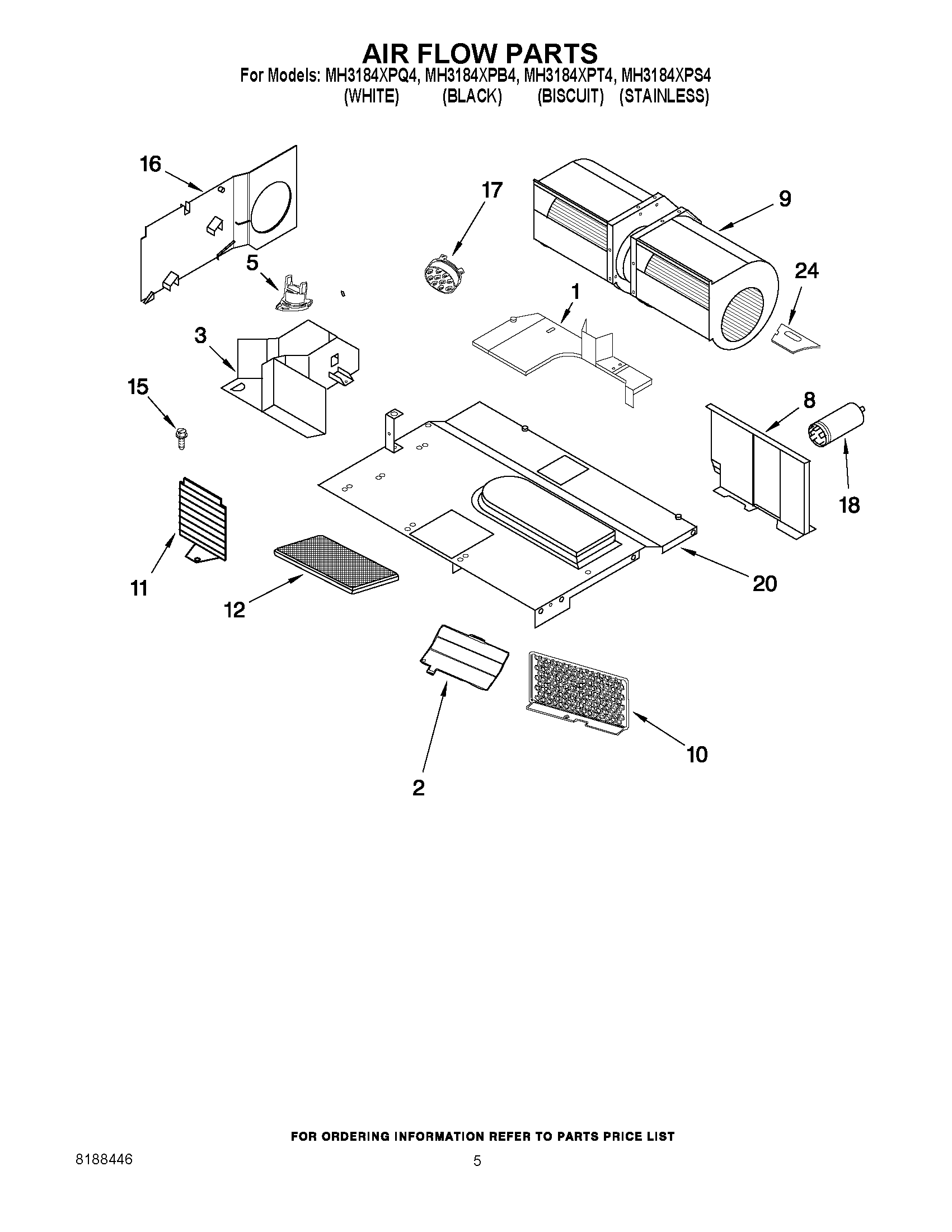

MH3184XPQ4 04 – AIR FLOW PARTS

Written by

Products

Position	Product
1	Deflector, Air
2	Cover, Lamp
3	Duct, Air
5	Thermostat
8	Air Guide, Back
9	Motor, Fan Assy
10	Shield
11	SHIELD
12	8205146A Whirlpool Microwave Oven Range Vent Hood Charcoal Filter
15	Screw
16	Air Guide (Right)
16	Air Guide (Left)
17	Humidity, Sensor
18	Filter
20	Base Plate, Air Guide
24	Socket, Motor Wire
