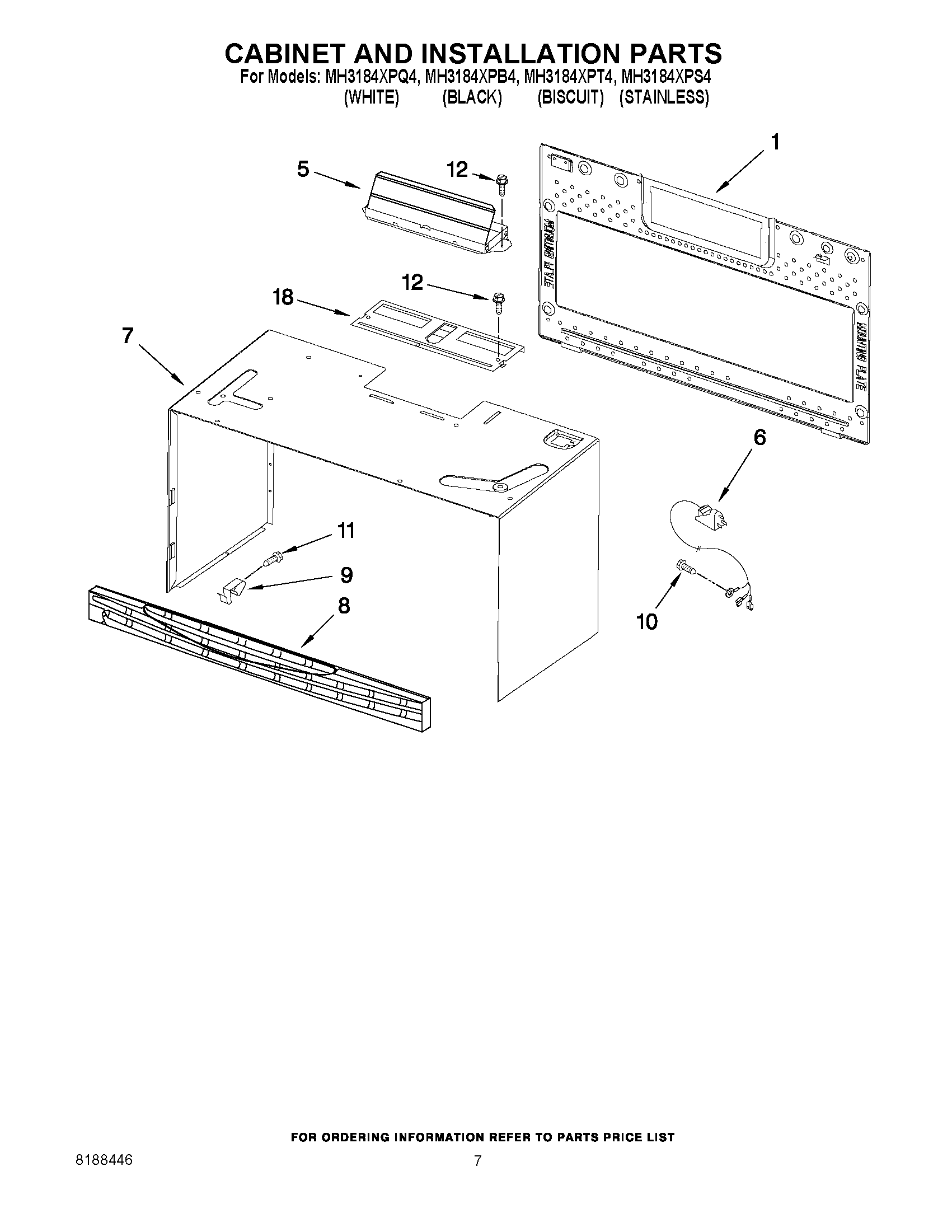

MH3184XPQ4 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	Harness, Turntable and Cooktop Lights
NI	Wre-Grnd AC Fltr
NI	Wre-Grnd Hum Snsr
NI	Wre-Grnd Cav Lck
NI	Main Harness
NI	Wre-Grnd Fuse
NI	H.V. Wire Assy
NI	Template, Upper
NI	Wre-Grnd Thrmst
NI	WP8169704 Whirlpool Screw
NI	8205948 Whirlpool Microwave Mount
NI	W10539840 Whirlpool Microwave Wire Harness
1	WPW10269225 Whirlpool Bracket Mounting
5	W10843943 Whirlpool Microwave Vent Damper
6	W10708076 Whirlpool Microwave Power Cord
7	Case, Outer (Biscuit)
7	Case, Outer (White)
7	Case, Outer
8	W10450172 Whirlpool Microwave Grille Vent
8	W10450187 Whirlpool Microwave Oven Vent Grille
8	Grille, Vent (Biscuit)
9	W10615742 Whirlpool Microwave Clip
10	4393836 Whirlpool Microwave Screw
11	Screw
12	W11380570 Whirlpool Microwave Screw
18	Cover, Fan Mtr
