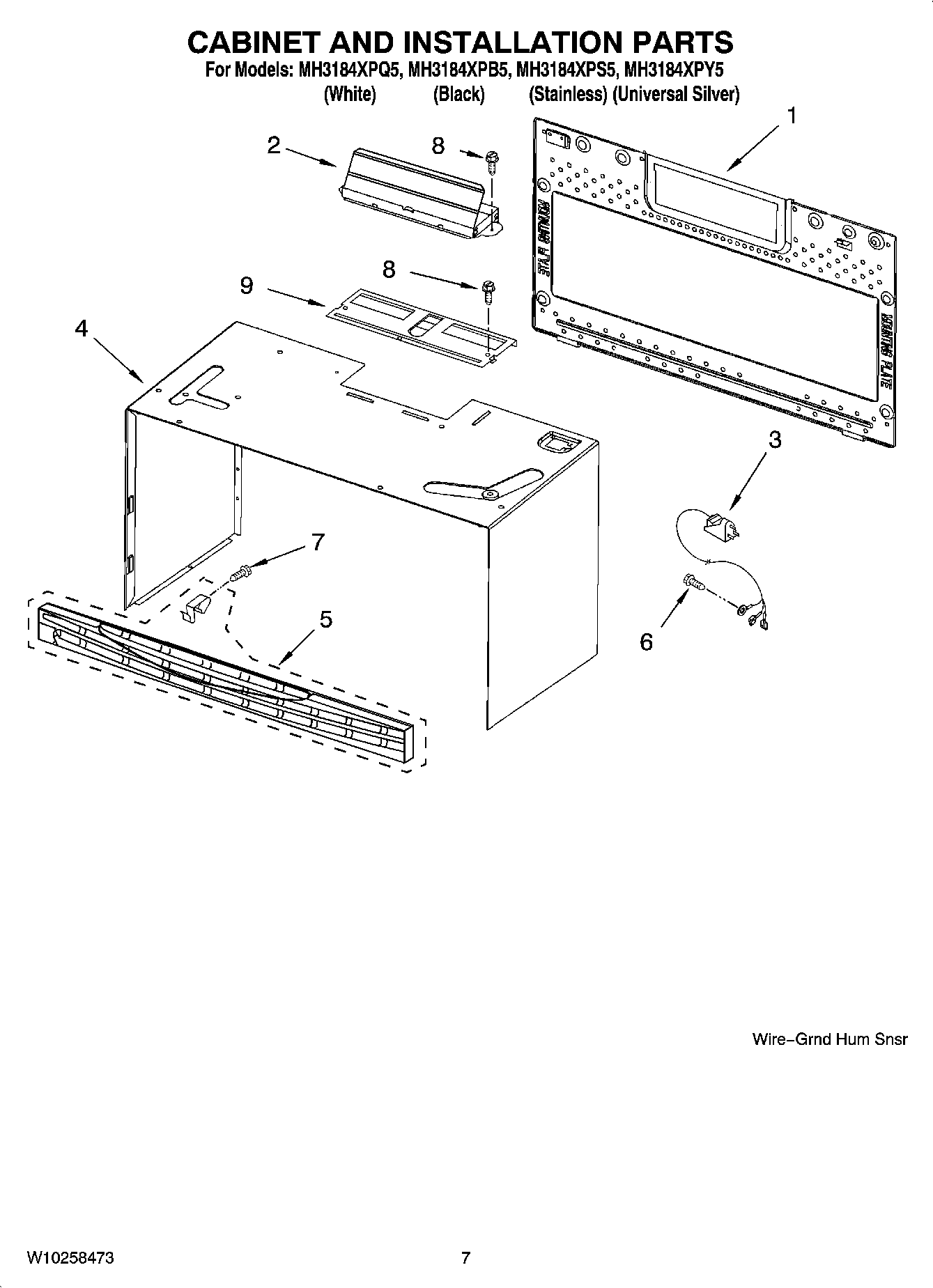

MH3184XPQ5 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
	Cavity Thrmst 1-2
	Wire, Stirrer
	8206185 Whirlpool Microwave Wire Harness
	Miscellaneous
	Harns-Wire, Grill
	P27 to CN153
	P4 to CN151
	Cavity Thrmst 2-3
	H.V. Wire Assy
	Inverter, Grnd
	Socket-Lmp
	W10615910 Whirlpool Microwave Wire Harness
	WP8169704 Whirlpool Screw
	PCBA
	8205948 Whirlpool Microwave Mount
	Template, Upper
	Harns-Wire (Main Filter)
	Main Harness
1	WPW10269225 Whirlpool Bracket Mounting
2	W10843943 Whirlpool Microwave Vent Damper
3	W10708076 Whirlpool Microwave Power Cord
4	Case, Outer (Black)
4	Case, Outer (White)
5	W10450187 Whirlpool Microwave Oven Vent Grille
5	W10450172 Whirlpool Microwave Grille Vent
5	Grille, Vent
6	4393836 Whirlpool Microwave Screw
7	Screw
8	W11380570 Whirlpool Microwave Screw
9	Cover, Fan Mtr
