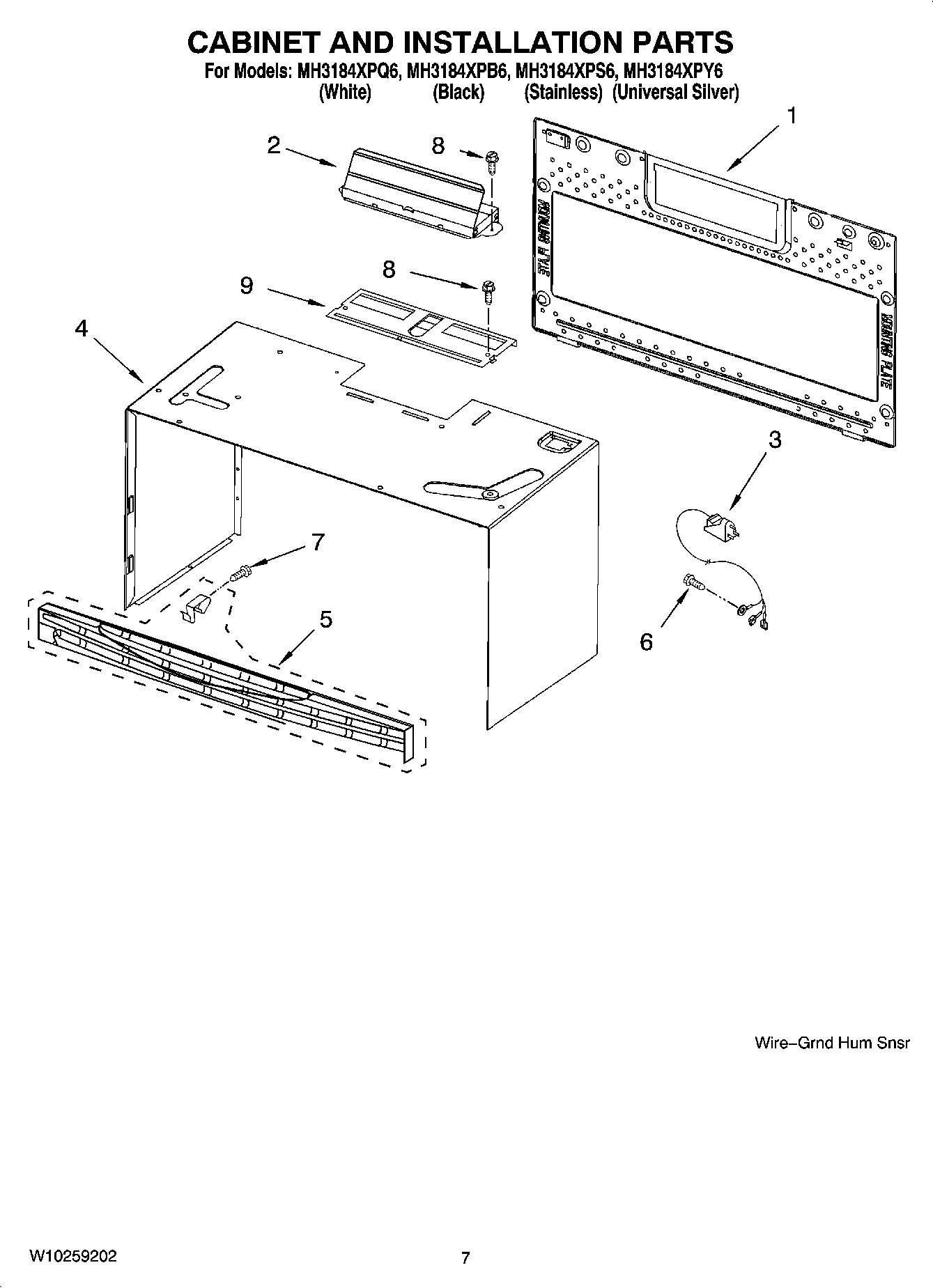

MH3184XPQ6 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
P27 to CN153
Wire, Stirrer
8206185 Whirlpool Microwave Wire Harness
Harns-Wire, Grill
Cavity Thrmst 2-3
P4 to CN151
Cavity Thrmst 1-2
H.V. Wire Assy
PCBA
Socket-Lmp
Main Harness
W10615910 Whirlpool Microwave Wire Harness
WP8169704 Whirlpool Screw
Inverter, Grnd
8205948 Whirlpool Microwave Mount
Template, Upper
Miscellaneous
Harns-Wire (Main Filter)
1WPW10269225 Whirlpool Bracket Mounting
2W10843943 Whirlpool Microwave Vent Damper
3W10708076 Whirlpool Microwave Power Cord
4Case, Outer (White)
4Case, Outer (Black)
5W10450187 Whirlpool Microwave Oven Vent Grille
5W10450172 Whirlpool Microwave Grille Vent
5Grille, Vent
64393836 Whirlpool Microwave Screw
7Screw
8W11380570 Whirlpool Microwave Screw
9Cover, Fan Mtr
