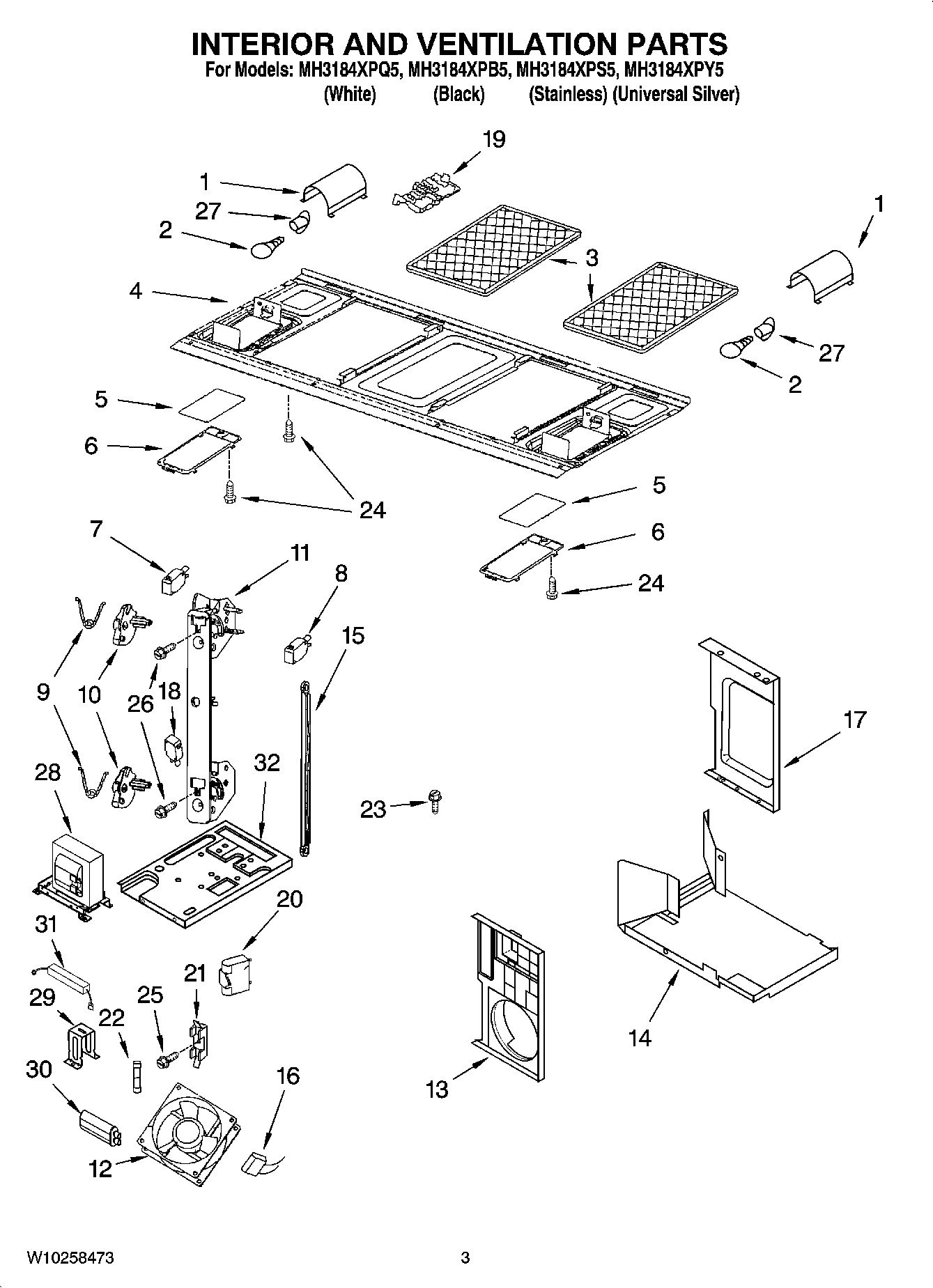

MH3184XPS5 03 – INTERIOR AND VENTILATION PARTSadmin2025-04-26T10:32:30+00:00MH3184XPS5 03 – INTERIOR AND VENTILATION PARTS
Products
| Position | Product |
|---|
| 1 | Reflector, Lamp |
| 2 | 8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb |
| 3 | W10113040A Whirlpool Grease Filter Aluminum |
| 4 | Plate, Bottom |
| 5 | Glass, Lamp |
| 6 | Holder, Glass |
| 7 | W10211972 Whirlpool Microwave Switch |
| 8 | W10211974 Whirlpool Microwave Door Interlock Micro Switch |
| 9 | Spring, Interlock |
| 10 | Plate, Cam |
| 11 | Support, Interlock |
| 12 | Fan, DC 12 Volt |
| 13 | Housing, Fan |
| 14 | Diffuser, Housing |
| 15 | Rod-Locking Link |
| 17 | Plate, Side |
| 18 | W10269458 Whirlpool Microwave Door Switch |
| 19 | Cover, Terminal |
| 20 | Motor, Capacitor |
| 21 | HOLDER, FUSE |
| 22 | FUSE-THRML |
| 23 | SCREW |
| 24 | W11380570 Whirlpool Microwave Screw |
| 25 | SCREW |
| 26 | 8169479 Whirlpool Microwave Screw |
| 27 | WPW10210878 Whirlpool Microwave LMP Housing |
| 28 | Transformer, H.V. |
| 29 | Bracket, Capacitor |
| 30 | Capacitor, H.V. |
| 31 | W11256462 Whirlpool Microwave Diode |
| 32 | Chassis |
