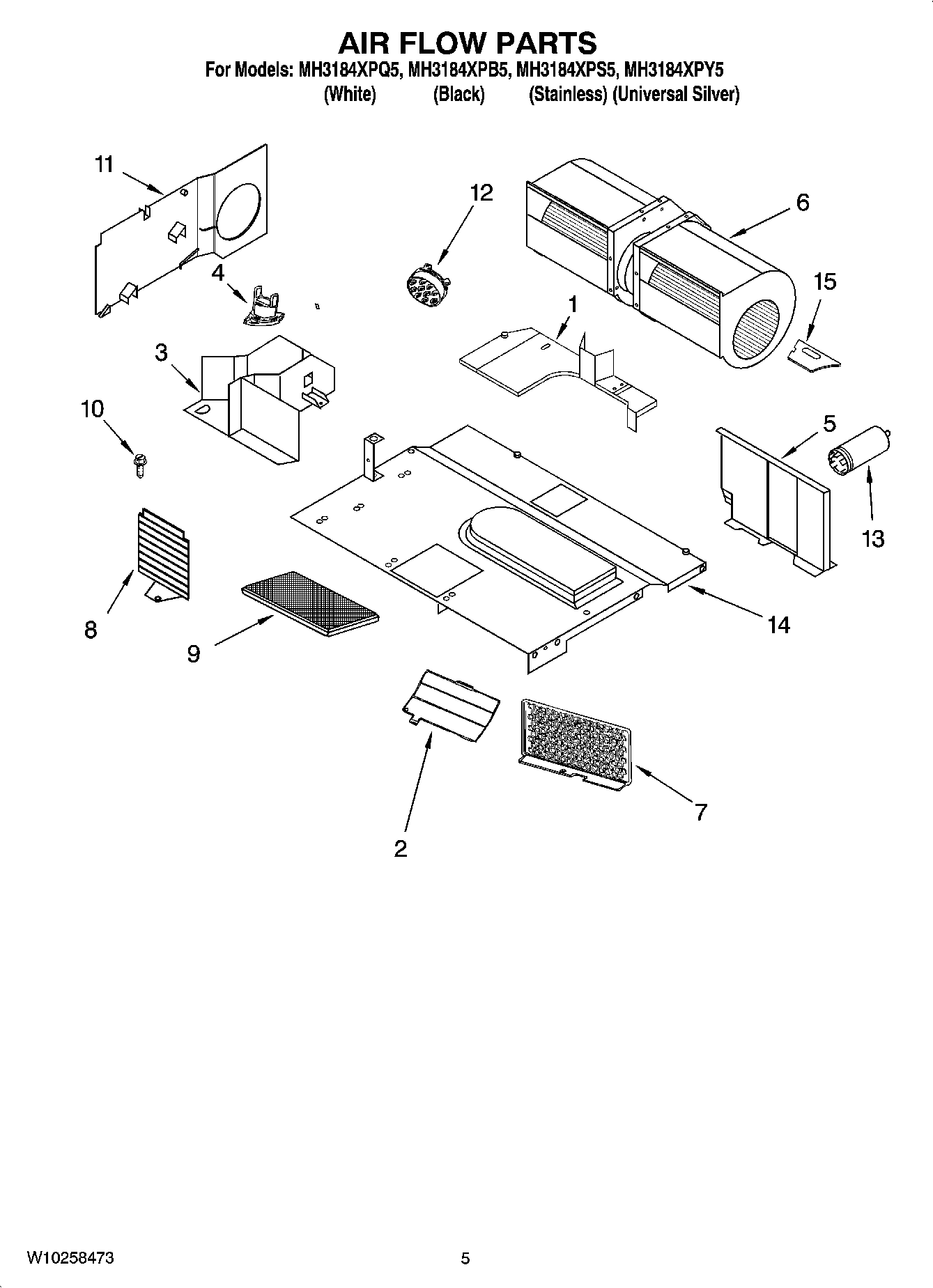

MH3184XPS5 04 – AIR FLOW PARTS

Written by

Products

Position	Product
1	Deflector, Air
2	Cover, Lamp
3	Duct, Air
4	Thermostat
5	Air Guide, Back
6	Motor, Fan Assy
7	Shield
8	SHIELD
9	8205146A Whirlpool Microwave Oven Range Vent Hood Charcoal Filter
10	Screw
11	Air Guide (Left)
11	Air Guide (Right)
12	Humidity, Sensor
13	Filter
14	Base Plate, Air Guide
15	SOCKET, MOTOR WIRE
