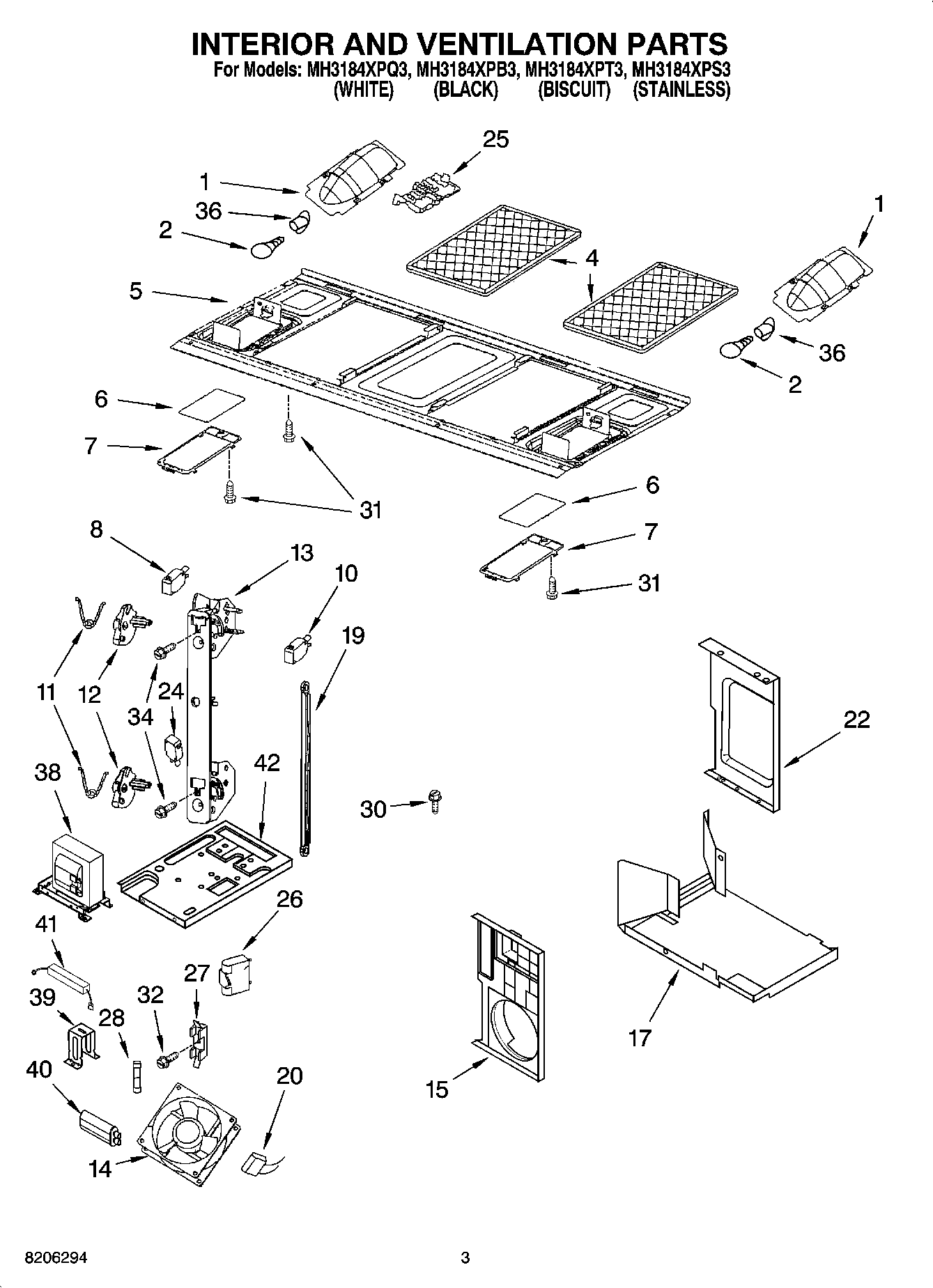

MH3184XPT3 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	Reflector, Lamp
2	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
4	W10113040A Whirlpool Grease Filter Aluminum
5	Plate, Bottom
6	Glass, Lamp
7	Holder, Glass
8	W10211972 Whirlpool Microwave Switch
10	W10211974 Whirlpool Microwave Door Interlock Micro Switch
11	Spring, Interlock
12	Plate, Cam
13	Support, Interlock
14	Fan, DC 12 Volt
15	Housing, Fan
17	Diffuser, Housing
19	Rod-Locking Link
20	Capacitor, 125 V
22	Plate, Side
24	W10269458 Whirlpool Microwave Door Switch
25	Cover, Terminal
26	Motor, Capacitor
27	Holder, Fuse
28	FUSE-THRML
30	SCREW
31	W11380570 Whirlpool Microwave Screw
32	SCREW
34	8169479 Whirlpool Microwave Screw
36	8169539 Whirlpool Microwave Light Bulb Socket and Housing
38	Transformer, H.V.
39	Bracket, Capacitor
40	Capacitor, H.V.
41	W11256462 Whirlpool Microwave Diode
42	Chassis
