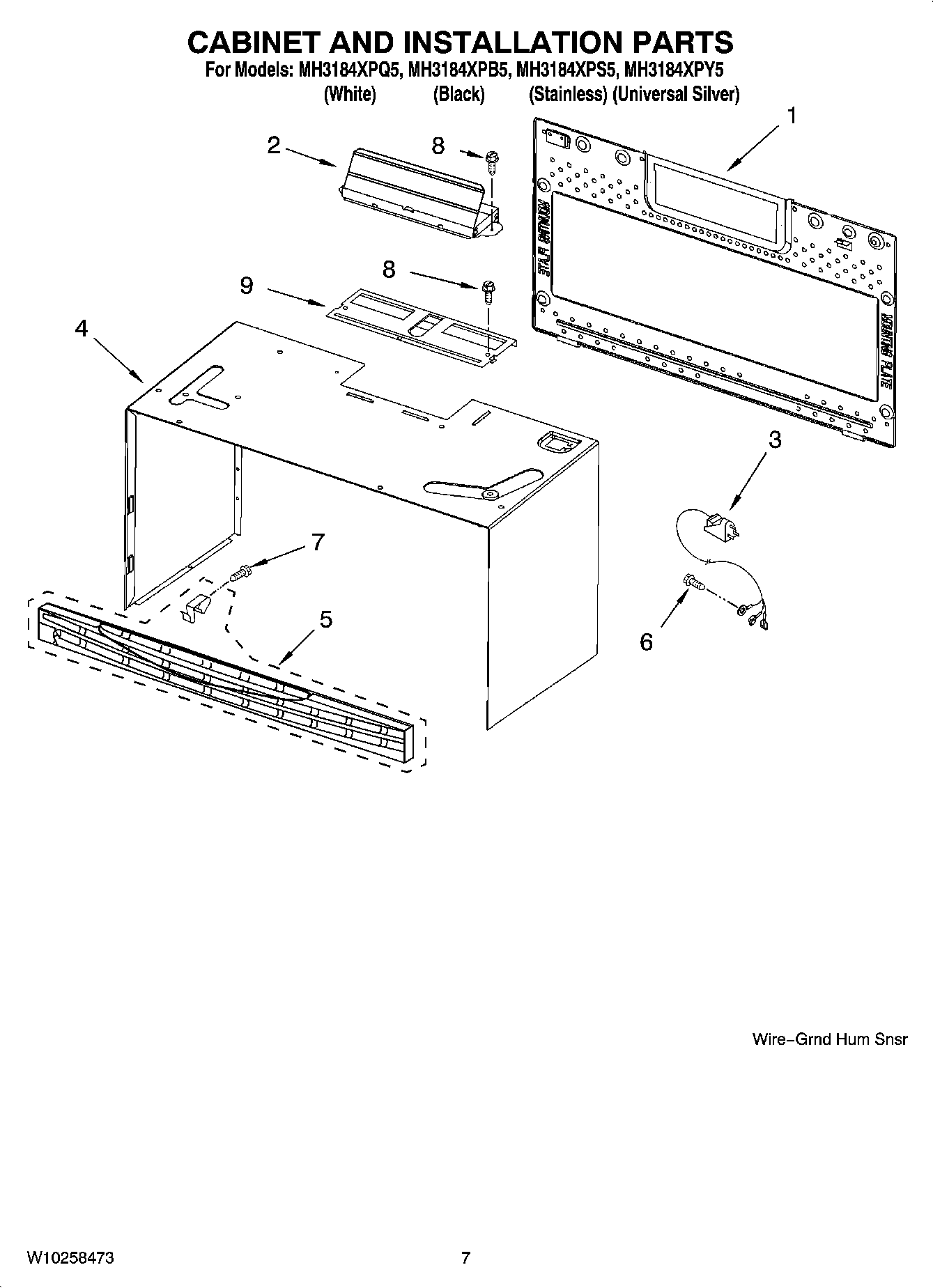

MH3184XPY5 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
Miscellaneous
P4 to CN151
H.V. Wire Assy
PCBA
Inverter, Grnd
Cavity Thrmst 1-2
Cavity Thrmst 2-3
Harns-Wire, Grill
Wire, Stirrer
Socket-Lmp
Main Harness
Harns-Wire (Main Filter)
P27 to CN153
8206185 Whirlpool Microwave Wire Harness
Template, Upper
WP8169704 Whirlpool Screw
W10615910 Whirlpool Microwave Wire Harness
8205948 Whirlpool Microwave Mount
1WPW10269225 Whirlpool Bracket Mounting
2W10843943 Whirlpool Microwave Vent Damper
3W10708076 Whirlpool Microwave Power Cord
4Case, Outer (White)
4Case, Outer (Black)
5W10450172 Whirlpool Microwave Grille Vent
5Grille, Vent
5W10450187 Whirlpool Microwave Oven Vent Grille
64393836 Whirlpool Microwave Screw
7Screw
8W11380570 Whirlpool Microwave Screw
9Cover, Fan Mtr
