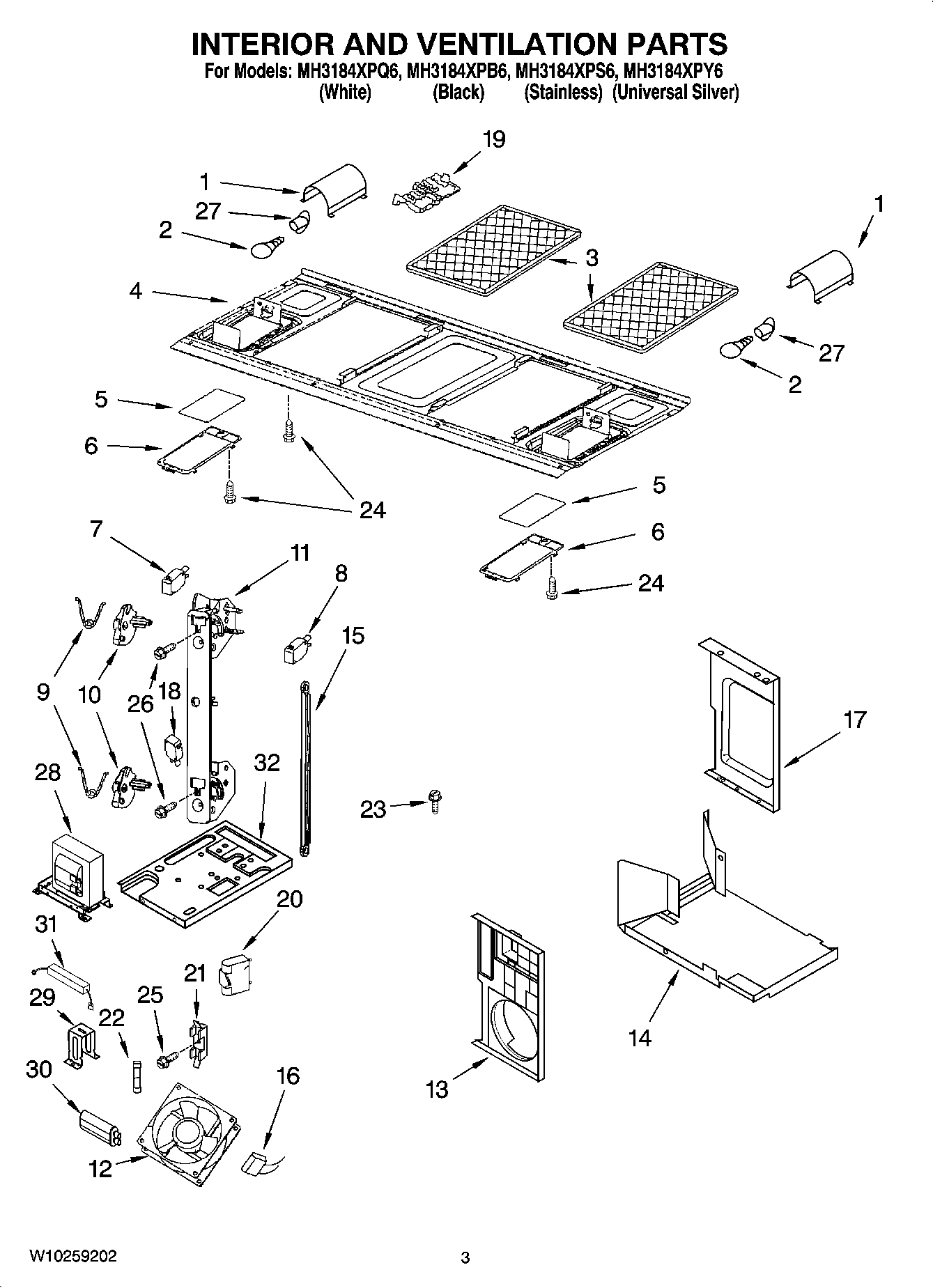

MH3184XPY6 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	Reflector, Lamp
2	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3	W10113040A Whirlpool Grease Filter Aluminum
4	Plate, Bottom
5	Glass, Lamp
6	Holder, Glass
7	W10211972 Whirlpool Microwave Switch
8	W10211974 Whirlpool Microwave Door Interlock Micro Switch
9	Spring, Interlock
10	Plate, Cam
11	Support, Interlock
12	Fan, DC 12 Volt
13	Housing, Fan
14	Diffuser, Housing
15	Rod-Locking Link
17	Plate, Side
18	W10269458 Whirlpool Microwave Door Switch
19	Cover, Terminal
20	Motor, Capacitor
21	HOLDER, FUSE
22	FUSE-THRML
23	SCREW
24	W11380570 Whirlpool Microwave Screw
25	SCREW
26	8169479 Whirlpool Microwave Screw
27	WPW10210878 Whirlpool Microwave LMP Housing
28	Transformer, H.V.
29	Bracket, Capacitor
30	Capacitor, H.V.
31	W11256462 Whirlpool Microwave Diode
32	Chassis
