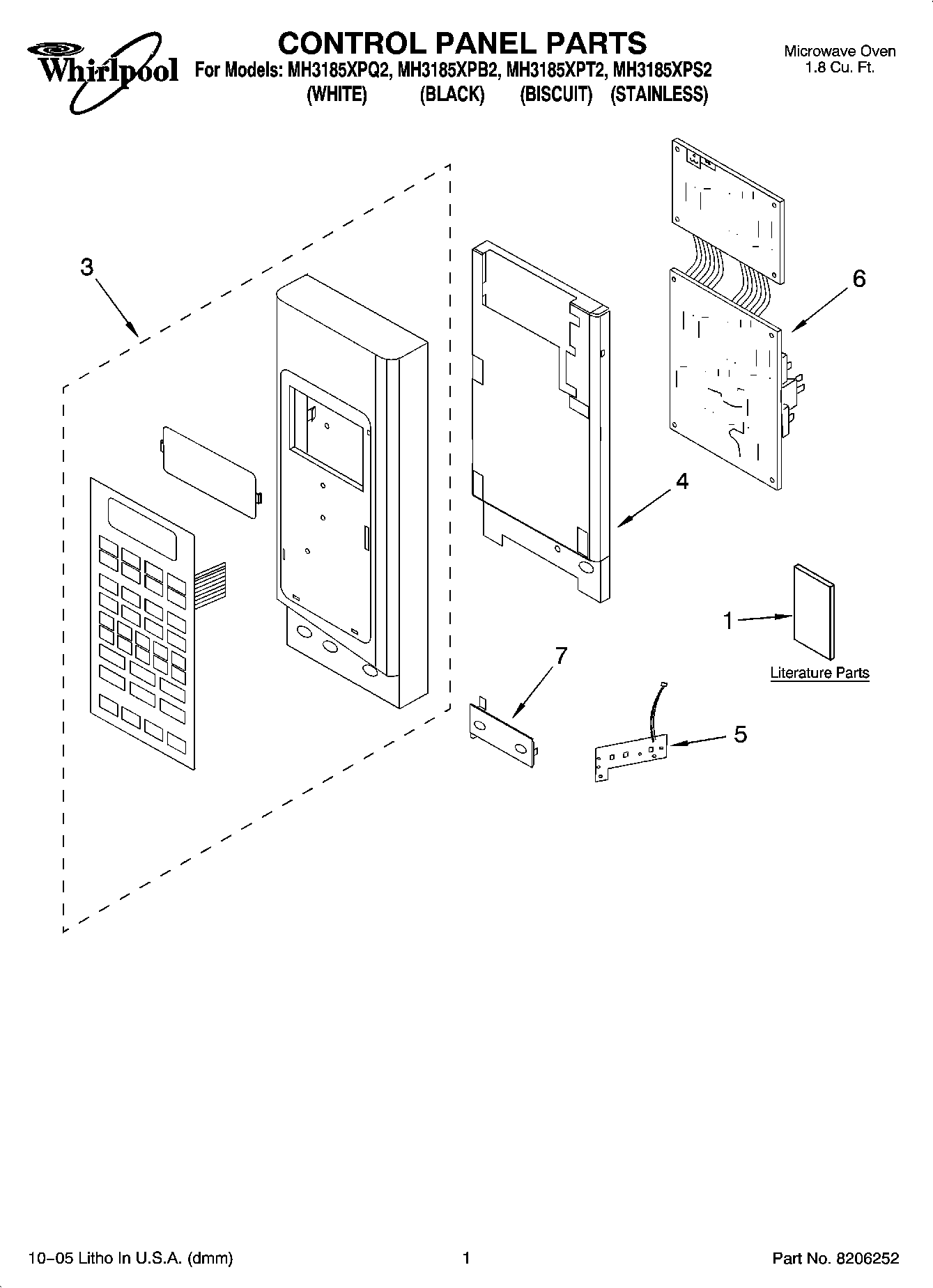

MH3185XPQ2 01 – CONTROL PANEL PARTS

MH3185XPQ2 01 – CONTROL PANEL PARTS

Written by

in

MH3185XPQ2 01 – CONTROL PANEL PARTS

Products

PositionProduct
1Tech Sheet
1Tech Sheet, Insert
1Instructn, Install
1U & C Guide
1Cook Guide Label
3Panel Asy, Control Includes Lens and Membrane Switch (Biscuit)
3Panel Asy, Control Includes Lens and Membrane Switch (Black)
3Panel Asy, Control Includes Lens and Membrane Switch (Stainless)
3Panel Asy, Control Includes Lens and Membrane Switch (White)
4Bracket, Control
5Button, PCB Assy
6Microcomputer
7Pushbutton
