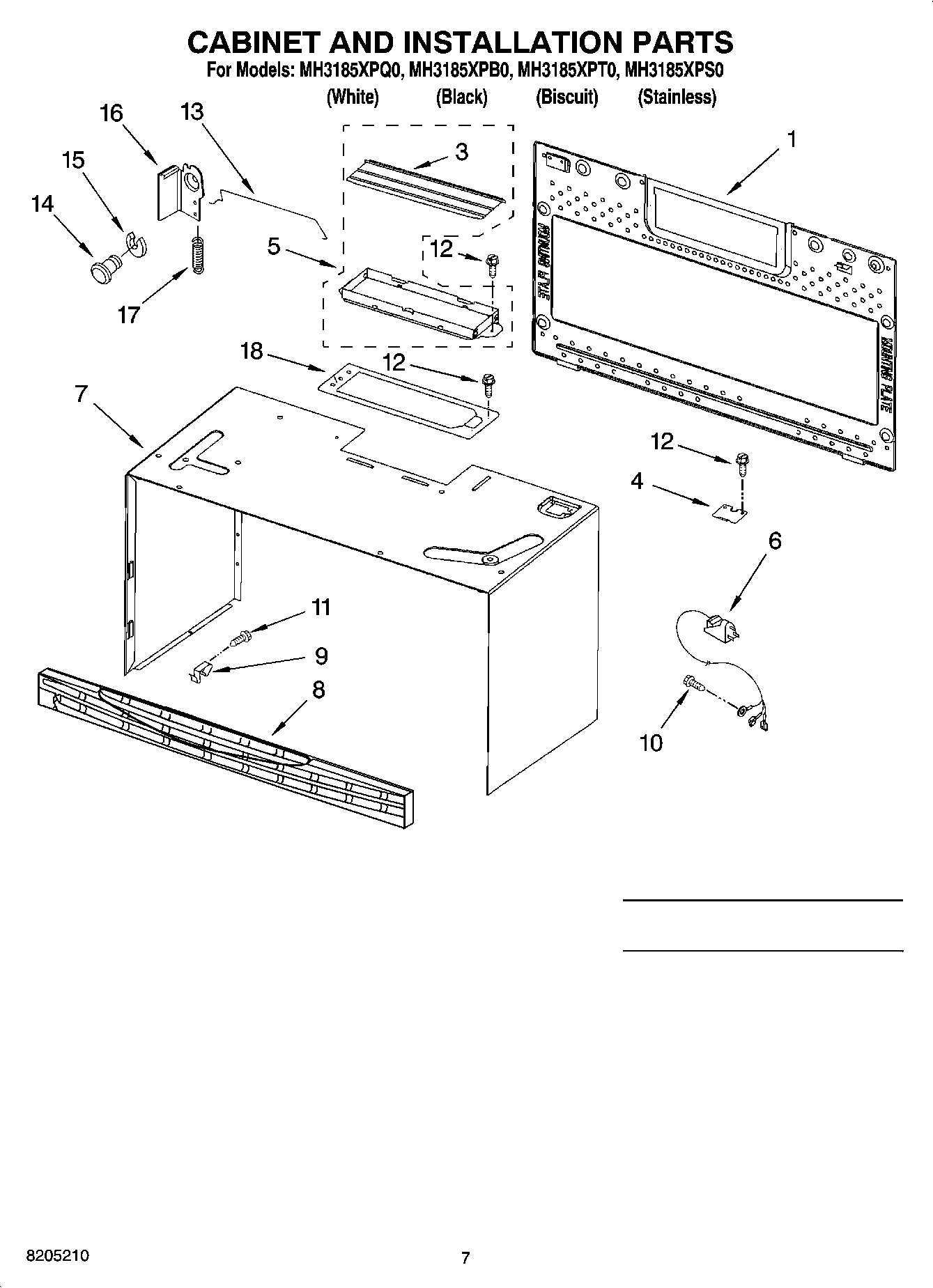

MH3185XPT0 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
1Plate, Mounting
3W10843943 Whirlpool Microwave Vent Damper
4Lid, Power Cord
6W10708076 Whirlpool Microwave Power Cord
7Case, Outer
7Case, Outer (Biscuit)
7Case, Outer (White)
8Grille, Vent (Biscuit)
8Grille, Vent (Black)
8Grille, Vent (White)
9W10615742 Whirlpool Microwave Clip
104393836 Whirlpool Microwave Screw
11Screw
12W11380570 Whirlpool Microwave Screw
13Rod
14Latch, Pivot
15E-Ring
16Catch
17Spring
18WP8169704 Whirlpool Screw
18W10539840 Whirlpool Microwave Wire Harness
188205262RB Whirlpool Refrigerator Crusher Blade #2
18Template, Upper
18Hardware, Installation
18Lamp/Turntable Wire Assembly
18Main Harness
18H.V. Wire Assy
18Plate, Damper
18Template, Wall
18FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous
