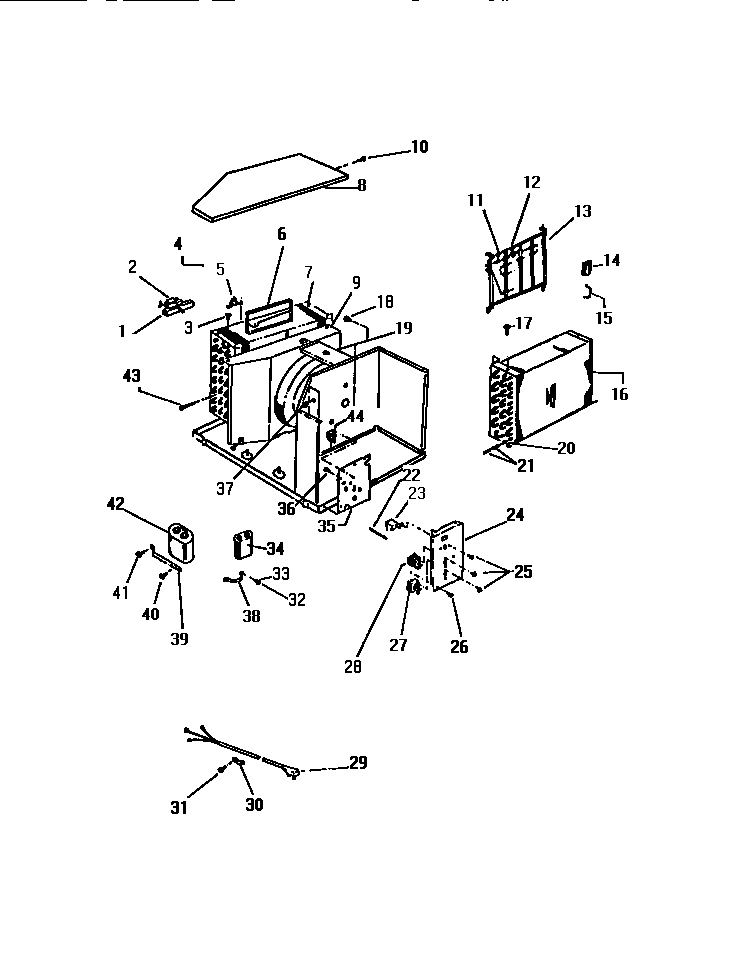

MH413B2RA 03 – CONTROLS

Products

Position	Product
1	WCI G515824
2	WCI G505546
4	NUT-MOTOR MTG ( 3 )
5	WCI G516324
6	WCI G160146
7	CONDENSER
8	WCI G519696
9	WCI G518429
11	FUSE-THERMAL
12	WCI G503335
13	WCI G505411
14	WCI G136533
15	RETAINER
16	WCI G516370
18	SCREW-MTR GRD
19	WCI G518497-02
20	WCI G148416-07
21	CAPILLARY TUBE
22	WCI G506431
23	WCI G506434
24	WCI G518026
25	SCREW-CNTL (6)
27	SWITCH – 8 POSITION (NON-ILLUSTRATED)
28	WCI G519921
29	WCI G506345-64
30	CLAMP – SERVICE CORD
31	SCREW-CLAMP
33	NUT – MOTOR MTG.
34	WCI G508501-13
35	BRACKET-SUPPORT (NON-ILLUSTRATED)
36	154419403 Frigidaire Dishwasher Screw
37	BUSHING – UNIVERSAL
38	CLAMP-CAPAC
39	STRAP-CAPACITOR
40	WCI G516352
41	SCREW-STRAP
42	WCI G516483-07
43	STRAINER-FILTER
44	WCI G118751
