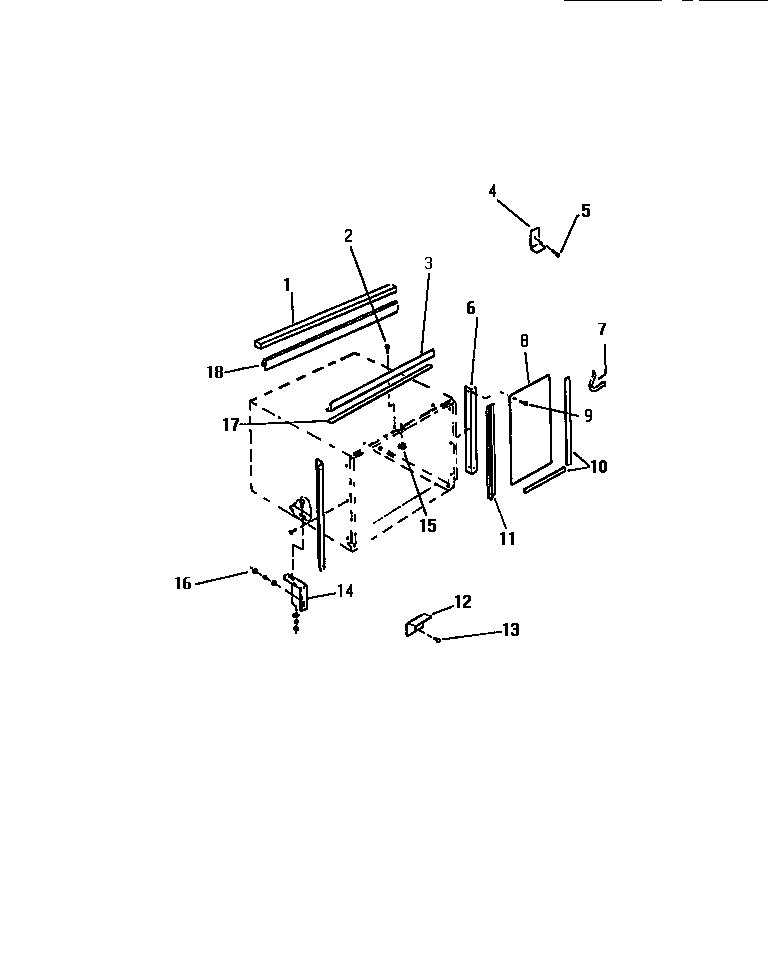

MH413B2RA 05 – WINDOW MOUNTING PARTS

Written by

Products

Position	Product
1	SEAL-WINDOW SACH
2	SCRW NO. 10 X 3/8 (3)
3	MEMBR-TP FRAME
4	BRACKET-BASE
5	WCI G100773
6	MEMBR-SIDE FRAME (2)
7	WCI G117313
8	WINDOW PANEL
9	154419403 Frigidaire Dishwasher Screw
10	SEAL-SIDES & BTM
11	WCI G149182-05
12	BRKT-SILL SUPT (2)
13	WCI G100824
14	BRKT-TRACK SUPT (2)
15	NUT NO. 10 (3)
16	NUT-MOTOR MTG
17	SEAL-TOP FRAME
18	WCI G149356-05
